Measurement E83M15

You are not logged in.

Experiment: E93-017 CLAS Experiment, 0

Spokespersons: M. Mirazita

Measurement comment: Angular distributions of the photodisintegration cross section for angle between 150 and 160 degrees in the CM.

Publication:

Quantity measured: dσ/dΩ, nb/sterad
Differential cross section.
Beam: γ, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p n, polarization: none

W : 0.56 — 2.886 GeV
xb : 0

Observable quantity measured (Y axis): dσ/dΩ, nb/sterad

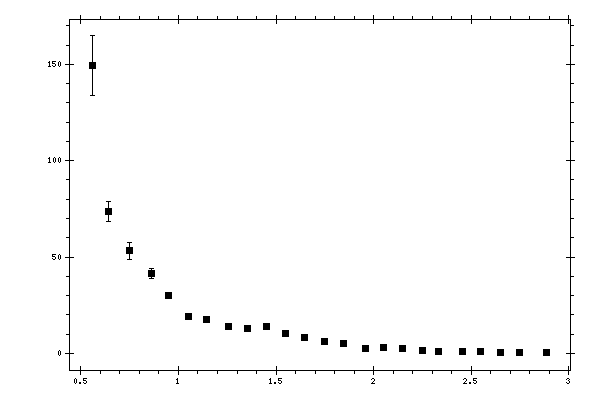

Plot measurement data

Parameter (X axis): Eγ, GeV

Click here to get data in text file, delimited with tabs.

Measured data:

Eγ,
GeV
dσ/dΩ,
nb/sterad
Data errors,
nb/sterad
0.56 149.2 15.6
0.641 73.75 5.31
0.75 53.32 4.45
0.864 41.52 2.42
0.95 29.99 1.44
1.052 19.28 1.13
1.142 17.35 0.96
1.254 13.96 0.84
1.355 13.15 0.8
1.449 13.71 0.79
1.548 10.5 0.7
1.648 8.05 0.59
1.751 5.99 0.51
1.845 4.9 0.48
1.959 2.49 0.35
2.051 3.1 0.38
2.147 2.38 0.34
2.25 1.62 0.28
2.331 1.05 0.29
2.458 0.832 0.343
2.548 1.08 0.39
2.651 0.325 0.189
2.749 0.535 0.276
2.886 0.516 0.197
