CLAS Physics Database

Measurement E1M187

You are not logged in.

Experiment: E93-006 CLAS experiment, 2003

Spokespersons: V. D. Burkert, M. Ripani

Publication:

• M. Ripani, V. D. Burkert, V. I. Mokeev, M. Battaglieri, R. De Vita, E. Golovach, V. Tauti, and CLAS Collaboration Measurement of ep->e'p pi+pi- and Baryon Resonance Analysis // Phys. Rev. Let. 91, 022002 (2003)

Quantity measured: dσ/dψ(π⁻), mcbn/rad
Differential cross section, where ψ(π⁻) is out-of-plane angle of p and π⁺ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π⁺π⁻p, polarization: none

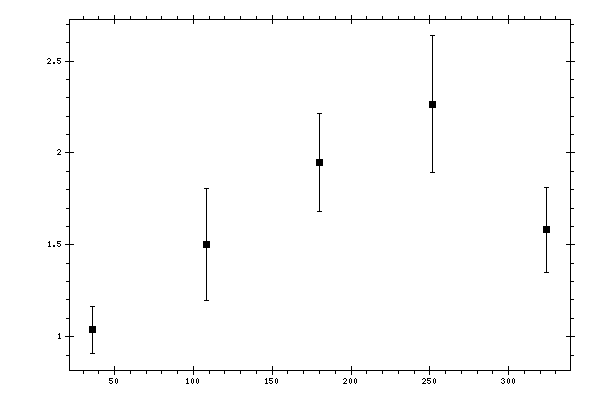

Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad Parameter (X axis): ψ(π−), deg

Click here to get data in text file, delimited with tabs.

Measured data:
