Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: E93-006 CLAS experiment, 2003
Spokespersons: V. D. Burkert, M. Ripani
Publication:
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 1.1 — 1.5 GeV2 |
|---|---|
| W : | 1.425 — 1.45 GeV |
| xb : | 0.5154 — 0.5306 |
|
Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.

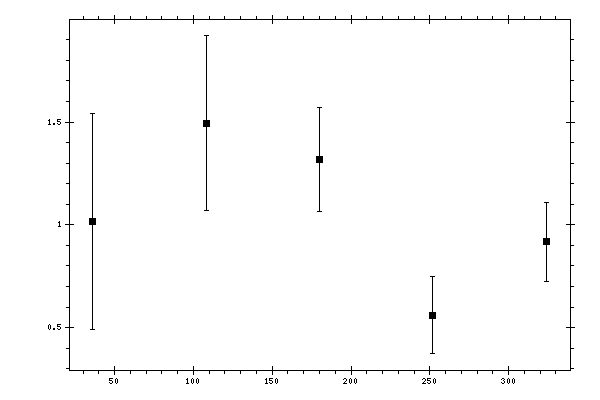

Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Data errors,
mcbn/rad |
Systematic errors,
mcbn/rad |
|---|---|---|---|
| 36 | 1.0147008 | 0.5250079 | 0 |
| 108 | 1.4940664 | 0.42505515 | 0 |
| 180 | 1.3166703 | 0.25377679 | 0 |
| 251.99998 | 0.56104839 | 0.18520597 | 0 |
| 324 | 0.9171536 | 0.19354102 | 0 |
