Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E93-006 CLAS experiment, 2003
Spokespersons: V. D. Burkert, M. Ripani
Publication:
Quantity measured: dσ/d(−cos(θ(π+))), mcbn/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 1.1 — 1.5 GeV2 |
|---|---|
| W : | 1.425 — 1.45 GeV |
| xb : | 0.5154 — 0.5306 |
|

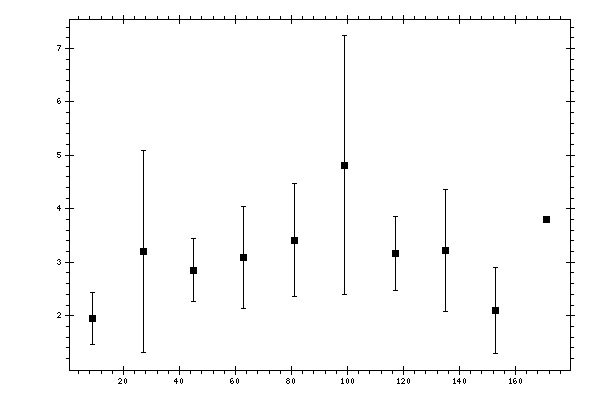

Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcbn/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcbn/rad |
Data errors,
mcbn/rad |
Systematic errors,
mcbn/rad |
|---|---|---|---|
| 9 | 1.9499958 | 0.49298733 | 0 |
| 27 | 3.2018485 | 1.8865844 | 0 |
| 45 | 2.8496542 | 0.58894384 | 0 |
| 63 | 3.0888724 | 0.94566 | 0 |
| 81 | 3.4161847 | 1.0548723 | 0 |
| 98.99999 | 4.8180232 | 2.4165537 | 0 |
| 117 | 3.1644044 | 0.68788111 | 0 |
| 135 | 3.2217274 | 1.1365331 | 0 |
| 153 | 2.0979698 | 0.79742682 | 0 |
| 171 | 3.7926495 | 0 | 0 |
