Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E93-006 CLAS experiment, 2003
Spokespersons: V. D. Burkert, M. Ripani
Publication:
Quantity measured: dσ/d(−cos(θ(π+))), mcbn/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 0.5 — 0.8 GeV2 |
|---|---|
| W : | 1.45 — 1.475 GeV |
| xb : | 0.3341 — 0.3472 |
|

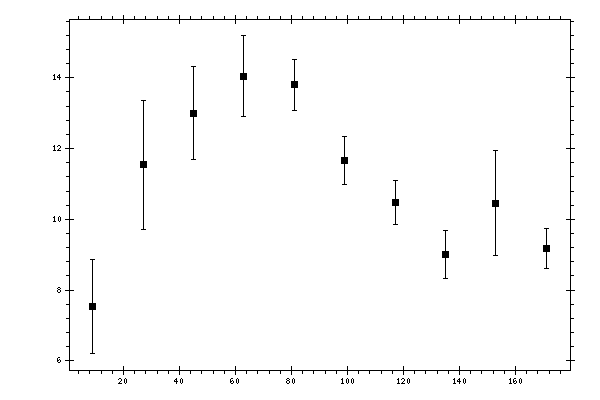

Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcbn/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcbn/rad |
Data errors,
mcbn/rad |
Systematic errors,
mcbn/rad |
|---|---|---|---|
| 9 | 7.5466166 | 1.3299677 | 0 |
| 27 | 11.536626 | 1.8330555 | 0 |
| 45 | 13.003794 | 1.3052779 | 0 |
| 63 | 14.048812 | 1.1374977 | 0 |
| 81 | 13.804413 | 0.71656436 | 0 |
| 98.99999 | 11.655017 | 0.67974675 | 0 |
| 117 | 10.485993 | 0.62110037 | 0 |
| 135 | 9.0000753 | 0.67628306 | 0 |
| 153 | 10.453654 | 1.4798478 | 0 |
| 171 | 9.1726141 | 0.55743855 | 0 |
