Parameter (X axis): θ(π−), dimensionless
You are not logged in.
Experiment: E93-006 CLAS experiment, 2003
Spokespersons: V. D. Burkert, M. Ripani
Publication:
Quantity measured: dσ/d(−cos(θ(π−))), mcbn/rad
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 1.1 — 1.5 GeV2 |
|---|---|
| W : | 1.55 — 1.575 GeV |
| xb : | 0.4482 — 0.4606 |
|

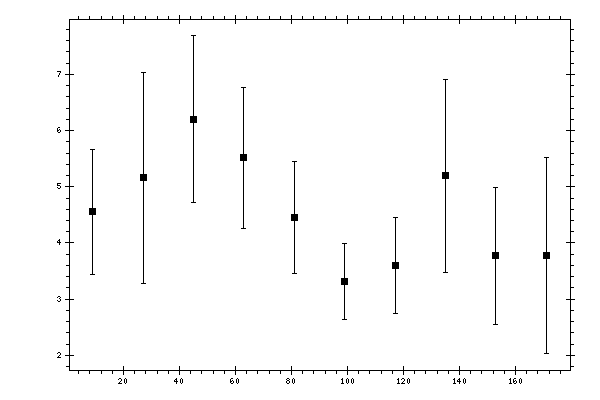

Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcbn/rad
Parameter (X axis): θ(π−), dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(π−),
dimensionless |
dσ/d(−cos(θ(π−))),
mcbn/rad |
Data errors,
mcbn/rad |
Systematic errors,
mcbn/rad |
|---|---|---|---|
| 9 | 4.5534492 | 1.1090782 | 0 |
| 27 | 5.1580768 | 1.8747165 | 0 |
| 45 | 6.1985178 | 1.4872497 | 0 |
| 63 | 5.5123482 | 1.2500592 | 0 |
| 81 | 4.449101 | 0.99550414 | 0 |
| 98.99999 | 3.3118556 | 0.67006457 | 0 |
| 117 | 3.601402 | 0.85654134 | 0 |
| 135 | 5.1927056 | 1.7118266 | 0 |
| 153 | 3.7736859 | 1.2194769 | 0 |
| 171 | 3.776397 | 1.7372549 | 0 |
