Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E93-006 CLAS experiment, 2003
Spokespersons: V. D. Burkert, M. Ripani
Publication:
Quantity measured: dσ/d(−cos(θ(π+))), mcbn/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 1.1 — 1.5 GeV2 |
|---|---|
| W : | 1.55 — 1.575 GeV |
| xb : | 0.4482 — 0.4606 |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcbn/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

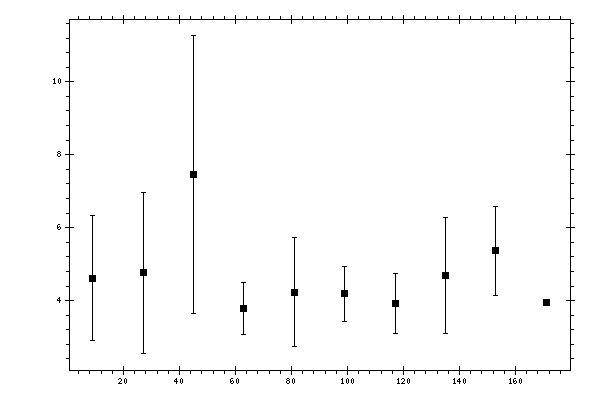

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcbn/rad |
Data errors,
mcbn/rad |
Systematic errors,
mcbn/rad |
|---|---|---|---|
| 9 | 4.6123576 | 1.7179246 | 0 |
| 27 | 4.7592211 | 2.1992078 | 0 |
| 45 | 7.4533443 | 3.8067842 | 0 |
| 63 | 3.790869 | 0.71973407 | 0 |
| 81 | 4.2336998 | 1.4941448 | 0 |
| 98.99999 | 4.1895366 | 0.75496888 | 0 |
| 117 | 3.918927 | 0.81870389 | 0 |
| 135 | 4.6867824 | 1.5833073 | 0 |
| 153 | 5.3646245 | 1.2281209 | 0 |
| 171 | 3.9534118 | 0 | 0 |
