Experiment: g2a run CLAS data, 1999
Spokespersons: N/A
Experiment comment: Results are presented for 8 different binnings (4 Eγ binnings x 2 cos(θ)dcm binnings). Lower and upper limits of the Eγ and cos(θ)dcm bins are shown. Centroids of the Eγ bins are also shown.
Measurement comment: -0.7 < cos(θ)dcm < -0.6
Publication:
Quantity measured: dσ/dΩ, mcb/sr
Differential cross section.
Beam: γ, polarization: circular
Target: d (Z=1, A=2), polarization: none
Final state: π0d, polarization: none
Eγ : | 0.9875 — 2.3125 GeV |
---|

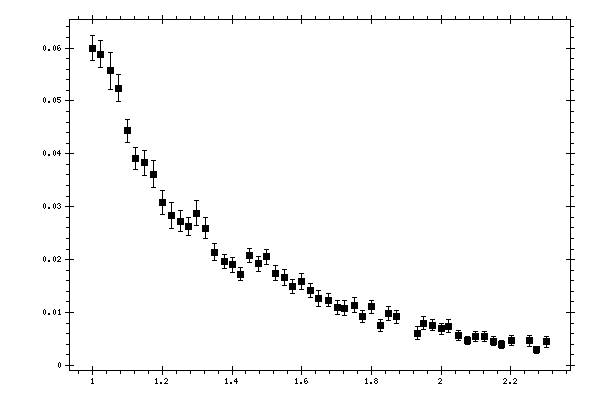

Observable quantity measured (Y axis): dσ/dΩ, mcb/sr
Parameter (X axis): Eγ, GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
Eγ,
GeV |
dσ/dΩ,
mcb/sr |
Data errors,
mcb/sr |
Systematic errors,
mcb/sr |
Full errors,
mcb/sr |
---|---|---|---|---|
1.00025 | 0.059935 | 0.002362 | 0.000735 | 0.002473 |
1.02274 | 0.058855 | 0.002526 | 0.000486 | 0.002572 |
1.05139 | 0.055684 | 0.003462 | 0.000659 | 0.003524 |
1.07563 | 0.052427 | 0.0025 | 0.000435 | 0.002537 |
1.10121 | 0.044333 | 0.002216 | 0.000681 | 0.002318 |
1.1226 | 0.039171 | 0.002051 | 0.000382 | 0.002086 |
1.14853 | 0.038267 | 0.002382 | 0.000375 | 0.002411 |
1.17418 | 0.03618 | 0.00255 | 0.000365 | 0.002576 |
1.20083 | 0.030793 | 0.002193 | 0.000445 | 0.002238 |
1.22651 | 0.028414 | 0.002467 | 0.000431 | 0.002504 |
1.25104 | 0.027291 | 0.001951 | 0.000317 | 0.001977 |
1.2753 | 0.026308 | 0.001738 | 0.000366 | 0.001776 |
1.29677 | 0.028807 | 0.002292 | 0.000268 | 0.002307 |
1.32508 | 0.025942 | 0.002038 | 0.000212 | 0.002049 |
1.35031 | 0.021367 | 0.001612 | 0.000185 | 0.001623 |
1.37691 | 0.019599 | 0.001339 | 0.00018 | 0.001351 |
1.40048 | 0.019061 | 0.001416 | 0.0002 | 0.00143 |
1.42468 | 0.017202 | 0.001215 | 0.000177 | 0.001228 |
1.4495 | 0.020748 | 0.001379 | 0.000172 | 0.001389 |
1.47483 | 0.019206 | 0.001393 | 0.000165 | 0.001403 |
1.50005 | 0.020524 | 0.001376 | 0.000165 | 0.001386 |
1.52341 | 0.017428 | 0.001444 | 0.000164 | 0.001453 |
1.54965 | 0.016611 | 0.001578 | 0.000146 | 0.001585 |
1.57278 | 0.014952 | 0.00137 | 0.000128 | 0.001376 |
1.59982 | 0.015853 | 0.001482 | 0.000188 | 0.001494 |
1.62445 | 0.014125 | 0.001345 | 0.000122 | 0.001351 |
1.64804 | 0.012648 | 0.001558 | 0.000127 | 0.001563 |
1.67707 | 0.012358 | 0.001211 | 0.000115 | 0.001216 |
1.70285 | 0.010925 | 0.001365 | 0.000104 | 0.001369 |
1.72166 | 0.010838 | 0.00141 | 0.000121 | 0.001415 |
1.75083 | 0.011337 | 0.001413 | 9.6e-05 | 0.001416 |
1.77346 | 0.009201 | 0.001109 | 8.8e-05 | 0.001112 |
1.7988 | 0.011069 | 0.001215 | 9.6e-05 | 0.001219 |
1.82503 | 0.007484 | 0.001105 | 6.3e-05 | 0.001106 |
1.84948 | 0.009797 | 0.001254 | 0.000118 | 0.00126 |
1.87261 | 0.009201 | 0.001184 | 7.6e-05 | 0.001186 |
1.93136 | 0.006095 | 0.001273 | 4.8e-05 | 0.001274 |
1.94977 | 0.008007 | 0.00116 | 0.000136 | 0.001168 |
1.97506 | 0.007631 | 0.001037 | 6.6e-05 | 0.001039 |
1.99983 | 0.006908 | 0.001094 | 6.7e-05 | 0.001096 |
2.02208 | 0.007442 | 0.001217 | 7.3e-05 | 0.001219 |
2.04935 | 0.005692 | 0.000977 | 6.1e-05 | 0.000979 |
2.07481 | 0.004686 | 0.000787 | 6.2e-05 | 0.00079 |
2.09927 | 0.005452 | 0.000944 | 4.3e-05 | 0.000945 |
2.12481 | 0.005494 | 0.000945 | 4.3e-05 | 0.000946 |
2.14908 | 0.004579 | 0.000879 | 0.000178 | 0.000897 |
2.17321 | 0.003953 | 0.000831 | 0.00018 | 0.00085 |
2.20112 | 0.004713 | 0.000867 | 7e-05 | 0.00087 |
2.25199 | 0.004638 | 0.001004 | 3.7e-05 | 0.001004 |
2.27441 | 0.002978 | 0.000657 | 2.4e-05 | 0.000657 |
2.30139 | 0.004456 | 0.001027 | 3.5e-05 | 0.001027 |
