Parameter (X axis): Eγ, GeV
You are not logged in.
Experiment: g2a run CLAS data, 1999
Spokespersons: N/A
Experiment comment: Results are presented for 8 different binnings (4 Eγ binnings x 2 cos(θ)dcm binnings). Lower and upper limits of the Eγ and cos(θ)dcm bins are shown. Centroids of the Eγ bins are also shown.
Measurement comment: 0.15 < cos(θ)dcm < 0.25
Publication:
Quantity measured: dσ/dΩ, mcb/sr
Differential cross section.
Beam: γ, polarization: circular
Target: d (Z=1, A=2), polarization: none
Final state: π0d, polarization: none
| Eγ : | 0.5 — 1.45 GeV |
|---|
|

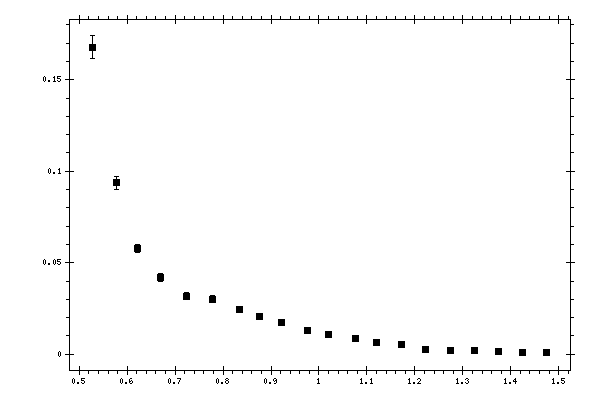

Observable quantity measured (Y axis): dσ/dΩ, mcb/sr
Parameter (X axis): Eγ, GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
Eγ,
GeV |
dσ/dΩ,
mcb/sr |
Stat. error,
mcb/sr |
Syst. error,
mcb/sr |
Total error,
mcb/sr |
|---|---|---|---|---|
| 0.52803 | 0.167724 | 0.006295 | 0.000286 | 0.006302 |
| 0.57673 | 0.093814 | 0.003515 | 0.000312 | 0.003529 |
| 0.62254 | 0.05776 | 0.002181 | 0.000152 | 0.002186 |
| 0.66946 | 0.041968 | 0.002237 | 0.000113 | 0.00224 |
| 0.7245 | 0.031821 | 0.001871 | 0.000124 | 0.001875 |
| 0.77803 | 0.030184 | 0.002017 | 8.4e-05 | 0.002019 |
| 0.83525 | 0.024655 | 0.001536 | 4.6e-05 | 0.001537 |
| 0.87509 | 0.020461 | 0.00101 | 6.4e-05 | 0.001012 |
| 0.9215 | 0.01711 | 0.000942 | 4.6e-05 | 0.000944 |
| 0.97571 | 0.013208 | 0.000784 | 5.7e-05 | 0.000786 |
| 1.0204 | 0.010662 | 0.000824 | 4e-05 | 0.000825 |
| 1.07684 | 0.008414 | 0.000717 | 5.9e-05 | 0.000719 |
| 1.11947 | 0.00656 | 0.000564 | 2.5e-05 | 0.000564 |
| 1.17191 | 0.005124 | 0.000654 | 2.6e-05 | 0.000654 |
| 1.2231 | 0.002617 | 0.000453 | 3e-06 | 0.000453 |
| 1.27455 | 0.002084 | 0.000344 | 2e-06 | 0.000344 |
| 1.32347 | 0.001819 | 0.000362 | 2e-06 | 0.000362 |
| 1.37426 | 0.001424 | 0.000258 | 1e-05 | 0.000259 |
| 1.42506 | 0.000838 | 0.000207 | 1e-06 | 0.000207 |
| 1.47411 | 0.000816 | 0.000214 | 2.3e-05 | 0.000215 |
