Parameter (X axis): Eγ, GeV
You are not logged in.
Experiment: g2a run CLAS data, 1999
Spokespersons: N/A
Experiment comment: Results are presented for 8 different binnings (4 Eγ binnings x 2 cos(θ)dcm binnings). Lower and upper limits of the Eγ and cos(θ)dcm bins are shown. Centroids of the Eγ bins are also shown.
Measurement comment: 0.25 < cos(θ)dcm < 0.35
Publication:
Quantity measured: dσ/dΩ, mcb/sr
Differential cross section.
Beam: γ, polarization: circular
Target: d (Z=1, A=2), polarization: none
Final state: π0d, polarization: none
| Eγ : | 0.5 — 1.45 GeV |
|---|
|
Observable quantity measured (Y axis): dσ/dΩ, mcb/sr
Parameter (X axis): Eγ, GeV |
Click here to get data in text file, delimited with tabs.

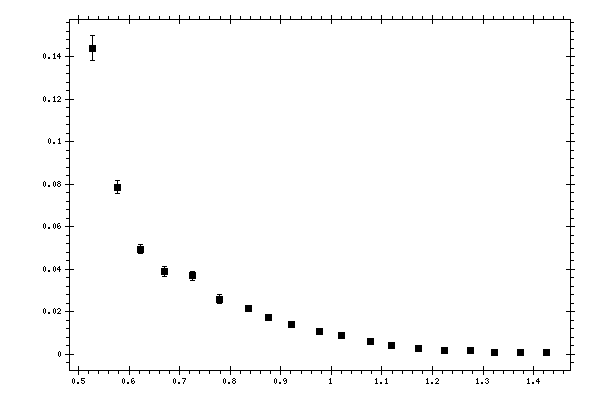

Measured data:
|
Eγ,
GeV |
dσ/dΩ,
mcb/sr |
Stat. error,
mcb/sr |
Syst. error,
mcb/sr |
Total error,
mcb/sr |
|---|---|---|---|---|
| 0.52803 | 0.14403 | 0.005756 | 0.000672 | 0.005795 |
| 0.57673 | 0.078664 | 0.003208 | 0.000614 | 0.003266 |
| 0.62254 | 0.049389 | 0.00215 | 0.000202 | 0.002159 |
| 0.66946 | 0.039191 | 0.00239 | 0.00019 | 0.002398 |
| 0.7245 | 0.036911 | 0.002171 | 0.000177 | 0.002178 |
| 0.77803 | 0.026035 | 0.002039 | 0.00018 | 0.002047 |
| 0.83525 | 0.021579 | 0.001477 | 8.4e-05 | 0.00148 |
| 0.87509 | 0.01734 | 0.000937 | 7.5e-05 | 0.00094 |
| 0.9215 | 0.014061 | 0.000831 | 5.8e-05 | 0.000833 |
| 0.97571 | 0.010592 | 0.000659 | 5.6e-05 | 0.000661 |
| 1.0204 | 0.008797 | 0.000704 | 3.8e-05 | 0.000705 |
| 1.07684 | 0.005883 | 0.000558 | 3.3e-05 | 0.000559 |
| 1.11947 | 0.004164 | 0.000421 | 5e-05 | 0.000424 |
| 1.17191 | 0.002983 | 0.000481 | 2.6e-05 | 0.000482 |
| 1.2231 | 0.001686 | 0.000357 | 4.3e-05 | 0.00036 |
| 1.27455 | 0.001813 | 0.000318 | 1.4e-05 | 0.000318 |
| 1.32347 | 0.001117 | 0.000278 | 4e-06 | 0.000278 |
| 1.37426 | 0.001055 | 0.00022 | 4e-06 | 0.00022 |
| 1.42506 | 0.000826 | 0.000201 | 3e-06 | 0.000201 |
