Parameter (X axis): Eγ, GeV
You are not logged in.
Experiment: g2a run CLAS data, 1999
Spokespersons: N/A
Experiment comment: Results are presented for 8 different binnings (4 Eγ binnings x 2 cos(θ)dcm binnings). Lower and upper limits of the Eγ and cos(θ)dcm bins are shown. Centroids of the Eγ bins are also shown.
Measurement comment: 0.05 < cos(θ)dcm < 0.15
Publication:
Quantity measured: dσ/dΩ, mcb/sr
Differential cross section.
Beam: γ, polarization: circular
Target: d (Z=1, A=2), polarization: none
Final state: π0d, polarization: none
| Eγ : | 0.475 — 1.425 GeV |
|---|
|

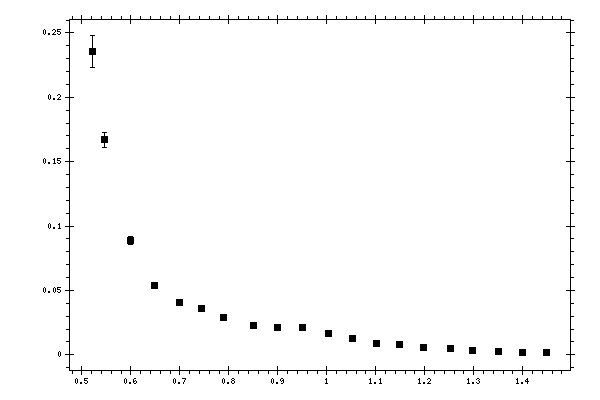

Observable quantity measured (Y axis): dσ/dΩ, mcb/sr
Parameter (X axis): Eγ, GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
Eγ,
GeV |
dσ/dΩ,
mcb/sr |
Data errors,
mcb/sr |
Systematic errors,
mcb/sr |
Full errors,
mcb/sr |
|---|---|---|---|---|
| 0.5219 | 0.235502 | 0.012234 | 0.001186 | 0.012291 |
| 0.54643 | 0.166915 | 0.005583 | 0.000996 | 0.005671 |
| 0.59836 | 0.088772 | 0.002975 | 0.000474 | 0.003012 |
| 0.64789 | 0.053485 | 0.002218 | 0.000254 | 0.002233 |
| 0.69826 | 0.040746 | 0.002341 | 0.000264 | 0.002356 |
| 0.74417 | 0.035985 | 0.002159 | 0.000177 | 0.002166 |
| 0.78862 | 0.02878 | 0.002111 | 0.000168 | 0.002118 |
| 0.8494 | 0.022575 | 0.001045 | 0.000129 | 0.001052 |
| 0.89955 | 0.021397 | 0.000947 | 0.000117 | 0.000954 |
| 0.95091 | 0.021148 | 0.001003 | 9.5e-05 | 0.001008 |
| 1.00283 | 0.016313 | 0.000827 | 8.5e-05 | 0.000832 |
| 1.05324 | 0.012409 | 0.000927 | 6.9e-05 | 0.000929 |
| 1.10114 | 0.009017 | 0.000598 | 5e-05 | 0.0006 |
| 1.1483 | 0.007806 | 0.000738 | 6.3e-05 | 0.00074 |
| 1.19695 | 0.005351 | 0.000683 | 4.1e-05 | 0.000684 |
| 1.25355 | 0.004602 | 0.000552 | 4.3e-05 | 0.000554 |
| 1.29707 | 0.003547 | 0.000542 | 4.3e-05 | 0.000543 |
| 1.34967 | 0.002632 | 0.000403 | 1.7e-05 | 0.000403 |
| 1.39917 | 0.00176 | 0.000313 | 4.1e-05 | 0.000316 |
| 1.44826 | 0.001576 | 0.000293 | 1.7e-05 | 0.000294 |
