Parameter (X axis): Eγ, GeV
You are not logged in.
Experiment: g2a run CLAS data, 1999
Spokespersons: N/A
Experiment comment: Results are presented for 8 different binnings (4 Eγ binnings x 2 cos(θ)dcm binnings). Lower and upper limits of the Eγ and cos(θ)dcm bins are shown. Centroids of the Eγ bins are also shown.
Measurement comment: 0.15 < cos(θ)dcm < 0.25
Publication:
Quantity measured: dσ/dΩ, mcb/sr
Differential cross section.
Beam: γ, polarization: circular
Target: d (Z=1, A=2), polarization: none
Final state: π0d, polarization: none
| Eγ : | 0.475 — 1.525 GeV |
|---|
|

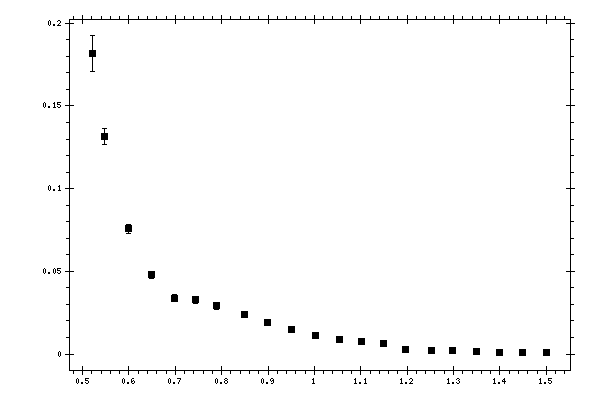

Observable quantity measured (Y axis): dσ/dΩ, mcb/sr
Parameter (X axis): Eγ, GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
Eγ,
GeV |
dσ/dΩ,
mcb/sr |
Data errors,
mcb/sr |
Systematic errors,
mcb/sr |
Full errors,
mcb/sr |
|---|---|---|---|---|
| 0.5219 | 0.181766 | 0.010647 | 0.001 | 0.010693 |
| 0.54643 | 0.13133 | 0.004795 | 0.000731 | 0.00485 |
| 0.59836 | 0.075684 | 0.002684 | 0.000214 | 0.002693 |
| 0.64789 | 0.04796 | 0.002093 | 0.000153 | 0.002099 |
| 0.69826 | 0.033841 | 0.002133 | 0.000151 | 0.002138 |
| 0.74417 | 0.032902 | 0.002105 | 0.000137 | 0.00211 |
| 0.78862 | 0.029056 | 0.002188 | 0.000104 | 0.002191 |
| 0.8494 | 0.023629 | 0.001138 | 3.6e-05 | 0.001139 |
| 0.89955 | 0.019039 | 0.000949 | 5.4e-05 | 0.000951 |
| 0.95091 | 0.014766 | 0.000876 | 7.7e-05 | 0.00088 |
| 1.00283 | 0.011443 | 0.000731 | 3.9e-05 | 0.000732 |
| 1.05324 | 0.008934 | 0.000852 | 4.7e-05 | 0.000854 |
| 1.10114 | 0.007269 | 0.000571 | 4e-05 | 0.000572 |
| 1.1483 | 0.006437 | 0.000694 | 1.3e-05 | 0.000694 |
| 1.19695 | 0.002818 | 0.000495 | 1.8e-05 | 0.000495 |
| 1.25355 | 0.002348 | 0.000377 | 8e-06 | 0.000377 |
| 1.29707 | 0.002135 | 0.000399 | 2e-06 | 0.000399 |
| 1.34967 | 0.001643 | 0.000297 | 2.2e-05 | 0.000298 |
| 1.39917 | 0.000975 | 0.000224 | 4.2e-05 | 0.000228 |
| 1.44826 | 0.000845 | 0.000204 | 2.1e-05 | 0.000205 |
| 1.50009 | 0.000712 | 0.000189 | 1e-06 | 0.000189 |
