Parameter (X axis): Eγ, GeV
You are not logged in.
Experiment: g2a run CLAS data, 1999
Spokespersons: N/A
Experiment comment: Results are presented for 8 different binnings (4 Eγ binnings x 2 cos(θ)dcm binnings). Lower and upper limits of the Eγ and cos(θ)dcm bins are shown. Centroids of the Eγ bins are also shown.
Measurement comment: 0.25 < cos(θ)dcm < 0.35
Publication:
Quantity measured: dσ/dΩ, mcb/sr
Differential cross section.
Beam: γ, polarization: circular
Target: d (Z=1, A=2), polarization: none
Final state: π0d, polarization: none
| Eγ : | 0.475 — 1.425 GeV |
|---|
|

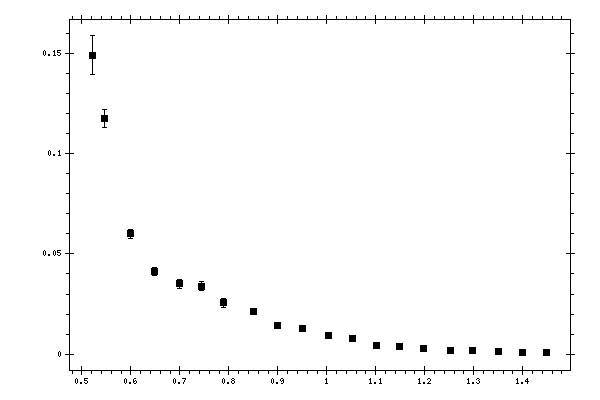

Observable quantity measured (Y axis): dσ/dΩ, mcb/sr
Parameter (X axis): Eγ, GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
Eγ,
GeV |
dσ/dΩ,
mcb/sr |
Data errors,
mcb/sr |
Systematic errors,
mcb/sr |
Full errors,
mcb/sr |
|---|---|---|---|---|
| 0.5219 | 0.149256 | 0.00959 | 0.00062 | 0.00961 |
| 0.54643 | 0.11752 | 0.004507 | 0.00056 | 0.004542 |
| 0.59836 | 0.060003 | 0.002428 | 0.000288 | 0.002445 |
| 0.64789 | 0.041324 | 0.002103 | 0.000201 | 0.002113 |
| 0.69826 | 0.035012 | 0.002277 | 0.000183 | 0.002284 |
| 0.74417 | 0.033815 | 0.002312 | 0.000226 | 0.002323 |
| 0.78862 | 0.025534 | 0.002235 | 0.000252 | 0.002249 |
| 0.8494 | 0.021126 | 0.00111 | 9.2e-05 | 0.001114 |
| 0.89955 | 0.014347 | 0.000797 | 8.8e-05 | 0.000802 |
| 0.95091 | 0.012889 | 0.000785 | 5.3e-05 | 0.000787 |
| 1.00283 | 0.009144 | 0.000616 | 4.8e-05 | 0.000618 |
| 1.05324 | 0.00758 | 0.000739 | 3.9e-05 | 0.00074 |
| 1.10114 | 0.004276 | 0.000402 | 4.7e-05 | 0.000405 |
| 1.1483 | 0.003791 | 0.000509 | 4.6e-05 | 0.000511 |
| 1.19695 | 0.002594 | 0.000461 | 1.8e-05 | 0.000462 |
| 1.25355 | 0.001766 | 0.000324 | 3.4e-05 | 0.000326 |
| 1.29707 | 0.001639 | 0.000343 | 6.1e-05 | 0.000349 |
| 1.34967 | 0.001228 | 0.000255 | 6.7e-05 | 0.000264 |
| 1.39917 | 0.000669 | 0.000181 | 3e-06 | 0.000181 |
| 1.44826 | 0.000689 | 0.000181 | 3.3e-05 | 0.000184 |
