Experiment: g2a run CLAS data, 1999
Spokespersons: N/A
Experiment comment: Results are presented for 8 different binnings (4 Eγ binnings x 2 cos(θ)dcm binnings). Lower and upper limits of the Eγ and cos(θ)dcm bins are shown. Centroids of the Eγ bins are also shown.
Measurement comment: -0.5 < cos(θ)dcm < -0.4
Publication:
Quantity measured: dσ/dΩ, mcb/sr
Differential cross section.
Beam: γ, polarization: circular
Target: d (Z=1, A=2), polarization: none
Final state: π0d, polarization: none
Eγ : | 0.7125 — 2.0125 GeV |
---|

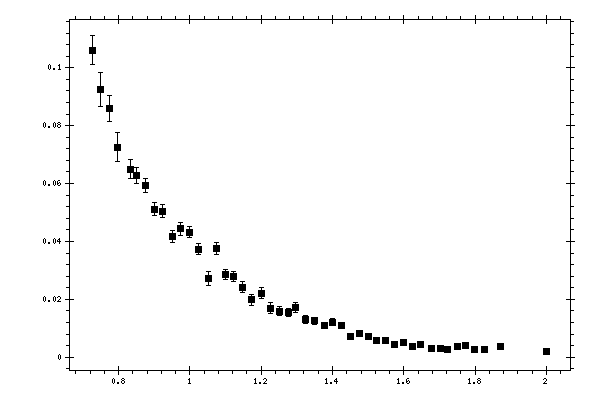

Observable quantity measured (Y axis): dσ/dΩ, mcb/sr
Parameter (X axis): Eγ, GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
Eγ,
GeV |
dσ/dΩ,
mcb/sr |
Data errors,
mcb/sr |
Systematic errors,
mcb/sr |
Full errors,
mcb/sr |
---|---|---|---|---|
0.72729 | 0.105997 | 0.005025 | 0.000862 | 0.005098 |
0.74813 | 0.09264 | 0.005863 | 0.000883 | 0.005929 |
0.77487 | 0.085972 | 0.004598 | 0.000733 | 0.004656 |
0.79811 | 0.07258 | 0.005033 | 0.000631 | 0.005072 |
0.83274 | 0.064968 | 0.003337 | 0.000578 | 0.003387 |
0.84948 | 0.062669 | 0.00272 | 0.000727 | 0.002816 |
0.87601 | 0.059319 | 0.002453 | 0.000786 | 0.002576 |
0.90088 | 0.051147 | 0.002272 | 0.000563 | 0.002341 |
0.92304 | 0.050493 | 0.0023 | 0.000454 | 0.002345 |
0.95169 | 0.041743 | 0.002078 | 0.000436 | 0.002124 |
0.97443 | 0.044377 | 0.002231 | 0.0004 | 0.002266 |
1.00025 | 0.043192 | 0.001988 | 0.000372 | 0.002023 |
1.02274 | 0.037347 | 0.001944 | 0.000304 | 0.001968 |
1.05139 | 0.027311 | 0.00239 | 0.000256 | 0.002404 |
1.07563 | 0.037655 | 0.002056 | 0.000307 | 0.002079 |
1.10121 | 0.028708 | 0.001715 | 0.000227 | 0.00173 |
1.1226 | 0.02781 | 0.001729 | 0.000224 | 0.001743 |
1.14853 | 0.024205 | 0.001854 | 0.000207 | 0.001865 |
1.17418 | 0.019925 | 0.001874 | 0.000157 | 0.00188 |
1.20083 | 0.022158 | 0.001868 | 0.000174 | 0.001876 |
1.22651 | 0.016979 | 0.001926 | 0.000225 | 0.001939 |
1.25104 | 0.015977 | 0.001469 | 0.000128 | 0.001475 |
1.2753 | 0.015487 | 0.001339 | 0.000186 | 0.001352 |
1.29677 | 0.017219 | 0.001735 | 0.000169 | 0.001743 |
1.32508 | 0.013197 | 0.001406 | 0.000197 | 0.00142 |
1.35031 | 0.012542 | 0.00125 | 0.000118 | 0.001256 |
1.37691 | 0.010918 | 0.001052 | 0.000135 | 0.001061 |
1.40048 | 0.012101 | 0.001179 | 9.8e-05 | 0.001183 |
1.42468 | 0.010864 | 0.00105 | 0.000105 | 0.001055 |
1.4495 | 0.007303 | 0.000838 | 8.3e-05 | 0.000842 |
1.47483 | 0.008363 | 0.000975 | 6.8e-05 | 0.000978 |
1.50005 | 0.007062 | 0.000812 | 0.000154 | 0.000827 |
1.52341 | 0.005817 | 0.000878 | 6.1e-05 | 0.00088 |
1.54965 | 0.005794 | 0.000919 | 0.0001 | 0.000924 |
1.57278 | 0.004348 | 0.000707 | 3.4e-05 | 0.000708 |
1.59982 | 0.005123 | 0.0008 | 4.8e-05 | 0.000802 |
1.62445 | 0.00366 | 0.000669 | 4.1e-05 | 0.00067 |
1.64804 | 0.004363 | 0.000861 | 4.5e-05 | 0.000863 |
1.67707 | 0.003189 | 0.0006 | 5.9e-05 | 0.000603 |
1.70285 | 0.002994 | 0.00071 | 2.3e-05 | 0.00071 |
1.72166 | 0.002856 | 0.000737 | 2.2e-05 | 0.000737 |
1.75083 | 0.003561 | 0.000769 | 2.8e-05 | 0.000769 |
1.77346 | 0.004109 | 0.000783 | 3.2e-05 | 0.000784 |
1.7988 | 0.002799 | 0.000585 | 2.2e-05 | 0.000586 |
1.82503 | 0.002754 | 0.000679 | 0.000127 | 0.000691 |
1.87261 | 0.00368 | 0.000753 | 2.9e-05 | 0.000753 |
1.99983 | 0.00201 | 0.00058 | 1.6e-05 | 0.00058 |
