Parameter (X axis): Eγ, GeV
You are not logged in.
Experiment: g2a run CLAS data, 1999
Spokespersons: N/A
Experiment comment: Results are presented for 8 different binnings (4 Eγ binnings x 2 cos(θ)dcm binnings). Lower and upper limits of the Eγ and cos(θ)dcm bins are shown. Centroids of the Eγ bins are also shown.
Measurement comment: 0.3 < cos(θ)dcm < 0.4
Publication:
Quantity measured: dσ/dΩ, mcb/sr
Differential cross section.
Beam: γ, polarization: circular
Target: d (Z=1, A=2), polarization: none
Final state: π0d, polarization: none
| Eγ : | 0.475 — 1.325 GeV |
|---|
|

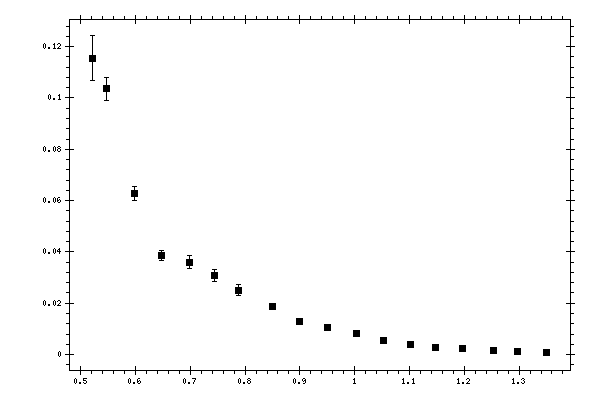

Observable quantity measured (Y axis): dσ/dΩ, mcb/sr
Parameter (X axis): Eγ, GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
Eγ,
GeV |
dσ/dΩ,
mcb/sr |
Data errors,
mcb/sr |
Systematic errors,
mcb/sr |
Full errors,
mcb/sr |
|---|---|---|---|---|
| 0.5219 | 0.115439 | 0.00876 | 0.000966 | 0.008813 |
| 0.54643 | 0.103656 | 0.00451 | 0.001056 | 0.004632 |
| 0.59836 | 0.062747 | 0.002754 | 0.000475 | 0.002795 |
| 0.64789 | 0.038439 | 0.00198 | 0.000292 | 0.002002 |
| 0.69826 | 0.03603 | 0.00251 | 0.000253 | 0.002523 |
| 0.74417 | 0.030702 | 0.002289 | 0.000235 | 0.002301 |
| 0.78862 | 0.025069 | 0.00216 | 0.000208 | 0.00217 |
| 0.8494 | 0.018904 | 0.001009 | 0.000139 | 0.001019 |
| 0.89955 | 0.013036 | 0.000745 | 9.3e-05 | 0.000751 |
| 0.95091 | 0.010724 | 0.000714 | 7.5e-05 | 0.000718 |
| 1.00283 | 0.008093 | 0.000587 | 6.1e-05 | 0.00059 |
| 1.05324 | 0.005621 | 0.000639 | 3.9e-05 | 0.00064 |
| 1.10114 | 0.003913 | 0.000383 | 5.1e-05 | 0.000387 |
| 1.1483 | 0.002739 | 0.00043 | 3e-05 | 0.000431 |
| 1.19695 | 0.002286 | 0.000428 | 2.1e-05 | 0.000429 |
| 1.25355 | 0.00157 | 0.000302 | 3.2e-05 | 0.000304 |
| 1.29707 | 0.001 | 0.000266 | 7e-06 | 0.000266 |
| 1.34967 | 0.000742 | 0.000199 | 6.5e-05 | 0.000209 |
