Parameter (X axis): Eγ, GeV
You are not logged in.
Experiment: g2a run CLAS data, 1999
Spokespersons: N/A
Experiment comment: Results are presented for 8 different binnings (4 Eγ binnings x 2 cos(θ)dcm binnings). Lower and upper limits of the Eγ and cos(θ)dcm bins are shown. Centroids of the Eγ bins are also shown.
Measurement comment: 0.3 < cos(θ)dcm < 0.4
Publication:
Quantity measured: dσ/dΩ, mcb/sr
Differential cross section.
Beam: γ, polarization: circular
Target: d (Z=1, A=2), polarization: none
Final state: π0d, polarization: none
| Eγ : | 0.5 — 1.35 GeV |
|---|
|

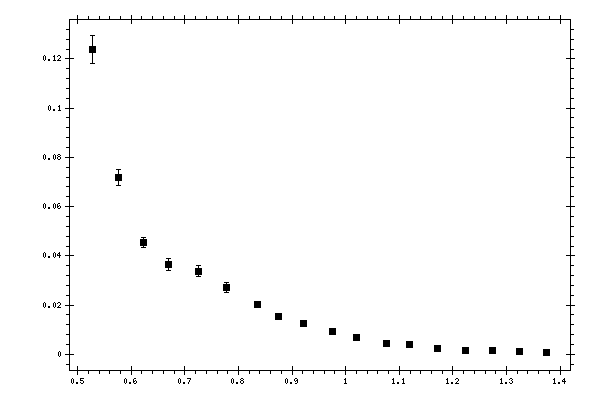

Observable quantity measured (Y axis): dσ/dΩ, mcb/sr
Parameter (X axis): Eγ, GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
Eγ,
GeV |
dσ/dΩ,
mcb/sr |
Data errors,
mcb/sr |
Systematic errors,
mcb/sr |
Full errors,
mcb/sr |
|---|---|---|---|---|
| 0.52803 | 0.123762 | 0.005593 | 0.001125 | 0.005705 |
| 0.57673 | 0.071778 | 0.003371 | 0.000752 | 0.003454 |
| 0.62254 | 0.045282 | 0.001999 | 0.00033 | 0.002026 |
| 0.66946 | 0.03656 | 0.002307 | 0.000328 | 0.002331 |
| 0.7245 | 0.033849 | 0.002206 | 0.000254 | 0.00222 |
| 0.77803 | 0.027131 | 0.002105 | 0.00022 | 0.002116 |
| 0.83525 | 0.020207 | 0.001376 | 0.000153 | 0.001384 |
| 0.87509 | 0.015184 | 0.000849 | 0.000107 | 0.000856 |
| 0.9215 | 0.012636 | 0.000777 | 9.5e-05 | 0.000783 |
| 0.97571 | 0.009291 | 0.000626 | 7e-05 | 0.00063 |
| 1.0204 | 0.006697 | 0.000617 | 6.1e-05 | 0.00062 |
| 1.07684 | 0.004575 | 0.000491 | 4.1e-05 | 0.000492 |
| 1.11947 | 0.003835 | 0.000405 | 4e-05 | 0.000407 |
| 1.17191 | 0.002234 | 0.000411 | 2.7e-05 | 0.000412 |
| 1.2231 | 0.0016 | 0.000347 | 5.6e-05 | 0.000352 |
| 1.27455 | 0.001428 | 0.000279 | 1.5e-05 | 0.000279 |
| 1.32347 | 0.000969 | 0.000258 | 7e-06 | 0.000258 |
| 1.37426 | 0.000669 | 0.000177 | 4e-05 | 0.000182 |
