Parameter (X axis): Eγ, GeV
You are not logged in.
Experiment: g2a run CLAS data, 1999
Spokespersons: N/A
Experiment comment: Results are presented for 8 different binnings (4 Eγ binnings x 2 cos(θ)dcm binnings). Lower and upper limits of the Eγ and cos(θ)dcm bins are shown. Centroids of the Eγ bins are also shown.
Measurement comment: 0.6 < cos(θ)dcm < 0.7
Publication:
Quantity measured: dσ/dΩ, mcb/sr
Differential cross section.
Beam: γ, polarization: circular
Target: d (Z=1, A=2), polarization: none
Final state: π0d, polarization: none
| Eγ : | 0.5 — 1.4 GeV |
|---|
|

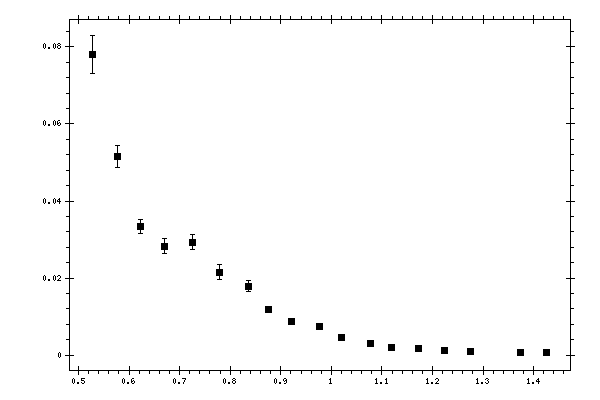

Observable quantity measured (Y axis): dσ/dΩ, mcb/sr
Parameter (X axis): Eγ, GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
Eγ,
GeV |
dσ/dΩ,
mcb/sr |
Data errors,
mcb/sr |
Systematic errors,
mcb/sr |
Full errors,
mcb/sr |
|---|---|---|---|---|
| 0.52803 | 0.077927 | 0.004929 | 0.000812 | 0.004995 |
| 0.57673 | 0.051475 | 0.002819 | 0.000494 | 0.002862 |
| 0.62254 | 0.033464 | 0.001791 | 0.000335 | 0.001822 |
| 0.66946 | 0.028243 | 0.001954 | 0.000253 | 0.00197 |
| 0.7245 | 0.029299 | 0.002003 | 0.00027 | 0.002021 |
| 0.77803 | 0.021554 | 0.001872 | 0.000198 | 0.001882 |
| 0.83525 | 0.017913 | 0.001344 | 0.000198 | 0.001359 |
| 0.87509 | 0.011826 | 0.000763 | 0.000105 | 0.00077 |
| 0.9215 | 0.008708 | 0.000644 | 7.8e-05 | 0.000649 |
| 0.97571 | 0.00733 | 0.000552 | 7.2e-05 | 0.000557 |
| 1.0204 | 0.004555 | 0.0005 | 4.1e-05 | 0.000502 |
| 1.07684 | 0.002941 | 0.000386 | 3.4e-05 | 0.000388 |
| 1.11947 | 0.002071 | 0.000292 | 3.5e-05 | 0.000294 |
| 1.17191 | 0.001648 | 0.000353 | 2.6e-05 | 0.000354 |
| 1.2231 | 0.001157 | 0.000295 | 1e-05 | 0.000295 |
| 1.27455 | 0.000951 | 0.000225 | 8e-06 | 0.000225 |
| 1.37426 | 0.000711 | 0.000181 | 4e-05 | 0.000185 |
| 1.42506 | 0.000722 | 0.000189 | 0.000127 | 0.000228 |
