Experiment: E-89-039, 2007
Spokespersons: S. Dytman, K. Giovanetti
Measurement comment: Electron beam energy is 1.515 Gev. From fit to angular xs with constraint that fitted xs be positive over all phi.
Publication:
Quantity measured: dσ/dΩT+ε·dσ/dΩL, mcbn/srad
The differential cross section for transverse photons plus the degree of longitudinal polarization of the virtual photon times the differential cross section for longitudinal photons.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: η p, polarization: none
| Q2 : | 0.2 — 0.4 GeV2 |
|---|---|
| W : | 1.59 — 1.61 GeV |
|

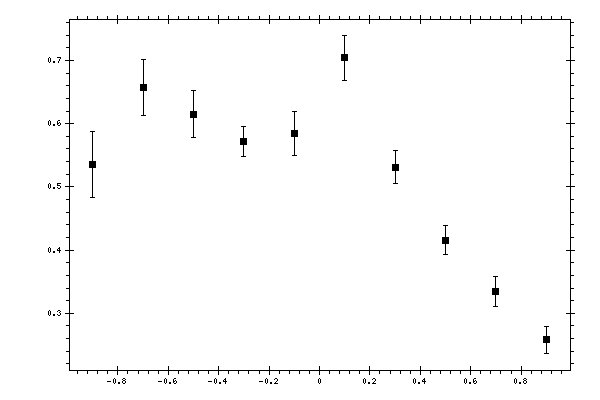

Observable quantity measured (Y axis): dσ/dΩT+ε·dσ/dΩL, mcbn/srad
Parameter (X axis): cos(θ), dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
cos(θ),
dimensionless |
dσ/dΩT+ε·dσ/dΩL,
mcbn/srad |
Negative uncertainty,
mcbn/srad |
Positive uncertainty,
mcbn/srad |
Systematic errors,
mcbn/srad |
|---|---|---|---|---|
| -0.9 | 0.536 | 0.052 | 0.052 | 0.069 |
| -0.7 | 0.657 | 0.044 | 0.044 | 0.081 |
| -0.5 | 0.615 | 0.037 | 0.037 | 0.033 |
| -0.3 | 0.572 | 0.024 | 0.024 | 0.034 |
| -0.1 | 0.585 | 0.035 | 0.035 | 0.061 |
| 0.1 | 0.704 | 0.035 | 0.035 | 0.047 |
| 0.3 | 0.531 | 0.026 | 0.026 | 0.049 |
| 0.5 | 0.416 | 0.023 | 0.023 | 0.02 |
| 0.7 | 0.334 | 0.024 | 0.024 | 0.018 |
| 0.9 | 0.258 | 0.021 | 0.021 | 0.023 |
