Experiment: E-89-039, 2007
Spokespersons: S. Dytman, K. Giovanetti
Measurement comment: Electron beam energy is 2.567 Gev. From fit to angular xs with constraint that fitted xs be positive over all phi.
Publication:
Quantity measured: dσ/dΩT+ε·dσ/dΩL, mcbn/srad
The differential cross section for transverse photons plus the degree of longitudinal polarization of the virtual photon times the differential cross section for longitudinal photons.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: η p, polarization: none
Q2 : | 0.6 — 1 GeV2 |
---|---|
W : | 1.59 — 1.61 GeV |

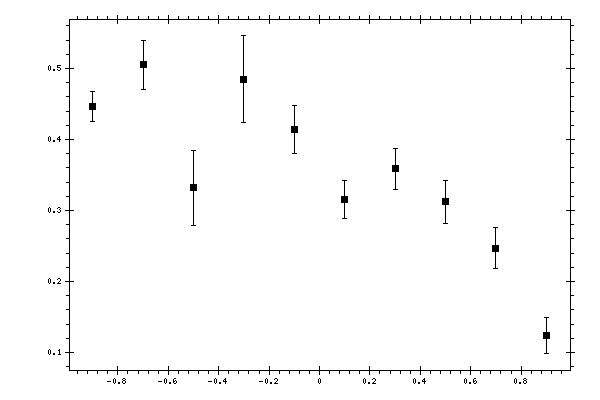

Observable quantity measured (Y axis): dσ/dΩT+ε·dσ/dΩL, mcbn/srad
Parameter (X axis): cos(θ), dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
cos(θ),
dimensionless |
dσ/dΩT+ε·dσ/dΩL,
mcbn/srad |
Negative uncertainty,
mcbn/srad |
Positive uncertainty,
mcbn/srad |
Systematic errors,
mcbn/srad |
---|---|---|---|---|
-0.9 | 0.447 | 0.021 | 0.021 | 0.022 |
-0.7 | 0.505 | 0.034 | 0.034 | 0.03 |
-0.5 | 0.332 | 0.053 | 0.053 | 0.039 |
-0.3 | 0.485 | 0.061 | 0.061 | 0.054 |
-0.1 | 0.414 | 0.034 | 0.034 | 0.021 |
0.1 | 0.315 | 0.027 | 0.027 | 0.021 |
0.3 | 0.359 | 0.029 | 0.029 | 0.02 |
0.5 | 0.312 | 0.03 | 0.03 | 0.022 |
0.7 | 0.247 | 0.029 | 0.029 | 0.012 |
0.9 | 0.124 | 0.025 | 0.025 | 0.011 |
