Parameter (X axis): cos(θ), dimensionless
You are not logged in.
Experiment: E-89-039, 2007
Spokespersons: S. Dytman, K. Giovanetti
Measurement comment: Electron beam energy is 2.567 Gev. From fit to angular xs with constraint that fitted xs be positive over all phi.
Publication:
Quantity measured: dσ/dΩT+ε·dσ/dΩL, mcbn/srad
The differential cross section for transverse photons plus the degree of longitudinal polarization of the virtual photon times the differential cross section for longitudinal photons.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: η p, polarization: none
| Q2 : | 1 — 1.4 GeV2 |
|---|---|
| W : | 1.59 — 1.61 GeV |
|
Observable quantity measured (Y axis): dσ/dΩT+ε·dσ/dΩL, mcbn/srad
Parameter (X axis): cos(θ), dimensionless |
Click here to get data in text file, delimited with tabs.

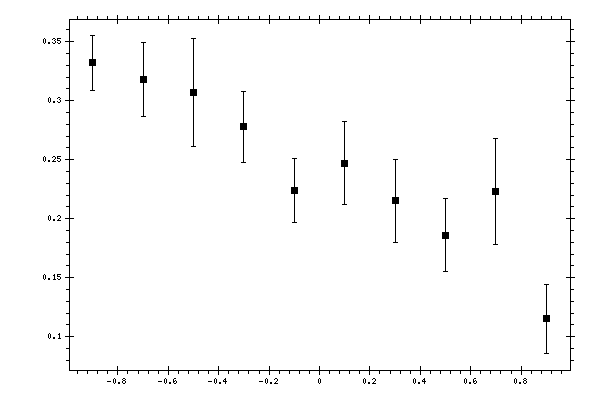

Measured data:
|
cos(θ),
dimensionless |
dσ/dΩT+ε·dσ/dΩL,
mcbn/srad |
Negative uncertainty,
mcbn/srad |
Positive uncertainty,
mcbn/srad |
Systematic errors,
mcbn/srad |
|---|---|---|---|---|
| -0.9 | 0.332 | 0.023 | 0.023 | 0.022 |
| -0.7 | 0.318 | 0.031 | 0.031 | 0.026 |
| -0.5 | 0.307 | 0.046 | 0.046 | 0.032 |
| -0.3 | 0.278 | 0.03 | 0.03 | 0.025 |
| -0.1 | 0.224 | 0.027 | 0.027 | 0.018 |
| 0.1 | 0.247 | 0.035 | 0.035 | 0.021 |
| 0.3 | 0.215 | 0.035 | 0.035 | 0.012 |
| 0.5 | 0.186 | 0.031 | 0.031 | 0.022 |
| 0.7 | 0.223 | 0.045 | 0.045 | 0.017 |
| 0.9 | 0.115 | 0.029 | 0.029 | 0.014 |
