Parameter (X axis): cos(θ), dimensionless
You are not logged in.
Experiment: E-89-039, 2007
Spokespersons: S. Dytman, K. Giovanetti
Measurement comment: Electron beam energy is 4.056 Gev. From fit to angular xs with constraint that fitted xs be positive over all phi.
Publication:
Quantity measured: dσ/dΩT+ε·dσ/dΩL, mcbn/srad
The differential cross section for transverse photons plus the degree of longitudinal polarization of the virtual photon times the differential cross section for longitudinal photons.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: η p, polarization: none
| Q2 : | 1.3 — 2.1 GeV2 |
|---|---|
| W : | 1.53 — 1.55 GeV |
|
Observable quantity measured (Y axis): dσ/dΩT+ε·dσ/dΩL, mcbn/srad
Parameter (X axis): cos(θ), dimensionless |
Click here to get data in text file, delimited with tabs.

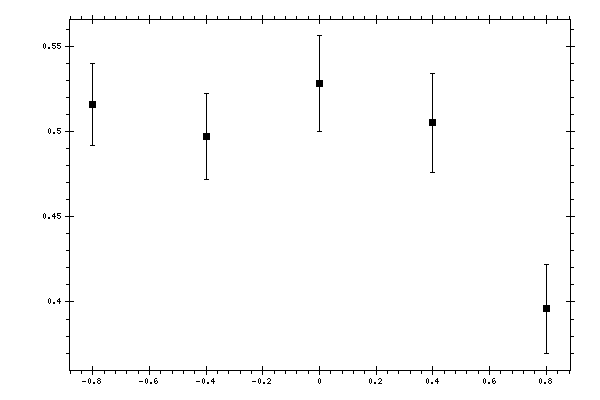

Measured data:
|
cos(θ),
dimensionless |
dσ/dΩT+ε·dσ/dΩL,
mcbn/srad |
Negative uncertainty,
mcbn/srad |
Positive uncertainty,
mcbn/srad |
Systematic errors,
mcbn/srad |
|---|---|---|---|---|
| -0.8 | 0.516 | 0.024 | 0.024 | 0.024 |
| -0.4 | 0.497 | 0.025 | 0.025 | 0.031 |
| 0 | 0.528 | 0.028 | 0.028 | 0.048 |
| 0.4 | 0.505 | 0.029 | 0.029 | 0.059 |
| 0.8 | 0.396 | 0.026 | 0.026 | 0.02 |
