Parameter (X axis): cos(θ), dimensionless
You are not logged in.
Experiment: E-89-039, 2007
Spokespersons: S. Dytman, K. Giovanetti
Measurement comment: Electron beam energy is 2.567 Gev. Fitted cross section asymmetry between phi=0 and 180 degrees. From fit to angular xs with constraint that fitted xs be positive over all phi.
Publication:
Quantity measured: AsymLT, dimensionless
Cross section asymmetry between phi*= 0 and 180 degrees.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: η p, polarization: none
| Q2 : | 0.6 — 1 GeV2 |
|---|---|
| W : | 1.53 — 1.55 GeV |
|
Observable quantity measured (Y axis): AsymLT, dimensionless
Parameter (X axis): cos(θ), dimensionless |
Click here to get data in text file, delimited with tabs.

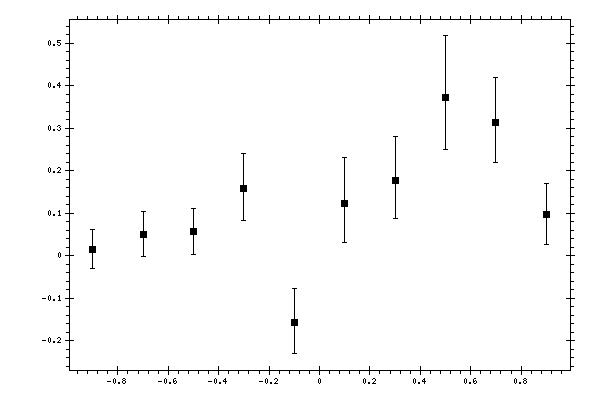

Measured data:
|
cos(θ),
dimensionless |
AsymLT,
dimensionless |
Negative uncertainty,
dimensionless |
Positive uncertainty,
dimensionless |
Systematic errors,
dimensionless |
|---|---|---|---|---|
| -0.9 | 0.015 | 0.046 | 0.046 | 0.002 |
| -0.7 | 0.051 | 0.053 | 0.054 | 0.005 |
| -0.5 | 0.057 | 0.053 | 0.055 | 0.001 |
| -0.3 | 0.159 | 0.075 | 0.082 | 0.029 |
| -0.1 | -0.157 | 0.072 | 0.079 | 0.051 |
| 0.1 | 0.124 | 0.092 | 0.106 | 0.056 |
| 0.3 | 0.178 | 0.09 | 0.102 | 0.049 |
| 0.5 | 0.371 | 0.121 | 0.146 | 0.043 |
| 0.7 | 0.314 | 0.094 | 0.105 | 0.05 |
| 0.9 | 0.098 | 0.071 | 0.072 | 0.014 |
