Parameter (X axis): cos(θ), dimensionless
You are not logged in.
Experiment: E-89-039, 2007
Spokespersons: S. Dytman, K. Giovanetti
Measurement comment: Electron beam energy is 2.567 Gev. Fitted cross section asymmetry between phi=0 and 180 degrees. From fit to angular xs with constraint that fitted xs be positive over all phi.
Publication:
Quantity measured: AsymLT, dimensionless
Cross section asymmetry between phi*= 0 and 180 degrees.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: η p, polarization: none
| Q2 : | 0.6 — 1 GeV2 |
|---|---|
| W : | 1.67 — 1.69 GeV |
|

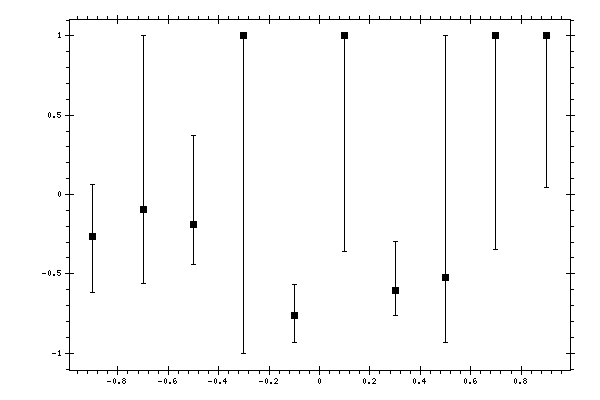

Observable quantity measured (Y axis): AsymLT, dimensionless
Parameter (X axis): cos(θ), dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
cos(θ),
dimensionless |
AsymLT,
dimensionless |
Negative uncertainty,
dimensionless |
Positive uncertainty,
dimensionless |
Systematic errors,
dimensionless |
|---|---|---|---|---|
| -0.9 | -0.262 | 0.357 | 0.328 | 0.042 |
| -0.7 | -0.093 | 0.47 | 1.093 | 0.083 |
| -0.5 | -0.19 | 0.251 | 0.559 | 0.013 |
| -0.3 | 1 | 2 | 0 | 0 |
| -0.1 | -0.76 | 0.174 | 0.19 | 0.025 |
| 0.1 | 1 | 1.359 | 0 | 0 |
| 0.3 | -0.607 | 0.156 | 0.311 | 0.064 |
| 0.5 | -0.525 | 0.408 | 1.525 | 0.051 |
| 0.7 | 1 | 1.345 | 0 | 0 |
| 0.9 | 1 | 0.956 | 0 | 0 |
