Measurement E102M323

You are not logged in.

Experiment: E-89-039, 2007

Spokespersons: S. Dytman, K. Giovanetti

Measurement comment: Electron beam energy is 4.056 Gev. Fitted cross section asymmetry between phi=0/180 and 90/270 degrees. From fit to angular xs with constraint that fitted xs be positive over all phi.

Publication:

H. Denizli, J. Mueller, S. Dytman, M.L. Leber, R.D. Levine, J. Miles, K.Y. Kim, and CLAS Collaboration Q² dependence of the S11(1535) Photocoupling and Evidence for a P-wave resonance in η electroproduction //

Quantity measured: Asym_TT, dimensionless
Cross section asymmetry between phi*=0/180 and 90/270 degrees.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: η p, polarization: none

Q² :	1.3 — 2.1 GeV²
W :	1.97 — 1.99 GeV

Observable quantity measured (Y axis): Asym_TT, dimensionless

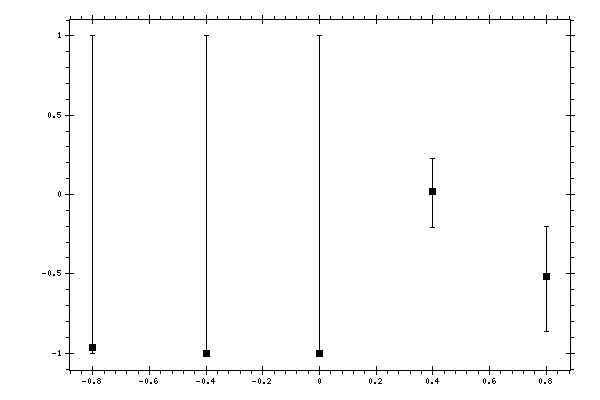

Plot measurement data

Parameter (X axis): cos(θ), dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

cos(θ), dimensionless	Asym_TT, dimensionless	Negative uncertainty, dimensionless	Positive uncertainty, dimensionless	Systematic errors, dimensionless
-0.8	-0.963	0.037	1.963	0.037
-0.4	-1	0	2	0
0	-1	0	2	0
0.4	0.019	0.228	0.209	0.044
0.8	-0.518	0.346	0.316	0.024
