Parameter (X axis): cos(θ), dimensionless
You are not logged in.
Experiment: E-89-039, 2007
Spokespersons: S. Dytman, K. Giovanetti
Measurement comment: Electron beam energy is 1.515 Gev. From fit to angular xs with constraint that fitted xs be positive over all phi.
Publication:
Quantity measured: dσ/dΩT+ε·dσ/dΩL, mcbn/srad
The differential cross section for transverse photons plus the degree of longitudinal polarization of the virtual photon times the differential cross section for longitudinal photons.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: η p, polarization: none
| Q2 : | 0.2 — 0.4 GeV2 |
|---|---|
| W : | 1.49 — 1.51 GeV |
|

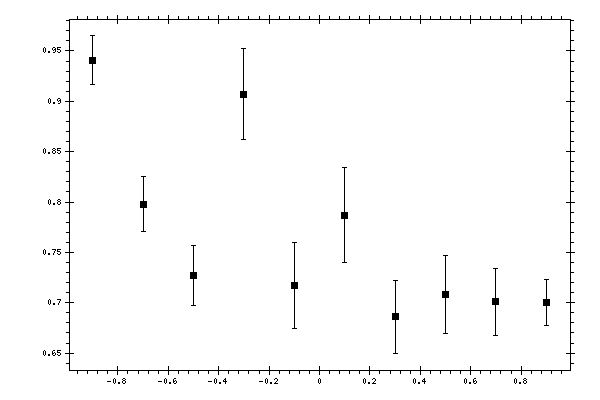

Observable quantity measured (Y axis): dσ/dΩT+ε·dσ/dΩL, mcbn/srad
Parameter (X axis): cos(θ), dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
cos(θ),
dimensionless |
dσ/dΩT+ε·dσ/dΩL,
mcbn/srad |
Negative uncertainty,
mcbn/srad |
Positive uncertainty,
mcbn/srad |
Systematic errors,
mcbn/srad |
|---|---|---|---|---|
| -0.9 | 0.941 | 0.024 | 0.024 | 0.142 |
| -0.7 | 0.798 | 0.027 | 0.027 | 0.098 |
| -0.5 | 0.727 | 0.03 | 0.03 | 0.058 |
| -0.3 | 0.907 | 0.045 | 0.045 | 0.141 |
| -0.1 | 0.717 | 0.043 | 0.043 | 0.112 |
| 0.1 | 0.787 | 0.047 | 0.047 | 0.081 |
| 0.3 | 0.686 | 0.036 | 0.036 | 0.056 |
| 0.5 | 0.708 | 0.039 | 0.039 | 0.076 |
| 0.7 | 0.701 | 0.033 | 0.033 | 0.073 |
| 0.9 | 0.7 | 0.023 | 0.023 | 0.033 |
