Measurement E12M10

You are not logged in.

Experiment: E1D and E6A runs CLAS data, 2005

Spokespersons: M. Osipenko

Publications:

Quantity measured: F2, dimensionless
Proton structure function.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: inclusive, polarization: none

Q2 : 0.775 GeV2
W : 1.80294792008884 — 2.5278415059513 GeV
xb : 0.2125 — 1.5265

Observable quantity measured (Y axis): F2, dimensionless

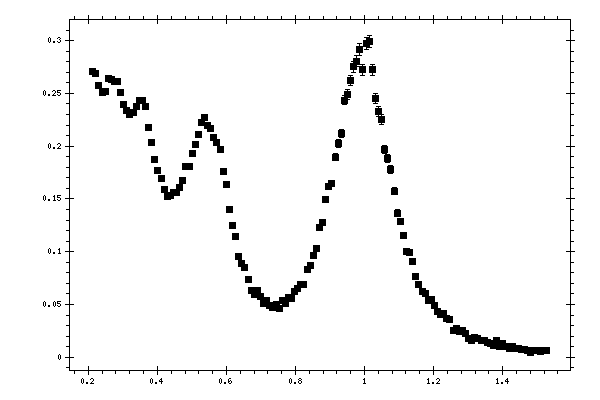

Plot measurement data

Parameter (X axis): x, dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

x,
dimensionless 		F2,
dimensionless 		Data error,
dimensionless 		Systematic error,
dimensionless
0.2125 0.27057 0.00093417 0.014637
0.2215 0.26912 0.00095682 0.013893
0.2305 0.25785 0.00098394 0.013139
0.2395 0.25127 0.0010683 0.01276
0.2485 0.25181 0.0011936 0.012775
0.2575 0.26396 0.0013339 0.013401
0.2665 0.26287 0.0013947 0.013331
0.2755 0.26138 0.0014321 0.013261
0.2845 0.26113 0.0014771 0.013275
0.2935 0.2508 0.0014562 0.012728
0.3025 0.23943 0.0014142 0.012141
0.3115 0.23358 0.0013915 0.011864
0.3205 0.22998 0.0014096 0.011661
0.3295 0.23178 0.0014513 0.01179
0.3385 0.23765 0.0015375 0.012094
0.3475 0.24292 0.0016565 0.012399
0.3565 0.24317 0.0017307 0.012448
0.3655 0.23757 0.0017435 0.012131
0.3745 0.21804 0.0016993 0.011145
0.3835 0.20392 0.0016596 0.01041
0.3925 0.18753 0.0015993 0.0095526
0.4015 0.17655 0.0015895 0.0090038
0.4105 0.16966 0.001557 0.0086536
0.4195 0.15863 0.0015158 0.0080784
0.4285 0.15267 0.001506 0.007749
0.4375 0.15355 0.0015322 0.0077873
0.4465 0.15652 0.0015644 0.0079665
0.4555 0.1558 0.0015553 0.0079081
0.4645 0.16094 0.0016311 0.0081843
0.4735 0.16741 0.0016912 0.0085398
0.4825 0.1809 0.0018169 0.0092347
0.4915 0.18095 0.0018477 0.0092406
0.5005 0.19303 0.0019292 0.0098839
0.5095 0.20135 0.0020158 0.010278
0.5185 0.21122 0.0021239 0.010824
0.5275 0.22247 0.0022657 0.01146
0.5365 0.2275 0.0023105 0.011717
0.5455 0.21959 0.0023184 0.011243
0.5545 0.21671 0.0023595 0.011068
0.5635 0.20804 0.0023419 0.010608
0.5725 0.20386 0.0023364 0.010412
0.5815 0.19712 0.0023472 0.0099603
0.5905 0.17627 0.0022533 0.008973
0.5995 0.16397 0.0021425 0.0082951
0.6085 0.13958 0.0019596 0.0070387
0.6175 0.12486 0.0019099 0.0062861
0.6265 0.1142 0.0018316 0.0057396
0.6355 0.095728 0.0016383 0.0047507
0.6445 0.088482 0.0015992 0.0044363
0.6535 0.085327 0.0015895 0.0042763
0.6625 0.073807 0.0015063 0.0036925
0.6715 0.063622 0.0013806 0.0031742
0.6805 0.059731 0.0013693 0.0029852
0.6895 0.062855 0.0013945 0.0031598
0.6985 0.057308 0.0013377 0.0028811
0.7075 0.050797 0.0012179 0.0025299
0.7165 0.05341 0.0012759 0.0026655
0.7255 0.049171 0.0011997 0.0024524
0.7345 0.047243 0.0012214 0.0023509
0.7435 0.049685 0.0012774 0.0024686
0.7525 0.046111 0.0012732 0.0022876
0.7615 0.053565 0.0013692 0.0026674
0.7705 0.050945 0.0012825 0.0025268
0.7795 0.056733 0.0014281 0.0028384
0.7885 0.055522 0.0013982 0.0027643
0.7975 0.062016 0.0014428 0.0031295
0.8065 0.065563 0.0015689 0.0032655
0.8155 0.069131 0.0015931 0.0034615
0.8245 0.069135 0.0016161 0.0034952
0.8335 0.083483 0.001832 0.0042134
0.8425 0.086738 0.0018675 0.0043594
0.8515 0.096768 0.0019489 0.0048562
0.8605 0.10322 0.0021058 0.0052537
0.8695 0.12251 0.0023802 0.0062629
0.8785 0.12756 0.0024509 0.0064572
0.8875 0.14955 0.0027971 0.007646
0.8965 0.16171 0.0030754 0.0083264
0.9055 0.16469 0.0030616 0.0084452
0.9145 0.18968 0.0034833 0.0097476
0.9235 0.20243 0.0036604 0.010442
0.9325 0.21204 0.0038842 0.010951
0.9415 0.24325 0.0042765 0.012561
0.9505 0.24877 0.0045788 0.01293
0.9595 0.2621 0.0048063 0.013685
0.9685 0.27529 0.005173 0.014317
0.9775 0.28047 0.0052698 0.014564
0.9865 0.29153 0.005563 0.015327
0.9955 0.27249 0.005266 0.014196
1.0045 0.29746 0.0058926 0.015773
1.0135 0.29871 0.0057442 0.015779
1.0225 0.27217 0.0053696 0.014276
1.0315 0.24486 0.0048502 0.012591
1.0405 0.23247 0.0046447 0.01189
1.0495 0.22489 0.0046148 0.01154
1.0585 0.19677 0.004104 0.01007
1.0675 0.18851 0.0039448 0.0094968
1.0765 0.17768 0.0037175 0.0089926
1.0855 0.15731 0.0034573 0.0079092
1.0945 0.13656 0.0031329 0.0068772
1.1035 0.12832 0.0029553 0.0064493
1.1125 0.11582 0.0027506 0.0057416
1.1215 0.099912 0.0024975 0.0049743
1.1305 0.099534 0.0024996 0.0049433
1.1395 0.090934 0.0023729 0.0044855
1.1485 0.0761 0.002208 0.0037623
1.1575 0.068503 0.0020098 0.0033642
1.1665 0.06244 0.001862 0.003066
1.1755 0.060146 0.0018885 0.0029409
1.1845 0.053512 0.0018268 0.0026431
1.1935 0.054887 0.0017966 0.0027062
1.2025 0.048608 0.0017344 0.0023862
1.2115 0.04377 0.0017383 0.0021551
1.2205 0.04044 0.0015693 0.0019966
1.2295 0.04172 0.0016002 0.002031
1.2385 0.036885 0.0015835 0.0018255
1.2475 0.035967 0.0015705 0.0017693
1.2565 0.025676 0.0013237 0.0012653
1.2655 0.027492 0.0013777 0.0013733
1.2745 0.024004 0.001273 0.0011674
1.2835 0.025233 0.0012495 0.0012421
1.2925 0.022736 0.0012398 0.0011107
1.3015 0.017981 0.00097135 0.00087162
1.3105 0.016187 0.0010701 0.00078778
1.3195 0.018867 0.0011746 0.00093013
1.3285 0.017692 0.0010648 0.00087145
1.3375 0.016206 0.0011033 0.00082242
1.3465 0.016079 0.0012256 0.00079619
1.3555 0.014163 0.00097036 0.00068941
1.3645 0.01334 0.0010035 0.00064061
1.3735 0.010794 0.00083742 0.00052045
1.3825 0.015806 0.001045 0.0007713
1.3915 0.010455 0.00088661 0.00051188
1.4005 0.013402 0.0010834 0.00066419
1.4095 0.009879 0.00077946 0.00048172
1.4185 0.0087674 0.00077192 0.00042483
1.4275 0.0099591 0.0010346 0.00049916
1.4365 0.0083776 0.00076818 0.00040216
1.4455 0.0086513 0.00076708 0.00042651
1.4545 0.0078351 0.00070768 0.0003807
1.4635 0.007066 0.00065556 0.00034196
1.4725 0.0061247 0.00079791 0.0002975
1.4815 0.0045532 0.00059696 0.00022169
1.4905 0.0062446 0.00065173 0.0002995
1.4995 0.0062784 0.00062388 0.00031661
1.5085 0.0058107 0.00064385 0.00027927
1.5175 0.0067766 0.00090298 0.00033422
1.5265 0.006765 0.00082393 0.00035117
