Measurement E12M11

You are not logged in.

Experiment: E1D and E6A runs CLAS data, 2005

Spokespersons: M. Osipenko

Publications:

Quantity measured: F2, dimensionless
Proton structure function.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: inclusive, polarization: none

Q2 : 0.825 GeV2
W : 1.7981590224707 — 2.47741806420849 GeV
xb : 0.2395 — 1.5265

Observable quantity measured (Y axis): F2, dimensionless

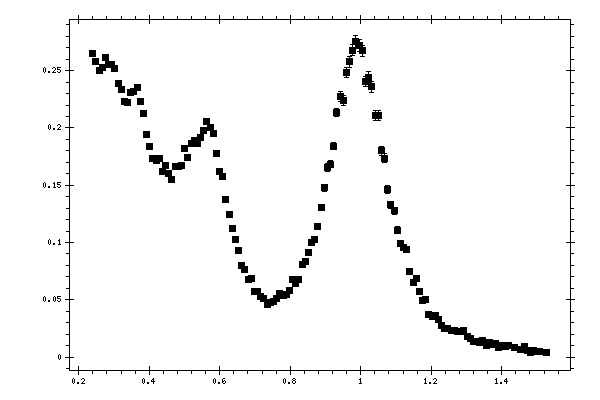

Plot measurement data

Parameter (X axis): x, dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

x,
dimensionless 		F2,
dimensionless 		Data errors,
dimensionless 		Systematic errors,
dimensionless
0.2395 0.26493 0.0010492 0.013909
0.2485 0.25802 0.0010715 0.013462
0.2575 0.2502 0.0011118 0.012996
0.2665 0.25314 0.0012284 0.013148
0.2755 0.26185 0.0013776 0.013614
0.2845 0.25552 0.0014608 0.013256
0.2935 0.2557 0.001514 0.013261
0.3025 0.25231 0.0015618 0.013107
0.3115 0.23838 0.001551 0.01236
0.3205 0.23312 0.0015621 0.012124
0.3295 0.2227 0.0015568 0.011572
0.3385 0.22255 0.0015387 0.011544
0.3475 0.23097 0.0015804 0.012019
0.3565 0.23211 0.0016012 0.012068
0.3655 0.23488 0.0016293 0.012225
0.3745 0.22276 0.0016049 0.011574
0.3835 0.21249 0.0015836 0.011006
0.3925 0.19427 0.0015674 0.010067
0.4015 0.18349 0.0015916 0.0095509
0.4105 0.17359 0.001601 0.0090019
0.4195 0.17176 0.0016223 0.008911
0.4285 0.17372 0.0017068 0.0091065
0.4375 0.16155 0.001638 0.0084045
0.4465 0.16686 0.0017063 0.0087906
0.4555 0.16027 0.0016829 0.0083921
0.4645 0.15522 0.0016765 0.0081304
0.4735 0.1659 0.0017724 0.0086882
0.4825 0.16633 0.0017813 0.0087615
0.4915 0.16725 0.0018047 0.0087516
0.5005 0.18247 0.0019282 0.0095873
0.5095 0.17434 0.0018838 0.0091058
0.5185 0.18676 0.0019582 0.0097722
0.5275 0.18902 0.0020076 0.009834
0.5365 0.18599 0.0019971 0.0096934
0.5455 0.19193 0.0020535 0.0099778
0.5545 0.19801 0.0021432 0.010302
0.5635 0.20562 0.0022965 0.010783
0.5725 0.2003 0.0022662 0.010437
0.5815 0.19525 0.002258 0.010221
0.5905 0.17799 0.0021643 0.0092806
0.5995 0.16184 0.00202 0.0083586
0.6085 0.15801 0.0020401 0.0081688
0.6175 0.13723 0.0018848 0.0070738
0.6265 0.12407 0.0017679 0.0063935
0.6355 0.11181 0.001734 0.0057359
0.6445 0.10225 0.0016087 0.0052356
0.6535 0.093303 0.0015697 0.0048034
0.6625 0.079886 0.0014021 0.0040662
0.6715 0.075974 0.0014186 0.0038814
0.6805 0.067341 0.0013167 0.0034496
0.6895 0.06822 0.0013592 0.003514
0.6985 0.056971 0.0012372 0.0029168
0.7075 0.057628 0.0012768 0.002991
0.7165 0.052912 0.0011546 0.0026987
0.7255 0.050676 0.0011534 0.0025936
0.7345 0.045977 0.0010952 0.0023357
0.7435 0.047734 0.0011616 0.0024405
0.7525 0.048448 0.0011795 0.0024601
0.7615 0.050889 0.0012476 0.0025764
0.7705 0.055434 0.0013138 0.0028159
0.7795 0.053637 0.0012742 0.0027258
0.7885 0.05483 0.0013241 0.0027994
0.7975 0.057747 0.0013645 0.0029571
0.8065 0.067815 0.001541 0.0034821
0.8155 0.064107 0.0015083 0.0033091
0.8245 0.067745 0.0015286 0.0034692
0.8335 0.080804 0.0017648 0.0041641
0.8425 0.083588 0.0017718 0.0042842
0.8515 0.091209 0.0018679 0.0047155
0.8605 0.099647 0.0020611 0.0051524
0.8695 0.10301 0.0020711 0.0052865
0.8785 0.11421 0.0022312 0.0058661
0.8875 0.1307 0.0025257 0.0067614
0.8965 0.14767 0.0028042 0.0077619
0.9055 0.16544 0.0031077 0.0086269
0.9145 0.16822 0.003177 0.0087874
0.9235 0.18421 0.0034371 0.0096806
0.9325 0.21357 0.0037943 0.011248
0.9415 0.22743 0.0040444 0.012037
0.9505 0.22401 0.0041478 0.011764
0.9595 0.24842 0.0044558 0.013048
0.9685 0.25789 0.0048302 0.013801
0.9775 0.2678 0.0049415 0.014277
0.9865 0.27521 0.0051669 0.014657
0.9955 0.27199 0.0050737 0.014375
1.0045 0.26727 0.0050596 0.014156
1.0135 0.24063 0.0046823 0.012568
1.0225 0.24422 0.0047293 0.012872
1.0315 0.23596 0.0046165 0.012306
1.0405 0.21086 0.0042549 0.010974
1.0495 0.21107 0.0043171 0.011033
1.0585 0.17994 0.0038199 0.0093856
1.0675 0.17367 0.0037239 0.0089619
1.0765 0.14616 0.0032836 0.0074959
1.0855 0.13306 0.0030258 0.0067536
1.0945 0.1277 0.0030433 0.0066164
1.1035 0.11087 0.0026647 0.0056424
1.1125 0.099118 0.0025812 0.0050179
1.1215 0.095796 0.0025575 0.0048615
1.1305 0.093434 0.0025534 0.0047699
1.1395 0.074916 0.0020949 0.0037684
1.1485 0.064745 0.0020165 0.0032485
1.1575 0.068613 0.0022918 0.0035004
1.1665 0.057036 0.0019055 0.0028867
1.1755 0.049124 0.0016858 0.0024733
1.1845 0.049925 0.0017694 0.0025148
1.1935 0.036695 0.0015902 0.0018338
1.2025 0.035712 0.0015281 0.0017872
1.2115 0.036072 0.0015552 0.0018181
1.2205 0.032451 0.0014134 0.0016455
1.2295 0.027498 0.0013714 0.0013693
1.2385 0.025257 0.0013003 0.0012641
1.2475 0.025145 0.0013291 0.0012583
1.2565 0.022827 0.0013504 0.001145
1.2655 0.022939 0.0012273 0.0011529
1.2745 0.022696 0.0012676 0.001137
1.2835 0.022135 0.0013304 0.0010998
1.2925 0.022967 0.0013304 0.0011424
1.3015 0.018193 0.0011692 0.00091309
1.3105 0.016074 0.0011208 0.00079954
1.3195 0.013982 0.0010425 0.00070773
1.3285 0.013546 0.00095356 0.00066542
1.3375 0.013041 0.001115 0.0006584
1.3465 0.014037 0.00097817 0.00071101
1.3555 0.010479 0.00093163 0.0005224
1.3645 0.01311 0.0011581 0.0006522
1.3735 0.011051 0.0010457 0.00055264
1.3825 0.012191 0.0010194 0.00061738
1.3915 0.0084632 0.00084007 0.00042085
1.4005 0.010327 0.00091974 0.00052478
1.4095 0.0088453 0.00083596 0.00044886
1.4185 0.010401 0.00084609 0.00051227
1.4365 0.0078834 0.00084572 0.00039394
1.4545 0.006593 0.0008407 0.00034202
1.4635 0.0089369 0.0010378 0.00046081
1.4725 0.0060453 0.00098402 0.0003029
1.4815 0.0040107 0.00061825 0.00019735
1.4905 0.0057994 0.00068341 0.0002843
1.4995 0.005074 0.00067719 0.0002583
1.5085 0.0047285 0.00059762 0.00023409
1.5265 0.0043478 0.00062208 0.00021832
