Measurement E12M13

You are not logged in.

Experiment: E1D and E6A runs CLAS data, 2005

Spokespersons: M. Osipenko

Publications:

Quantity measured: F2, dimensionless
Proton structure function.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: inclusive, polarization: none

Q2 : 0.925 GeV2
W : 1.79368086656763 — 2.48699756039074 GeV
xb : 0.2575 — 1.4815

Observable quantity measured (Y axis): F2, dimensionless

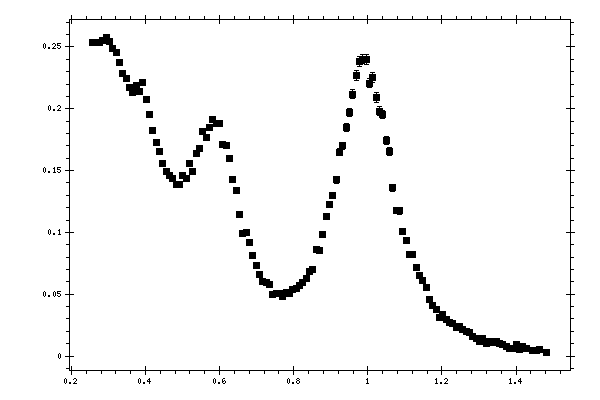

Plot measurement data

Parameter (X axis): x, dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

x,
dimensionless 		F2,
dimensionless 		Data errors,
dimensionless 		Systematic errors,
dimensionless
0.2575 0.25336 0.0013261 0.014194
0.2665 0.25326 0.0011697 0.013857
0.2755 0.2537 0.0012178 0.013819
0.2845 0.25488 0.0012703 0.013873
0.2935 0.25762 0.0013143 0.014041
0.3025 0.25407 0.0013367 0.013806
0.3115 0.24852 0.0013705 0.013445
0.3205 0.2456 0.0014549 0.013319
0.3295 0.23726 0.00154 0.012861
0.3385 0.22881 0.0016129 0.012374
0.3475 0.22446 0.0016896 0.012159
0.3565 0.21716 0.0016933 0.011753
0.3655 0.21345 0.0017137 0.011593
0.3745 0.21848 0.0017992 0.011839
0.3835 0.21365 0.0018024 0.011581
0.3925 0.22092 0.0019066 0.012038
0.4015 0.20764 0.0018724 0.011243
0.4105 0.19541 0.0018147 0.010627
0.4195 0.18263 0.0017592 0.0098934
0.4285 0.17258 0.0017383 0.0093343
0.4375 0.16537 0.0016792 0.0089317
0.4465 0.15576 0.0016422 0.0084579
0.4555 0.14955 0.0015663 0.0080907
0.4645 0.14575 0.0015718 0.0079221
0.4735 0.14361 0.0015355 0.0077988
0.4825 0.13851 0.0015424 0.0075133
0.4915 0.13858 0.001555 0.00753
0.5005 0.14574 0.0016257 0.0079194
0.5095 0.1436 0.001639 0.0077675
0.5185 0.15586 0.001798 0.0085037
0.5275 0.14965 0.0017755 0.0081305
0.5365 0.16364 0.0019451 0.0088646
0.5455 0.16759 0.0020048 0.0091076
0.5545 0.18154 0.0021059 0.009913
0.5635 0.17678 0.0020532 0.0096256
0.5725 0.18514 0.0020366 0.010042
0.5815 0.19122 0.0020679 0.010414
0.5905 0.18813 0.0020684 0.010241
0.5995 0.18822 0.0021176 0.010312
0.6085 0.1714 0.0020021 0.009375
0.6175 0.17043 0.0020552 0.009341
0.6265 0.15942 0.0020022 0.008613
0.6355 0.14255 0.0019033 0.0076974
0.6445 0.13418 0.0018669 0.0072917
0.6535 0.11439 0.0017027 0.0061365
0.6625 0.099491 0.0015875 0.0053233
0.6715 0.10019 0.0016618 0.0053895
0.6805 0.091839 0.0016322 0.004944
0.6895 0.081209 0.0015293 0.0043834
0.6985 0.073501 0.0014011 0.0039478
0.7075 0.065803 0.0013325 0.0035292
0.7165 0.060498 0.0012976 0.0032246
0.7255 0.059762 0.0012954 0.0032177
0.7345 0.058041 0.0012716 0.003123
0.7435 0.049419 0.0011686 0.0026253
0.7525 0.050325 0.0011781 0.0027068
0.7615 0.0505 0.0011875 0.0026845
0.7705 0.048565 0.001185 0.0025829
0.7795 0.051387 0.0012273 0.0027472
0.7885 0.050443 0.0011978 0.0026666
0.7975 0.054081 0.0012446 0.0028615
0.8065 0.054491 0.0012995 0.0029058
0.8155 0.056999 0.0012931 0.0030197
0.8245 0.059476 0.0013649 0.0031689
0.8335 0.06307 0.0014447 0.0033629
0.8425 0.068596 0.0015226 0.003674
0.8515 0.070221 0.0015458 0.0037483
0.8605 0.086429 0.001838 0.0047103
0.8695 0.085382 0.0017375 0.0045562
0.8785 0.097979 0.0019934 0.0052802
0.8875 0.11302 0.0021481 0.0061036
0.8965 0.12233 0.0022566 0.0066191
0.9055 0.13002 0.0023603 0.0070199
0.9145 0.14239 0.0025341 0.0076462
0.9235 0.16471 0.0027785 0.0089192
0.9325 0.16995 0.0029601 0.0093066
0.9415 0.18494 0.0030841 0.010029
0.9505 0.19676 0.0033205 0.01072
0.9595 0.21173 0.0036157 0.011658
0.9685 0.22683 0.0037655 0.012575
0.9775 0.23834 0.0039712 0.013161
0.9865 0.24022 0.0040056 0.013279
0.9955 0.24007 0.0040791 0.013303
1.0045 0.22061 0.0037928 0.012077
1.0135 0.22545 0.0039923 0.012397
1.0225 0.2092 0.0038026 0.011443
1.0315 0.19794 0.0035306 0.010754
1.0405 0.19538 0.0035857 0.010623
1.0495 0.17424 0.0033923 0.0093919
1.0585 0.16549 0.003293 0.0089989
1.0675 0.13626 0.0028154 0.0072598
1.0765 0.11756 0.002546 0.006276
1.0855 0.11739 0.0025527 0.0062233
1.0945 0.10074 0.0023515 0.0053613
1.1035 0.093375 0.0023268 0.0049714
1.1125 0.08224 0.0020857 0.0043683
1.1215 0.082122 0.0020801 0.0043623
1.1305 0.071283 0.0019266 0.0037573
1.1395 0.06498 0.0019214 0.0034335
1.1485 0.060913 0.0018091 0.0032018
1.1575 0.055339 0.0017501 0.0028973
1.1665 0.045657 0.0016123 0.0023999
1.1755 0.040925 0.0014205 0.0021404
1.1845 0.037445 0.0014258 0.0019641
1.1935 0.031034 0.0012288 0.0016172
1.2025 0.033836 0.0014697 0.0017797
1.2115 0.029732 0.0012623 0.0015425
1.2205 0.026919 0.0012044 0.0014103
1.2295 0.026403 0.001208 0.0013686
1.2385 0.022735 0.0011631 0.0011946
1.2475 0.02351 0.0011973 0.0012486
1.2565 0.021253 0.0011126 0.0011074
1.2655 0.019593 0.0010089 0.0010345
1.2745 0.019067 0.0011745 0.0010005
1.2835 0.015605 0.00097352 0.0008076
1.2925 0.014064 0.00098561 0.00073562
1.3015 0.011929 0.00085981 0.0006202
1.3105 0.013948 0.00098665 0.000727
1.3195 0.010493 0.00087904 0.0005554
1.3285 0.011436 0.00086879 0.00060059
1.3375 0.010896 0.00080983 0.0005646
1.3465 0.012136 0.00098664 0.00064202
1.3555 0.0098415 0.00080476 0.00051021
1.3645 0.0091443 0.00069677 0.00047457
1.3735 0.0074331 0.00072968 0.00038454
1.3825 0.0065231 0.00066497 0.00033826
1.3915 0.0064935 0.00075579 0.00035099
1.4005 0.0090977 0.0007399 0.00047987
1.4095 0.0051765 0.00058776 0.00026635
1.4185 0.0074367 0.00077599 0.00039315
1.4275 0.0061545 0.0006866 0.00031852
1.4455 0.0041194 0.00053245 0.0002106
1.4545 0.0042641 0.00060072 0.00022168
1.4635 0.0057138 0.00067365 0.00029545
1.4815 0.0029089 0.00053596 0.00015042
