Measurement E12M14

You are not logged in.

Experiment: E1D and E6A runs CLAS data, 2005

Spokespersons: M. Osipenko

Publications:

Quantity measured: F2, dimensionless
Proton structure function.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: inclusive, polarization: none

Q2 : 0.975 GeV2
W : 1.78914522306633 — 2.49027316594919 GeV
xb : 0.2665 — 1.4815

Observable quantity measured (Y axis): F2, dimensionless

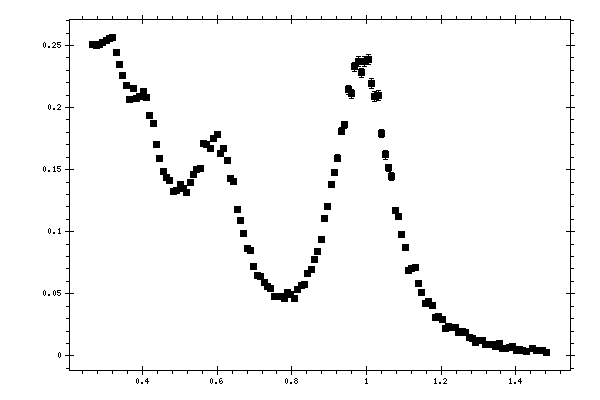

Plot measurement data

Parameter (X axis): x, dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

x,
dimensionless 		F2,
dimensionless 		Data errors,
dimensionless 		Systematic errors,
dimensionless
0.2665 0.25111 0.002349 0.014687
0.2755 0.25 0.0014316 0.014067
0.2845 0.25081 0.0012901 0.013945
0.2935 0.25237 0.0013296 0.014048
0.3025 0.25369 0.0013698 0.014084
0.3115 0.25587 0.0014175 0.014223
0.3205 0.25626 0.0014481 0.014233
0.3295 0.24446 0.0014384 0.013518
0.3385 0.23446 0.0014369 0.012953
0.3475 0.22556 0.0014774 0.012464
0.3565 0.21792 0.0015274 0.012026
0.3655 0.20626 0.0015914 0.011388
0.3745 0.21563 0.0017481 0.011954
0.3835 0.20697 0.0017927 0.011451
0.3925 0.20881 0.0018433 0.011553
0.4015 0.21296 0.0019094 0.011795
0.4105 0.20819 0.0019019 0.011519
0.4195 0.19396 0.0018601 0.010704
0.4285 0.18752 0.0018531 0.010364
0.4375 0.16984 0.0017991 0.0093836
0.4465 0.15882 0.0017747 0.0088025
0.4555 0.14875 0.0017278 0.0082464
0.4645 0.14351 0.0017001 0.0079166
0.4735 0.14134 0.0016857 0.0078055
0.4825 0.13204 0.0016464 0.007277
0.4915 0.13314 0.0016903 0.0073534
0.5005 0.13763 0.0017128 0.0076177
0.5095 0.13452 0.0016884 0.007432
0.5185 0.13179 0.0016603 0.0072723
0.5275 0.13981 0.001724 0.0077059
0.5365 0.1459 0.0017697 0.0080754
0.5455 0.14971 0.0018335 0.0083649
0.5545 0.15118 0.0017988 0.0083438
0.5635 0.17109 0.0019714 0.0094893
0.5725 0.17016 0.0020163 0.0094602
0.5815 0.16676 0.0019993 0.009235
0.5905 0.17526 0.0020815 0.0097336
0.5995 0.17865 0.0020552 0.0099126
0.6085 0.16281 0.001945 0.0090323
0.6175 0.16725 0.0020778 0.009366
0.6265 0.15711 0.001949 0.0087245
0.6355 0.14298 0.0018778 0.0078215
0.6445 0.14028 0.00188 0.0076621
0.6535 0.11814 0.0017059 0.0064364
0.6625 0.10879 0.001655 0.0059182
0.6715 0.098845 0.0015823 0.0053605
0.6805 0.086568 0.0014557 0.0046785
0.6895 0.08516 0.0014932 0.0046671
0.6985 0.072333 0.0013848 0.0039161
0.7075 0.064408 0.0012671 0.003498
0.7165 0.064251 0.0012709 0.00349
0.7255 0.058848 0.0012341 0.0031908
0.7345 0.056032 0.0011909 0.0030354
0.7435 0.054261 0.0011421 0.0029474
0.7525 0.047463 0.0010504 0.0025713
0.7615 0.047801 0.0010957 0.0025922
0.7705 0.047681 0.001086 0.0025939
0.7795 0.046189 0.0011112 0.0025108
0.7885 0.050664 0.0011468 0.0027365
0.7975 0.049529 0.0011258 0.002683
0.8065 0.046314 0.0010371 0.0024825
0.8155 0.053399 0.0011847 0.0028847
0.8245 0.056329 0.0012888 0.0030689
0.8335 0.05768 0.0013037 0.0031344
0.8425 0.066029 0.0014304 0.0036146
0.8515 0.069759 0.0014622 0.0038312
0.8605 0.078 0.001609 0.00428
0.8695 0.083698 0.0016909 0.004602
0.8785 0.094108 0.0018813 0.0051734
0.8875 0.11088 0.0020877 0.0061113
0.8965 0.12034 0.0022371 0.0067028
0.9055 0.13833 0.0024648 0.0077149
0.9145 0.1476 0.0026433 0.0082319
0.9235 0.15923 0.0027171 0.0088597
0.9325 0.18096 0.0030612 0.010171
0.9415 0.18597 0.0031272 0.010455
0.9505 0.2144 0.0035427 0.01213
0.9595 0.21116 0.0035796 0.011974
0.9685 0.23266 0.0039091 0.013195
0.9775 0.23685 0.0039646 0.013336
0.9865 0.22795 0.0038392 0.01287
0.9955 0.23719 0.0041092 0.013565
1.0045 0.23887 0.0041662 0.013504
1.0135 0.21918 0.0039375 0.012376
1.0225 0.20883 0.0037591 0.01178
1.0315 0.20971 0.0038922 0.011793
1.0405 0.17903 0.0034563 0.0099002
1.0495 0.16178 0.0032735 0.0089918
1.0585 0.15137 0.0031038 0.0083378
1.0675 0.14447 0.0030501 0.0080036
1.0765 0.11699 0.0026431 0.0064085
1.0855 0.11206 0.0025797 0.0061523
1.0945 0.09777 0.0023965 0.0053089
1.1035 0.08739 0.0022633 0.0047029
1.1125 0.068947 0.0019589 0.0037168
1.1215 0.070705 0.001983 0.0038289
1.1305 0.071147 0.0020614 0.0038838
1.1395 0.058369 0.0018573 0.0031699
1.1485 0.051228 0.0016131 0.0027427
1.1575 0.042394 0.0014681 0.0022758
1.1665 0.04409 0.0016236 0.0023669
1.1755 0.040533 0.0015833 0.0021837
1.1845 0.031021 0.0014058 0.0016495
1.1935 0.031372 0.001282 0.0016782
1.2025 0.029279 0.0012664 0.0015673
1.2115 0.021908 0.0010169 0.0011598
1.2205 0.023422 0.0011051 0.0012431
1.2295 0.022888 0.0012735 0.001223
1.2385 0.022593 0.0012068 0.001214
1.2475 0.018936 0.0010113 0.0010073
1.2565 0.019821 0.001108 0.0010548
1.2655 0.018672 0.0011117 0.00099536
1.2745 0.014513 0.001017 0.00078242
1.2835 0.014311 0.00095768 0.00076855
1.2925 0.010758 0.00077018 0.00056792
1.3015 0.012378 0.00093541 0.00066298
1.3105 0.012412 0.00088439 0.00066735
1.3195 0.0090852 0.00072054 0.00047795
1.3285 0.0091179 0.00092078 0.00048039
1.3375 0.0089514 0.00080229 0.00047636
1.3465 0.0073649 0.00082657 0.00038992
1.3555 0.010301 0.00098015 0.00054762
1.3645 0.0062162 0.00062314 0.00033438
1.3735 0.0060411 0.00059039 0.00031915
1.3825 0.0065473 0.00072382 0.00035304
1.3915 0.0077469 0.00069937 0.00041057
1.4005 0.0046494 0.00070731 0.00024599
1.4095 0.0048551 0.00061846 0.0002563
1.4185 0.0044405 0.000562 0.00023505
1.4275 0.0038021 0.00063134 0.00020226
1.4455 0.0057977 0.00097353 0.00033024
1.4545 0.0041812 0.00070818 0.00022314
1.4725 0.0042942 0.00068741 0.00024051
1.4815 0.0025957 0.00038354 0.00013589
