Measurement E12M34

You are not logged in.

Experiment: E1D and E6A runs CLAS data, 2005

Spokespersons: M. Osipenko

Publications:

Quantity measured: F2, dimensionless
Proton structure function.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: inclusive, polarization: none

Q2 : 1.975 GeV2
W : 1.70316728146339 — 3.12878097843303 GeV
xb : 0.2395 — 1.4545

Observable quantity measured (Y axis): F2, dimensionless

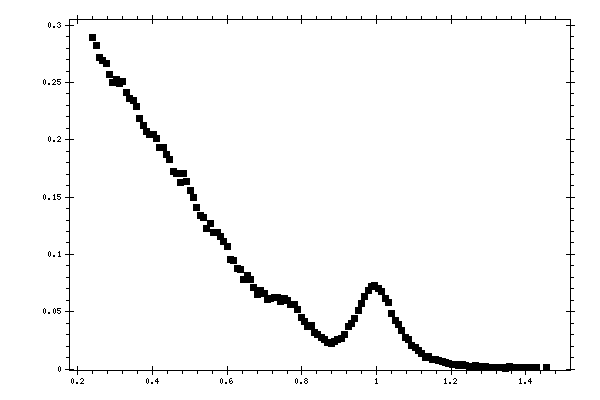

Plot measurement data

Parameter (X axis): x, dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

x,
dimensionless 		F2,
dimensionless 		Data errors,
dimensionless 		Systematic errors,
dimensionless
0.2395 0.28917 0.0008911 0.014287
0.2485 0.28213 0.0010332 0.013877
0.2575 0.27223 0.0011317 0.013371
0.2665 0.26931 0.0011688 0.013191
0.2755 0.26648 0.0011079 0.013039
0.2845 0.25656 0.0010626 0.012546
0.2935 0.25018 0.0010775 0.012218
0.3025 0.25232 0.0011695 0.012374
0.3115 0.24928 0.0011767 0.012204
0.3205 0.25053 0.0012054 0.0123
0.3295 0.24093 0.0011969 0.011789
0.3385 0.23589 0.0012242 0.011535
0.3475 0.2343 0.0012857 0.011483
0.3565 0.22877 0.0012757 0.011195
0.3655 0.21897 0.0012817 0.010724
0.3745 0.21273 0.0012934 0.010397
0.3835 0.20747 0.0011742 0.010185
0.3925 0.2043 0.0011344 0.010026
0.4015 0.20431 0.001172 0.010023
0.4105 0.20078 0.0011803 0.0098488
0.4195 0.1935 0.001176 0.0094725
0.4285 0.19341 0.0012039 0.0095059
0.4375 0.1871 0.0011954 0.0091331
0.4465 0.18259 0.0012226 0.0089537
0.4555 0.17238 0.0011914 0.0084159
0.4645 0.17079 0.001216 0.0083593
0.4735 0.16308 0.0011815 0.0079754
0.4825 0.17068 0.00119 0.0083888
0.4915 0.16359 0.0011975 0.0080571
0.5005 0.15557 0.001153 0.0076378
0.5095 0.14948 0.0011384 0.007331
0.5185 0.14092 0.0011451 0.0069372
0.5275 0.13357 0.0011509 0.0065366
0.5365 0.13189 0.0011557 0.0064987
0.5455 0.12251 0.0010993 0.0059777
0.5545 0.12721 0.0011753 0.0062739
0.5635 0.11873 0.0011131 0.0058272
0.5725 0.11917 0.0011587 0.0058982
0.5815 0.11549 0.0011797 0.0056759
0.5905 0.11157 0.0011777 0.005492
0.5995 0.10662 0.0011471 0.0052571
0.6085 0.095975 0.0011432 0.004691
0.6175 0.09504 0.0011724 0.0046967
0.6265 0.087918 0.0011019 0.0043426
0.6355 0.086724 0.0011187 0.0042501
0.6445 0.078532 0.0011323 0.0038533
0.6535 0.082001 0.0011771 0.004019
0.6625 0.078119 0.0011321 0.0038663
0.6715 0.071289 0.0010329 0.0034818
0.6805 0.065421 0.0010386 0.0032264
0.6895 0.068695 0.0010106 0.0034235
0.6985 0.066155 0.0010079 0.0032848
0.7075 0.060998 0.0010813 0.0029877
0.7165 0.061808 0.0010028 0.0030503
0.7255 0.062708 0.0010278 0.0030819
0.7345 0.062728 0.0011042 0.0031175
0.7435 0.059333 0.0010638 0.0029226
0.7525 0.061743 0.0011378 0.0030651
0.7615 0.060112 0.001107 0.0030001
0.7705 0.056564 0.0011756 0.0028197
0.7795 0.056254 0.0010798 0.0027923
0.7885 0.05191 0.0010599 0.0025677
0.7975 0.044809 0.0010241 0.0022101
0.8065 0.041323 0.00091083 0.0020227
0.8155 0.037324 0.00089954 0.0018415
0.8245 0.037528 0.0009247 0.0018397
0.8335 0.032095 0.00077343 0.0017177
0.8425 0.029757 0.0006811 0.0015923
0.8515 0.027434 0.00063645 0.0014371
0.8605 0.025969 0.00059119 0.0013366
0.8695 0.02296 0.00061186 0.0012225
0.8785 0.022139 0.00053473 0.0011529
0.8875 0.023748 0.00058725 0.0012315
0.8965 0.025537 0.00058947 0.0013176
0.9055 0.026846 0.0006432 0.0014013
0.9145 0.029818 0.0007058 0.0015641
0.9235 0.037398 0.00076665 0.0019834
0.9325 0.039662 0.00084096 0.0021321
0.9415 0.044178 0.00099349 0.0024082
0.9505 0.050902 0.0010815 0.0027796
0.9595 0.057232 0.0011386 0.0031463
0.9685 0.062922 0.0012666 0.0034619
0.9775 0.068687 0.0014001 0.003848
0.9865 0.072025 0.0014806 0.0040241
0.9955 0.072632 0.0015743 0.0041467
1.0045 0.07002 0.0015236 0.0039999
1.0135 0.068017 0.0014909 0.0038648
1.0225 0.061151 0.0013955 0.0034765
1.0315 0.057946 0.0013841 0.0032826
1.0405 0.048638 0.0013294 0.0027857
1.0495 0.042491 0.0011412 0.002389
1.0585 0.038539 0.0010971 0.0021411
1.0675 0.033836 0.00096721 0.00189
1.0765 0.027745 0.00089909 0.001528
1.0855 0.025852 0.00089536 0.0014225
1.0945 0.020803 0.00075156 0.0011405
1.1035 0.018358 0.00079931 0.0010372
1.1125 0.015943 0.00070229 0.00087886
1.1215 0.013348 0.00060645 0.00073148
1.1305 0.010309 0.00055312 0.0005582
1.1395 0.010746 0.00051323 0.00057194
1.1485 0.008408 0.00051324 0.00046488
1.1575 0.0084076 0.00051294 0.0004723
1.1665 0.0076149 0.00055273 0.0004114
1.1755 0.0064663 0.00038877 0.00034573
1.1845 0.0058839 0.00045632 0.00031685
1.1935 0.004709 0.00032852 0.00024682
1.2025 0.0036802 0.0003615 0.00019761
1.2115 0.0037798 0.00044189 0.00018039
1.2205 0.0034818 0.0003335 0.00016635
1.2295 0.0038524 0.00046929 0.00018484
1.2385 0.0032153 0.00031993 0.00015396
1.2475 0.0024343 0.00040362 0.00011579
1.2565 0.0026081 0.00029722 0.00012436
1.2655 0.0027411 0.00030457 0.00013127
1.2745 0.0020239 0.00025914 9.6018e-05
1.2835 0.0021518 0.00026689 0.00010233
1.2925 0.0025951 0.00045793 0.00012435
1.3015 0.0016033 0.00040004 7.5947e-05
1.3105 0.0012384 0.00038844 5.8359e-05
1.3195 0.0016049 0.00024194 7.4837e-05
1.3285 0.0014682 0.0002351 6.8549e-05
1.3375 0.0013203 0.00041413 6.2321e-05
1.3465 0.00081026 0.00043444 3.816e-05
1.3555 0.0018362 0.00029033 8.7132e-05
1.3645 0.0011309 0.00022178 5.2564e-05
1.3735 0.001432 0.00027559 6.6477e-05
1.3825 0.0013605 0.00026183 6.3977e-05
1.3915 0.001285 0.00024729 5.9037e-05
1.4095 0.00099755 0.00024194 4.6416e-05
1.4185 0.0011001 0.00025238 5.0371e-05
1.4275 0.0011257 0.00031221 5.2601e-05
1.4545 0.00087898 0.00026502 4.0546e-05
