Measurement E12M35

You are not logged in.

Experiment: E1D and E6A runs CLAS data, 2005

Spokespersons: M. Osipenko

Publications:

Quantity measured: F2, dimensionless
Proton structure function.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: inclusive, polarization: none

Q2 : 2.025 GeV2
W : 1.65077267207003 — 3.15405115339427 GeV
xb : 0.2395 — 1.6435

Observable quantity measured (Y axis): F2, dimensionless

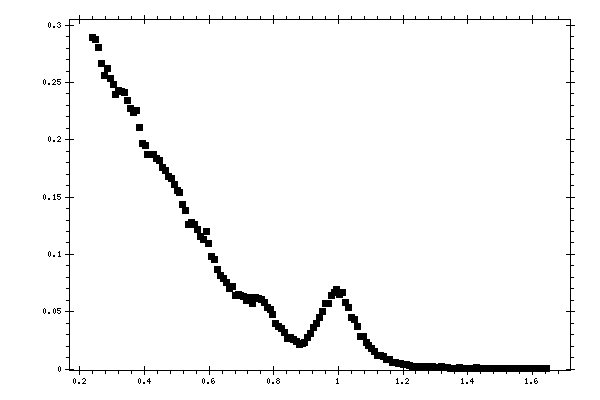

Plot measurement data

Parameter (X axis): x, dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

x,
dimensionless 		F2,
dimensionless 		Data errors,
dimensionless 		Systematic errors,
dimensionless
0.2395 0.28919 0.0008725 0.01437
0.2485 0.28784 0.00093882 0.014342
0.2575 0.28061 0.0010723 0.013917
0.2665 0.26672 0.0011401 0.013153
0.2755 0.25572 0.0011709 0.012608
0.2845 0.26206 0.0011696 0.012945
0.2935 0.25384 0.001118 0.012478
0.3025 0.24843 0.0011023 0.012223
0.3115 0.23948 0.0011476 0.011787
0.3205 0.24312 0.0012262 0.012007
0.3295 0.24212 0.0011963 0.011955
0.3385 0.24093 0.0012436 0.011945
0.3475 0.23469 0.0012355 0.011592
0.3565 0.22714 0.0012699 0.011199
0.3655 0.22398 0.0012937 0.011044
0.3745 0.226 0.0013405 0.01117
0.3835 0.2104 0.0012899 0.010377
0.3925 0.19651 0.001117 0.0097042
0.4015 0.19514 0.0011326 0.0096354
0.4105 0.18683 0.0011351 0.0092134
0.4195 0.18689 0.0011504 0.0092616
0.4285 0.18685 0.0011717 0.0092192
0.4375 0.18396 0.0011939 0.0090676
0.4465 0.18166 0.0012105 0.0089693
0.4555 0.1758 0.0012337 0.0086771
0.4645 0.1733 0.0012094 0.0085464
0.4735 0.16785 0.0012179 0.0082703
0.4825 0.1659 0.0012482 0.0082134
0.4915 0.16099 0.0012425 0.0079207
0.5005 0.1554 0.0012359 0.007683
0.5095 0.15382 0.0012192 0.0076246
0.5185 0.14331 0.0011784 0.0070904
0.5275 0.13848 0.0011663 0.0068763
0.5365 0.12642 0.0011139 0.0062258
0.5455 0.12753 0.0010995 0.0063236
0.5545 0.1264 0.0011523 0.0062778
0.5635 0.12132 0.001129 0.0059931
0.5725 0.11604 0.0011087 0.0057336
0.5815 0.11316 0.0011151 0.0055997
0.5905 0.11994 0.0012217 0.0060042
0.5995 0.10986 0.0011715 0.0054712
0.6085 0.097887 0.0011158 0.0048531
0.6175 0.095867 0.0011009 0.0047685
0.6265 0.087119 0.0010422 0.0042917
0.6355 0.081548 0.0010855 0.004044
0.6445 0.078716 0.0010575 0.003898
0.6535 0.075895 0.0010823 0.0037636
0.6625 0.070113 0.0010373 0.0034449
0.6715 0.0724 0.0010072 0.0036167
0.6805 0.063969 0.00092971 0.0031407
0.6895 0.065324 0.0010143 0.0032274
0.6985 0.063881 0.0010081 0.0031483
0.7075 0.063209 0.00096915 0.0031223
0.7165 0.059846 0.0010122 0.0029559
0.7255 0.062669 0.0010106 0.0030906
0.7345 0.057566 0.00096278 0.0028508
0.7435 0.062004 0.0010278 0.0031323
0.7525 0.061465 0.0010805 0.0030457
0.7615 0.060507 0.0011581 0.003066
0.7705 0.057806 0.001098 0.0029219
0.7795 0.05364 0.0010835 0.002671
0.7885 0.051588 0.0010989 0.0026286
0.7975 0.047477 0.0010864 0.002394
0.8065 0.039415 0.00095754 0.0019642
0.8155 0.037362 0.0008524 0.0018638
0.8245 0.035311 0.00088598 0.0017401
0.8335 0.032122 0.0007539 0.0015959
0.8425 0.02634 0.00077263 0.0012658
0.8515 0.027558 0.00070716 0.0013592
0.8605 0.02595 0.00069198 0.0012604
0.8695 0.023925 0.00063899 0.001155
0.8785 0.021302 0.00060552 0.001021
0.8875 0.022304 0.00058927 0.0010647
0.8965 0.02311 0.00058611 0.0012108
0.9055 0.027127 0.00062267 0.0014037
0.9145 0.030808 0.00070902 0.0016045
0.9235 0.036587 0.0007633 0.0019137
0.9325 0.039969 0.00083909 0.0020962
0.9415 0.045251 0.00094818 0.0024236
0.9505 0.050305 0.0010003 0.0027103
0.9595 0.056828 0.0011811 0.0031169
0.9685 0.056994 0.0012486 0.0031677
0.9775 0.064036 0.0012674 0.0035577
0.9865 0.066528 0.0014295 0.0037873
0.9955 0.069107 0.0014195 0.0039034
1.0045 0.06498 0.0014489 0.0036908
1.0135 0.066706 0.0014388 0.0037958
1.0225 0.057694 0.0013377 0.0032665
1.0315 0.053963 0.0012314 0.0030551
1.0405 0.044584 0.0011535 0.0025225
1.0495 0.043351 0.0010757 0.0023969
1.0585 0.037165 0.00099517 0.002065
1.0675 0.02859 0.0008789 0.0015918
1.0765 0.028741 0.00095593 0.0015888
1.0855 0.023198 0.00077092 0.0012713
1.0945 0.020133 0.00076988 0.0010869
1.1035 0.017561 0.00076853 0.00098545
1.1125 0.014894 0.00058091 0.0007896
1.1215 0.012184 0.00060994 0.0006575
1.1305 0.011864 0.00056654 0.00063697
1.1395 0.010484 0.00051989 0.00056549
1.1485 0.0084031 0.00052113 0.00045485
1.1575 0.0086598 0.00052958 0.00047557
1.1665 0.0056609 0.00035396 0.00029661
1.1755 0.0055543 0.00044391 0.00030845
1.1845 0.0050924 0.00038333 0.00027051
1.1935 0.0049435 0.00037369 0.00023821
1.2025 0.0038316 0.00044336 0.00023138
1.2115 0.0035468 0.00039688 0.00016971
1.2205 0.0034543 0.00041088 0.0001656
1.2295 0.0023401 0.00025532 0.0001119
1.2385 0.0024172 0.00037523 0.00011577
1.2475 0.0025548 0.00026781 0.00012259
1.2565 0.0025377 0.00027052 0.00012101
1.2655 0.0022858 0.00025398 0.00010886
1.2745 0.0015563 0.00033582 7.3925e-05
1.2835 0.001752 0.00036738 8.4441e-05
1.2925 0.0017938 0.00022782 8.5092e-05
1.3015 0.0015892 0.0002183 7.5208e-05
1.3105 0.0015004 0.00021886 7.214e-05
1.3195 0.0019304 0.00023944 9.2311e-05
1.3285 0.0012592 0.00020163 6.0274e-05
1.3375 0.00094025 0.00016368 4.4491e-05
1.3465 0.00083704 0.00015282 3.9438e-05
1.3555 0.00076197 0.00035826 3.6486e-05
1.3645 0.0007752 0.0001465 3.6628e-05
1.3735 0.00095354 0.00016856 4.5328e-05
1.3825 0.00061546 0.0003465 2.9395e-05
1.3915 0.00064 0.00014683 3.0427e-05
1.4005 0.00080429 0.00016417 3.8311e-05
1.4095 0.00050956 0.0003607 2.4235e-05
1.4185 0.00064325 0.00014384 3.0693e-05
1.4275 0.00097518 0.00018429 4.6266e-05
1.4365 0.00070471 0.00014694 3.3539e-05
1.4455 0.00074091 0.00016168 3.5771e-05
1.4545 0.0006411 0.00016028 3.0343e-05
1.4635 0.00044826 0.00036572 2.1356e-05
1.4815 0.00033267 0.00011089 1.5848e-05
1.4905 0.00038782 0.00011693 1.8606e-05
1.4995 0.0002357 8.9088e-05 1.1047e-05
1.5085 0.00033049 0.00010451 1.5451e-05
1.5175 0.00056987 0.00016451 2.8924e-05
1.5265 0.00034574 0.00012224 1.7467e-05
1.5355 0.00034846 0.00011615 1.6903e-05
1.5445 0.00040403 0.00012182 1.9255e-05
1.5535 0.00036388 0.00010971 1.7197e-05
1.5625 0.00016217 8.1084e-05 7.7519e-06
1.5715 0.00045972 0.00015324 2.3385e-05
1.5805 0.00016889 7.553e-05 7.8969e-06
1.5895 0.00021932 9.8083e-05 1.0235e-05
1.5985 0.00019845 8.8748e-05 9.3487e-06
1.6075 0.00032043 0.00011329 1.5157e-05
1.6165 0.00013354 7.7102e-05 6.2706e-06
1.6255 0.00031103 0.00010997 1.4562e-05
1.6345 0.00029572 0.00011177 1.3787e-05
1.6435 9.0085e-05 6.37e-05 4.3291e-06
