Measurement E12M40

You are not logged in.

Experiment: E1D and E6A runs CLAS data, 2005

Spokespersons: M. Osipenko

Publications:

Quantity measured: F2, dimensionless
Proton structure function.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: inclusive, polarization: none

Q2 : 2.275 GeV2
W : 1.61167418175167 — 3.17456694873355 GeV
xb : 0.2575 — 1.6795

Observable quantity measured (Y axis): F2, dimensionless

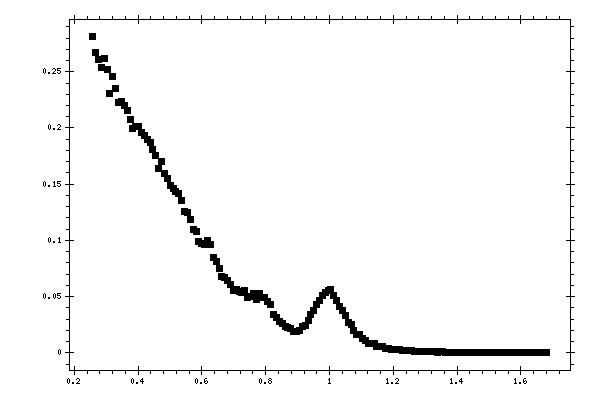

Plot measurement data

Parameter (X axis): x, dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

x,
dimensionless 		F2,
dimensionless 		Data errors,
dimensionless 		Systematic errors,
dimensionless
0.2575 0.28099 0.0009498 0.01452
0.2665 0.26686 0.0010005 0.013774
0.2755 0.26133 0.00097914 0.013483
0.2845 0.25375 0.0010042 0.013105
0.2935 0.26168 0.0010925 0.013607
0.3025 0.25159 0.0011387 0.013
0.3115 0.23084 0.0011696 0.011867
0.3205 0.24589 0.0013001 0.012702
0.3295 0.23519 0.0013476 0.012112
0.3385 0.22259 0.0012815 0.011419
0.3475 0.22369 0.0013063 0.01149
0.3565 0.22037 0.0013302 0.011285
0.3655 0.21535 0.0012981 0.011079
0.3745 0.20793 0.0012626 0.010705
0.3835 0.19939 0.0012827 0.010215
0.3925 0.20156 0.0013919 0.010355
0.4015 0.20107 0.0014261 0.01033
0.4105 0.19563 0.0013849 0.010046
0.4195 0.19364 0.0013743 0.0099757
0.4285 0.1901 0.0014029 0.0098073
0.4375 0.18718 0.0012658 0.0096422
0.4465 0.18091 0.0011958 0.0093694
0.4555 0.17527 0.001191 0.0090673
0.4645 0.16434 0.0011505 0.0084565
0.4735 0.1705 0.0012484 0.0088631
0.4825 0.15961 0.0011784 0.0082241
0.4915 0.15496 0.00118 0.0079654
0.5005 0.14922 0.0012389 0.0077179
0.5095 0.14654 0.0012118 0.0075501
0.5185 0.14322 0.0011909 0.0073835
0.5275 0.1417 0.0012781 0.0073446
0.5365 0.13508 0.0012061 0.0069598
0.5455 0.12579 0.0012058 0.006521
0.5545 0.12526 0.0012125 0.0064702
0.5635 0.11876 0.0012779 0.0061618
0.5725 0.10971 0.0011902 0.0056665
0.5815 0.10783 0.001161 0.0055752
0.5905 0.099183 0.0011346 0.0050991
0.5995 0.097069 0.0011158 0.0049995
0.6085 0.09658 0.0011304 0.0049856
0.6175 0.099829 0.0011779 0.0051663
0.6265 0.095974 0.0012257 0.005001
0.6355 0.085247 0.0011621 0.0043914
0.6445 0.081546 0.0011463 0.0042096
0.6535 0.075234 0.0010376 0.0038593
0.6625 0.068047 0.0010334 0.0034826
0.6715 0.067235 0.0010087 0.0034552
0.6805 0.064179 0.0010448 0.0033029
0.6895 0.060574 0.0010166 0.0031372
0.6985 0.055888 0.00097083 0.0028603
0.7075 0.056509 0.00099612 0.00292
0.7165 0.054911 0.00096063 0.0028484
0.7255 0.053324 0.00099542 0.0027455
0.7345 0.055819 0.00099012 0.0028972
0.7435 0.04962 0.00093808 0.002566
0.7525 0.05059 0.00094958 0.002588
0.7615 0.053087 0.00098382 0.0027758
0.7705 0.047229 0.00094166 0.0024297
0.7795 0.052523 0.00097993 0.0027587
0.7885 0.049491 0.00098157 0.0025916
0.7975 0.049382 0.00099465 0.0026217
0.8065 0.045796 0.0009922 0.0024199
0.8155 0.042962 0.0008923 0.0022368
0.8245 0.034372 0.00083283 0.0017627
0.8335 0.031278 0.00073414 0.0016123
0.8425 0.027759 0.00072731 0.001428
0.8515 0.025863 0.00067147 0.0013199
0.8605 0.023252 0.00063186 0.0011846
0.8695 0.022239 0.00058366 0.001128
0.8785 0.021358 0.00056888 0.0010787
0.8875 0.019164 0.00053557 0.00096252
0.8965 0.019126 0.00049097 0.00095811
0.9055 0.019949 0.0006139 0.00099843
0.9145 0.023243 0.00055131 0.0011661
0.9235 0.023979 0.00066526 0.0012062
0.9325 0.029202 0.00067364 0.0014814
0.9415 0.033864 0.00079078 0.0017348
0.9505 0.038022 0.00092246 0.0019532
0.9595 0.042674 0.0010662 0.0022157
0.9685 0.047017 0.0010362 0.0024632
0.9775 0.050908 0.001207 0.0026928
0.9865 0.053463 0.001309 0.0028375
0.9955 0.055057 0.0012417 0.002935
1.0045 0.056287 0.0013486 0.0030186
1.0135 0.051124 0.001358 0.0027427
1.0225 0.046831 0.0012166 0.0025084
1.0315 0.041276 0.0012666 0.0022093
1.0405 0.037934 0.0010934 0.0020185
1.0495 0.033107 0.0010123 0.0017512
1.0585 0.026948 0.0010014 0.0014205
1.0675 0.025007 0.00088094 0.0013095
1.0765 0.020217 0.00082554 0.0010523
1.0855 0.01678 0.00067488 0.00087105
1.0945 0.016401 0.00067046 0.00084252
1.1035 0.012574 0.00063485 0.0006465
1.1125 0.011315 0.00055504 0.00057886
1.1215 0.0087218 0.00044451 0.00044409
1.1305 0.0086692 0.00053348 0.00044056
1.1395 0.0079367 0.00043329 0.00043256
1.1485 0.0057365 0.00050959 0.00029256
1.1575 0.0059956 0.00036221 0.00030337
1.1665 0.0056389 0.00035452 0.00028451
1.1755 0.0043069 0.0003729 0.0002176
1.1845 0.0041414 0.00041805 0.00020854
1.1935 0.0031632 0.0002636 0.00015884
1.2025 0.0033622 0.00033689 0.00016898
1.2115 0.0029086 0.00032376 0.00014666
1.2205 0.0028903 0.00025062 0.00014537
1.2295 0.0022254 0.00030359 0.00011245
1.2385 0.0019813 0.00030756 9.9272e-05
1.2475 0.0017547 0.00019868 8.8007e-05
1.2565 0.0018476 0.00020159 9.2587e-05
1.2655 0.0016181 0.0001934 8.1815e-05
1.2745 0.0014816 0.00018666 7.5131e-05
1.2835 0.0011298 0.00016307 5.6772e-05
1.2925 0.0013399 0.00018234 6.7792e-05
1.3015 0.0011796 0.00017025 5.9614e-05
1.3105 0.0010063 0.0001591 5.0655e-05
1.3195 0.00084408 0.00014476 4.224e-05
1.3285 0.00082018 0.00014277 4.1038e-05
1.3375 0.00054959 0.00026936 2.7694e-05
1.3465 0.00084331 0.00014908 4.2546e-05
1.3555 0.00095613 0.0001551 4.7385e-05
1.3645 0.00074655 0.00013409 3.6987e-05
1.3735 0.0001496 0.00037277 7.5279e-06
1.3825 0.00056267 0.00011996 2.8876e-05
1.3915 0.0004167 0.00010759 2.1342e-05
1.4005 0.00071121 0.00014224 3.5876e-05
1.4095 0.00031076 8.3054e-05 1.5337e-05
1.4185 0.00064942 0.00013846 3.3619e-05
1.4275 0.00050888 0.00011379 2.5297e-05
1.4365 0.00052786 0.00011254 2.6501e-05
1.4455 0.00043002 0.0001043 2.1277e-05
1.4545 0.00043607 0.00011259 2.2377e-05
1.4635 0.00016265 0.00030073 8.1806e-06
1.4725 0.00030101 8.3485e-05 1.5119e-05
1.4815 0.0002078 7.3467e-05 1.0428e-05
1.4905 0.00039218 0.00010126 1.9665e-05
1.4995 0.00020774 8.4809e-05 1.0667e-05
1.5085 0.0002711 8.1739e-05 1.348e-05
1.5175 0.00025528 8.0727e-05 1.2573e-05
1.5265 0.00027021 8.1472e-05 1.3664e-05
1.5355 0.00018634 6.5882e-05 9.174e-06
1.5445 0.00013944 5.6925e-05 6.7649e-06
1.5535 0.00025345 9.5795e-05 1.2806e-05
1.5625 0.00021118 7.4663e-05 1.0584e-05
1.5715 0.00011823 5.9116e-05 5.9604e-06
1.5805 0.00023139 8.1808e-05 1.2087e-05
1.5895 0.0001847 7.5402e-05 9.2702e-06
1.5985 0.00025126 7.9454e-05 1.2472e-05
1.6165 0.00021797 8.8988e-05 1.1618e-05
1.6255 0.00023372 8.2633e-05 1.1712e-05
1.6435 0.00020863 7.3761e-05 1.0357e-05
1.6615 0.00016518 6.7432e-05 8.2035e-06
1.6795 0.00011887 5.9437e-05 6.016e-06
