Measurement E12M43

You are not logged in.

Experiment: E1D and E6A runs CLAS data, 2005

Spokespersons: M. Osipenko

Publications:

Quantity measured: F2, dimensionless
Proton structure function.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: inclusive, polarization: none

Q2 : 2.425 GeV2
W : 1.59763837638917 — 3.14564805948153 GeV
xb : 0.2755 — 1.6615

Observable quantity measured (Y axis): F2, dimensionless

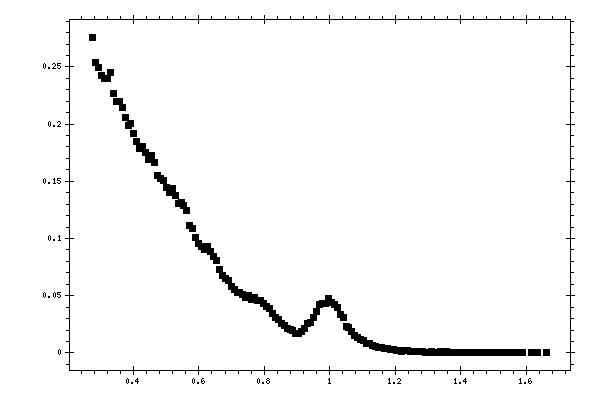

Plot measurement data

Parameter (X axis): x, dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

x,
dimensionless
F2,
dimensionless
Data errors,
dimensionless
Systematic errors,
dimensionless
0.2755 0.27606 0.0010778 0.014707
0.2845 0.25356 0.0010119 0.013499
0.2935 0.24911 0.0010961 0.01326
0.3025 0.24224 0.0010329 0.012858
0.3115 0.23962 0.0010715 0.012716
0.3205 0.23956 0.0011544 0.012742
0.3295 0.24501 0.0011908 0.013078
0.3385 0.22637 0.0012389 0.012016
0.3475 0.21971 0.0013051 0.011668
0.3565 0.2194 0.0013557 0.011622
0.3655 0.21439 0.0014338 0.011356
0.3745 0.20548 0.0014033 0.01088
0.3835 0.1986 0.0014011 0.01048
0.3925 0.20095 0.0014254 0.010662
0.4015 0.19199 0.0013923 0.010129
0.4105 0.18508 0.0013991 0.0097983
0.4195 0.17889 0.0013012 0.0094273
0.4285 0.18077 0.0013001 0.0095816
0.4375 0.17542 0.0013686 0.0092679
0.4465 0.16939 0.0014537 0.008929
0.4555 0.17281 0.0014972 0.0091604
0.4645 0.16656 0.0015004 0.0088303
0.4735 0.15525 0.0012843 0.0082048
0.4825 0.15252 0.0012429 0.0081064
0.4915 0.15049 0.0012229 0.0080009
0.5005 0.14456 0.0011931 0.0076721
0.5095 0.14053 0.0012007 0.0074585
0.5185 0.1435 0.0012121 0.0076534
0.5275 0.13781 0.0012321 0.0073464
0.5365 0.13033 0.0011876 0.0068876
0.5455 0.13173 0.0012315 0.0069901
0.5545 0.12842 0.001241 0.0068725
0.5635 0.12412 0.001256 0.0066101
0.5725 0.11128 0.0011903 0.0059095
0.5815 0.10841 0.0011253 0.0057711
0.5905 0.10071 0.0011245 0.0053202
0.5995 0.095523 0.0011033 0.0050724
0.6085 0.093212 0.0011236 0.0049787
0.6175 0.090069 0.0011313 0.0047924
0.6265 0.092827 0.0011518 0.00494
0.6355 0.088765 0.0011793 0.0047349
0.6445 0.084125 0.0011643 0.0045016
0.6535 0.080883 0.0011595 0.0042975
0.6625 0.072863 0.0011125 0.0038888
0.6715 0.067507 0.0010361 0.0035777
0.6805 0.064828 0.0010205 0.0034596
0.6895 0.062982 0.0010213 0.0033772
0.6985 0.058387 0.001093 0.0031236
0.7075 0.05519 0.00094724 0.0029479
0.7165 0.052659 0.0010255 0.0028157
0.7255 0.052918 0.00096333 0.0028258
0.7345 0.05072 0.00095721 0.0026795
0.7435 0.048666 0.00092659 0.0025903
0.7525 0.04979 0.0010664 0.0026533
0.7615 0.047055 0.00095591 0.0025027
0.7705 0.047994 0.00096394 0.0025636
0.7795 0.046042 0.00093245 0.0024606
0.7885 0.045492 0.0009943 0.002434
0.7975 0.042877 0.00094162 0.0022939
0.8065 0.040526 0.0010373 0.0021699
0.8155 0.038765 0.00093773 0.0020706
0.8245 0.034687 0.00085208 0.0018495
0.8335 0.031244 0.00084785 0.0016572
0.8425 0.029137 0.00078545 0.0015416
0.8515 0.025528 0.00076349 0.001348
0.8605 0.023586 0.0007418 0.0012403
0.8695 0.020964 0.0007233 0.0010971
0.8785 0.020526 0.00057601 0.0010724
0.8875 0.019263 0.00060561 0.00099993
0.8965 0.017148 0.00049753 0.00088592
0.9055 0.016921 0.00047075 0.00087388
0.9145 0.018539 0.00061907 0.00095873
0.9235 0.021279 0.00066711 0.0011016
0.9325 0.025521 0.00073556 0.0013264
0.9415 0.026973 0.00088802 0.0014188
0.9505 0.031182 0.00090698 0.0016461
0.9595 0.036138 0.00098749 0.0019195
0.9685 0.042583 0.0010381 0.0022857
0.9775 0.043407 0.0011385 0.0023517
0.9865 0.043535 0.0012665 0.0023717
0.9955 0.047149 0.0012245 0.0025814
1.0045 0.044344 0.0012375 0.0024375
1.0135 0.042676 0.0013056 0.0023426
1.0225 0.039454 0.0011289 0.0021511
1.0315 0.03312 0.001025 0.0018034
1.0405 0.030641 0.001009 0.0016692
1.0495 0.023452 0.00095565 0.0012704
1.0585 0.02183 0.00073214 0.0011748
1.0675 0.018764 0.00084379 0.0010074
1.0765 0.014922 0.00067431 0.00079723
1.0855 0.013714 0.00059546 0.00072632
1.0945 0.011655 0.00055994 0.00061829
1.1035 0.010441 0.0004806 0.00054996
1.1125 0.0079909 0.00041431 0.00041788
1.1215 0.0084695 0.00043678 0.0004456
1.1305 0.006275 0.00046638 0.00032758
1.1395 0.0057548 0.00039777 0.00029902
1.1485 0.0043057 0.00036543 0.00022467
1.1575 0.0046727 0.00031647 0.00024465
1.1665 0.0037957 0.0002853 0.0001968
1.1755 0.0036033 0.00032906 0.00018534
1.1845 0.0031387 0.00025976 0.00016348
1.1935 0.0026102 0.00040276 0.0001352
1.2025 0.0021918 0.00029058 0.00011371
1.2115 0.0019197 0.00028302 9.9279e-05
1.2205 0.0016026 0.00032436 8.2581e-05
1.2295 0.0019832 0.00029988 0.0001032
1.2385 0.0016833 0.00019183 8.7426e-05
1.2475 0.0014036 0.0002561 7.2192e-05
1.2565 0.0012544 0.00016471 6.467e-05
1.2655 0.0014974 0.00018432 7.7946e-05
1.2745 0.0013208 0.00016912 6.8131e-05
1.2835 0.00092366 0.00014252 4.7809e-05
1.2925 0.00075056 0.00034226 3.8508e-05
1.3015 0.00076335 0.00023943 3.9288e-05
1.3105 0.00097098 0.00014807 5.0006e-05
1.3195 0.0005141 0.00025197 2.6827e-05
1.3285 0.00071332 0.00012417 3.647e-05
1.3375 0.00080688 0.00014732 4.2424e-05
1.3465 0.00048452 0.00027278 2.5022e-05
1.3555 0.00087147 0.00014731 4.4789e-05
1.3645 0.0005791 0.00011582 2.9829e-05
1.3735 0.00065288 0.00013613 3.3861e-05
1.3825 0.00031823 0.00025964 1.6316e-05
1.3915 0.00049904 0.00011449 2.5843e-05
1.4005 0.00051288 0.00011192 2.6338e-05
1.4095 0.00050243 0.00010964 2.6028e-05
1.4185 0.00026872 8.1023e-05 1.3801e-05
1.4275 0.00041358 9.4883e-05 2.113e-05
1.4365 0.00036171 9.0427e-05 1.834e-05
1.4545 0.000433 0.0001118 2.252e-05
1.4635 0.00028946 8.7275e-05 1.4779e-05
1.4725 0.00028374 8.9728e-05 1.48e-05
1.4815 0.00037322 0.00011253 1.9403e-05
1.4905 4.4152e-06 0.00022689 2.2427e-07
1.4995 0.00026994 8.139e-05 1.3769e-05
1.5085 0.00011642 5.8212e-05 6.0111e-06
1.5265 0.00020437 7.7243e-05 1.0353e-05
1.5355 0.0001187 5.3086e-05 5.988e-06
1.5445 0.00030138 8.7002e-05 1.5347e-05
1.5535 8.5226e-05 4.9206e-05 4.4617e-06
1.5625 0.00016017 8.0085e-05 9.2718e-06
1.5715 0.00010227 5.9048e-05 5.2021e-06
1.5805 0.00025059 7.5556e-05 1.263e-05
1.5895 0.00024384 9.2162e-05 1.2708e-05
1.6165 0.00018348 7.4906e-05 9.9489e-06
1.6255 0.00016921 6.9079e-05 8.6491e-06
1.6345 0.00019705 7.4476e-05 1.0141e-05
1.6615 2.6005e-05 2.6005e-05 1.343e-06
