Measurement E12M45

You are not logged in.

Experiment: E1D and E6A runs CLAS data, 2005

Spokespersons: M. Osipenko

Publications:

Quantity measured: F2, dimensionless
Proton structure function.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: inclusive, polarization: none

Q2 : 2.525 GeV2
W : 1.60391076316412 — 3.09773954605673 GeV
xb : 0.2935 — 1.5985

Observable quantity measured (Y axis): F2, dimensionless

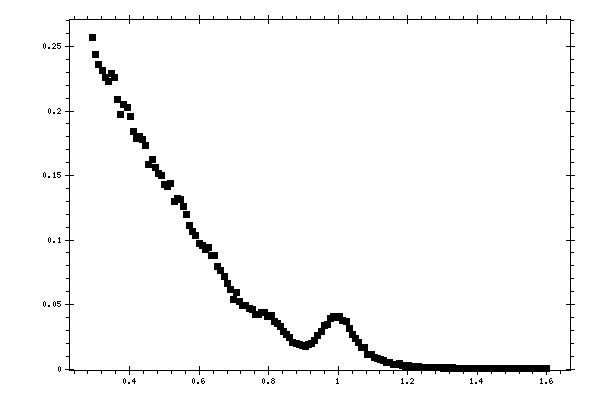

Plot measurement data

Parameter (X axis): x, dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

x,
dimensionless 		F2,
dimensionless 		Data errors,
dimensionless 		Systematic errors,
dimensionless
0.2935 0.25666 0.0010663 0.013948
0.3025 0.24356 0.0010838 0.01323
0.3115 0.23608 0.0010935 0.012792
0.3205 0.23144 0.0010825 0.012525
0.3295 0.22595 0.0011041 0.01221
0.3385 0.22306 0.0011543 0.012068
0.3475 0.22894 0.0012107 0.012467
0.3565 0.22621 0.0012751 0.012329
0.3655 0.2089 0.0013115 0.011298
0.3745 0.19745 0.0013304 0.010664
0.3835 0.20543 0.00141 0.011143
0.3925 0.20251 0.0014711 0.01099
0.4015 0.19606 0.0014501 0.010616
0.4105 0.18427 0.0014402 0.0099508
0.4195 0.17864 0.001448 0.0096292
0.4285 0.17992 0.0014087 0.0096887
0.4375 0.17771 0.0014654 0.0096022
0.4465 0.17307 0.0014858 0.0093384
0.4555 0.15818 0.0013559 0.0085116
0.4645 0.16213 0.00137 0.0087444
0.4735 0.15601 0.0013738 0.0084401
0.4825 0.15127 0.0014045 0.0081856
0.4915 0.15041 0.0013463 0.008134
0.5005 0.14272 0.0012838 0.0076955
0.5095 0.14144 0.0013831 0.007639
0.5185 0.14377 0.0013927 0.007803
0.5275 0.13017 0.0013242 0.0069967
0.5365 0.13235 0.0012831 0.0071742
0.5455 0.13157 0.0012703 0.0071826
0.5545 0.12603 0.001248 0.0068618
0.5635 0.11976 0.0012136 0.0064993
0.5725 0.11138 0.0012112 0.0060825
0.5815 0.10679 0.0011788 0.0057652
0.5905 0.10324 0.0011455 0.0056467
0.5995 0.097578 0.0011647 0.0053078
0.6085 0.096127 0.0011969 0.0052198
0.6175 0.092528 0.0011672 0.0050231
0.6265 0.09386 0.0011363 0.0051187
0.6355 0.087832 0.0011096 0.0047765
0.6445 0.087645 0.0012061 0.0047937
0.6535 0.079094 0.0011031 0.004301
0.6625 0.076092 0.0010986 0.0041333
0.6715 0.071614 0.0010849 0.0039063
0.6805 0.066094 0.00112 0.0035941
0.6895 0.061634 0.00096579 0.0033636
0.6985 0.054074 0.0009974 0.0029103
0.7075 0.059698 0.0010124 0.0032717
0.7165 0.052147 0.00098225 0.0028367
0.7255 0.049208 0.00091231 0.0026688
0.7345 0.049339 0.00093736 0.0026788
0.7435 0.047118 0.00092354 0.0025574
0.7525 0.046217 0.00090482 0.0025052
0.7615 0.042386 0.00088074 0.0023008
0.7705 0.042381 0.00091397 0.0023027
0.7795 0.043796 0.00091974 0.0023907
0.7885 0.043589 0.00092769 0.0023873
0.7975 0.040968 0.0009928 0.0022462
0.8065 0.041806 0.000927 0.0022903
0.8155 0.037051 0.00098386 0.0020396
0.8245 0.035012 0.00092627 0.0019175
0.8335 0.032896 0.00087939 0.001799
0.8425 0.029216 0.00079905 0.0015871
0.8515 0.026518 0.00074893 0.0014379
0.8605 0.024258 0.0007208 0.0013089
0.8695 0.020859 0.00064312 0.0011197
0.8785 0.020113 0.00059866 0.0010777
0.8875 0.018938 0.0006016 0.0010061
0.8965 0.018306 0.0005665 0.00097194
0.9055 0.017714 0.00051608 0.00093532
0.9145 0.019264 0.00055545 0.0010138
0.9235 0.019816 0.00060132 0.0010478
0.9325 0.022414 0.00064496 0.0011901
0.9415 0.026135 0.00072305 0.0013953
0.9505 0.029222 0.00087196 0.0015718
0.9595 0.033679 0.00094957 0.0018179
0.9685 0.034742 0.0010564 0.0018984
0.9775 0.039191 0.0010499 0.0021493
0.9865 0.040391 0.0011852 0.0022195
0.9955 0.040075 0.0012564 0.0022203
1.0045 0.040444 0.0011965 0.0022574
1.0135 0.037955 0.0011741 0.0021175
1.0225 0.037058 0.0012381 0.0020609
1.0315 0.03129 0.0009875 0.0017356
1.0405 0.02709 0.0010061 0.001501
1.0495 0.0236 0.0010217 0.0012974
1.0585 0.020651 0.00086414 0.0011281
1.0675 0.016961 0.00083381 0.00092907
1.0765 0.016741 0.00073725 0.00091195
1.0855 0.011554 0.00070395 0.00062422
1.0945 0.010862 0.00059193 0.00058662
1.1035 0.0086188 0.00052248 0.00046154
1.1125 0.0079352 0.00055735 0.00042454
1.1215 0.0071066 0.0004217 0.00038022
1.1305 0.0062447 0.00046038 0.0003328
1.1395 0.0054023 0.00044833 0.00028832
1.1485 0.0048196 0.00048273 0.00025587
1.1575 0.0034178 0.00037847 0.00018179
1.1665 0.0038727 0.00048061 0.00020732
1.1755 0.0039672 0.00031969 0.00021141
1.1845 0.0027134 0.0002611 0.00014389
1.1935 0.0022695 0.00031188 0.0001192
1.2025 0.0025189 0.00025709 0.00013529
1.2115 0.0018272 0.00031559 9.7196e-05
1.2205 0.0016231 0.00029283 8.5985e-05
1.2295 0.0018431 0.00020479 9.7146e-05
1.2385 0.001534 0.00030089 8.1357e-05
1.2475 0.001121 0.00026126 5.9183e-05
1.2565 0.00094458 0.00026468 4.9709e-05
1.2655 0.0013653 0.00018409 7.3134e-05
1.2745 0.0011071 0.00016148 5.8704e-05
1.2835 0.00080414 0.00013791 4.2262e-05
1.2925 0.0010123 0.00015437 5.3563e-05
1.3015 0.00061729 0.00025038 3.2585e-05
1.3105 0.00090705 0.00014714 4.8214e-05
1.3195 0.00075749 0.00012991 3.9565e-05
1.3285 0.00085748 0.00014706 4.5048e-05
1.3375 0.00073881 0.00012671 3.8744e-05
1.3465 0.00077129 0.00013426 4.0273e-05
1.3555 0.00049905 0.0001089 2.623e-05
1.3645 0.00068418 0.00013167 3.6549e-05
1.3735 0.00043175 0.00010177 2.2813e-05
1.3825 0.00048809 0.00011197 2.5837e-05
1.3915 0.00062103 0.0001324 3.3522e-05
1.4005 0.00052432 0.00011442 2.7892e-05
1.4095 0.00031119 8.6309e-05 1.6606e-05
1.4185 0.00031466 9.4872e-05 1.6607e-05
1.4275 0.0005374 0.0001097 2.7966e-05
1.4365 0.00042206 9.948e-05 2.2401e-05
1.4455 0.00021427 6.7757e-05 1.1218e-05
1.4545 0.00021944 7.3147e-05 1.1377e-05
1.4635 0.00026296 7.9285e-05 1.3853e-05
1.4725 0.00030787 0.00010262 1.7148e-05
1.4815 0.00037623 9.1249e-05 1.9559e-05
1.4905 0.0003692 0.0001024 1.9307e-05
1.4995 0.0001426 5.8218e-05 7.5143e-06
1.5085 0.0001938 7.3248e-05 1.0301e-05
1.5175 0.00018778 6.2593e-05 9.8618e-06
1.5265 0.00016249 6.1415e-05 8.3381e-06
1.5355 0.0001126 5.0355e-05 5.819e-06
1.5445 0.00010943 4.8941e-05 5.7041e-06
1.5535 0.00021561 7.6231e-05 1.1034e-05
1.5625 0.00015521 5.4874e-05 7.9827e-06
1.5715 0.00021414 7.1381e-05 1.1155e-05
1.5805 0.00015906 6.4935e-05 8.4079e-06
1.5985 7.7948e-05 4.5003e-05 4.1975e-06
