Measurement E12M47

You are not logged in.

Experiment: E1D and E6A runs CLAS data, 2005

Spokespersons: M. Osipenko

Publications:

Quantity measured: F2, dimensionless
Proton structure function.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: inclusive, polarization: none

Q2 : 2.625 GeV2
W : 1.59805840631061 — 3.13635230765919 GeV
xb : 0.2935 — 1.5805

Observable quantity measured (Y axis): F2, dimensionless

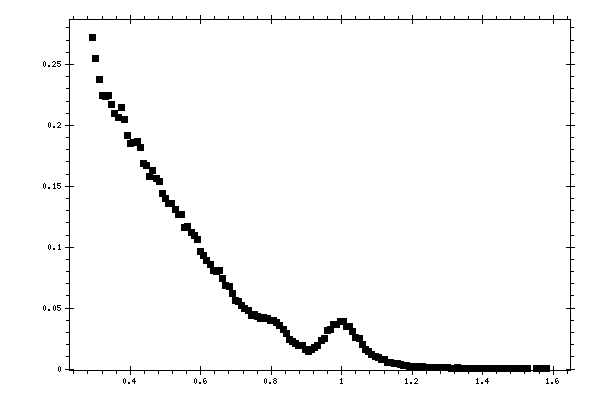

Plot measurement data

Parameter (X axis): x, dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

x,
dimensionless 		F2,
dimensionless 		Data errors,
dimensionless 		Systematic errors,
dimensionless
0.2935 0.27173 0.0011249 0.015118
0.3025 0.25525 0.0011232 0.014157
0.3115 0.23792 0.0010908 0.013183
0.3205 0.22476 0.0011275 0.012442
0.3295 0.22392 0.0011567 0.012393
0.3385 0.22427 0.0011379 0.012372
0.3475 0.21704 0.0011662 0.011988
0.3565 0.21003 0.0011828 0.011603
0.3655 0.20656 0.0012293 0.011437
0.3745 0.21473 0.0012813 0.011944
0.3835 0.20522 0.0013326 0.011386
0.3925 0.19173 0.0013595 0.01059
0.4015 0.18538 0.0013935 0.010203
0.4105 0.1859 0.001434 0.010262
0.4195 0.1864 0.001469 0.010309
0.4285 0.18181 0.0015041 0.010097
0.4375 0.16834 0.0014702 0.0092787
0.4465 0.16697 0.0014444 0.009204
0.4555 0.15794 0.001451 0.008668
0.4645 0.16322 0.0014754 0.0090142
0.4735 0.15644 0.0015118 0.0086217
0.4825 0.1538 0.0014991 0.0084903
0.4915 0.14394 0.0014325 0.007929
0.5005 0.13962 0.0013375 0.0076881
0.5095 0.13546 0.0012047 0.0074446
0.5185 0.13576 0.0013139 0.0075381
0.5275 0.13113 0.001353 0.0072314
0.5365 0.12669 0.0013196 0.0069703
0.5455 0.12673 0.0013231 0.0070063
0.5545 0.1165 0.0013356 0.0064334
0.5635 0.11672 0.0013472 0.0064436
0.5725 0.11182 0.0013266 0.0061744
0.5815 0.10926 0.0012794 0.0060606
0.5905 0.10592 0.0012618 0.0058707
0.5995 0.096154 0.0011913 0.0053571
0.6085 0.093182 0.0011991 0.0051539
0.6175 0.089452 0.0011117 0.0049586
0.6265 0.086012 0.0011248 0.0047667
0.6355 0.081013 0.0010618 0.0044688
0.6445 0.080035 0.0011268 0.0044392
0.6535 0.080774 0.0011587 0.0044987
0.6625 0.073932 0.0011167 0.0040794
0.6715 0.068657 0.0010785 0.0038265
0.6805 0.067584 0.0011015 0.0037572
0.6895 0.061919 0.0010157 0.003429
0.6985 0.056572 0.0010363 0.0031366
0.7075 0.055052 0.00096442 0.0030524
0.7165 0.051843 0.00094745 0.0028742
0.7255 0.049845 0.0009755 0.0027631
0.7345 0.048201 0.00092423 0.0026713
0.7435 0.043614 0.00094325 0.0024146
0.7525 0.044466 0.00087401 0.0024614
0.7615 0.042801 0.00089447 0.0023682
0.7705 0.041109 0.00095552 0.0022817
0.7795 0.042399 0.00090245 0.0023545
0.7885 0.041059 0.00093103 0.0022808
0.7975 0.040038 0.00096161 0.0022318
0.8065 0.040126 0.00097239 0.0022436
0.8155 0.038027 0.0008862 0.0021321
0.8245 0.035509 0.0008921 0.0019751
0.8335 0.032367 0.00085622 0.0018048
0.8425 0.029112 0.0008427 0.0016153
0.8515 0.024436 0.000816 0.0013544
0.8605 0.02296 0.0006819 0.001264
0.8695 0.021342 0.00068528 0.0011726
0.8785 0.018933 0.00059758 0.0010346
0.8875 0.019316 0.00055278 0.001054
0.8965 0.016385 0.00060772 0.00088607
0.9055 0.014775 0.00050414 0.00079637
0.9145 0.016373 0.00051603 0.00088639
0.9235 0.017909 0.0005766 0.00096804
0.9325 0.019116 0.00065453 0.0010352
0.9415 0.023121 0.00071517 0.0012619
0.9505 0.025326 0.00078522 0.0013907
0.9595 0.031351 0.00094444 0.0017426
0.9685 0.032753 0.0009268 0.0018257
0.9775 0.03677 0.0011195 0.0020689
0.9865 0.036391 0.0011656 0.002059
0.9955 0.038631 0.0011668 0.0021902
1.0045 0.038605 0.0011121 0.0022016
1.0135 0.034529 0.0012175 0.0019625
1.0225 0.034854 0.0012135 0.001995
1.0315 0.030811 0.0011184 0.0017517
1.0405 0.025584 0.0010382 0.0014474
1.0495 0.024968 0.00088834 0.0014167
1.0585 0.02038 0.00082496 0.0011369
1.0675 0.016114 0.00077542 0.00089172
1.0765 0.014127 0.00074021 0.00078374
1.0855 0.012294 0.00068071 0.00067693
1.0945 0.010483 0.00059575 0.00057738
1.1035 0.0092974 0.00054926 0.00050859
1.1125 0.008024 0.00052356 0.00044144
1.1215 0.0074668 0.00043771 0.0004066
1.1305 0.0052756 0.00043108 0.00028718
1.1395 0.0049658 0.00042284 0.00027016
1.1485 0.0043273 0.00033485 0.00023573
1.1575 0.0042799 0.00040946 0.00023294
1.1665 0.0037376 0.00045173 0.00020249
1.1755 0.0025467 0.00032636 0.00013714
1.1845 0.0030028 0.00028124 0.00016306
1.1935 0.002371 0.00024326 0.00012741
1.2025 0.0015747 0.00030501 8.4558e-05
1.2115 0.0017508 0.00033496 9.5511e-05
1.2205 0.0019834 0.00022603 0.00010703
1.2295 0.0016952 0.00021357 9.3023e-05
1.2385 0.001384 0.00019193 7.4175e-05
1.2475 0.0012575 0.00017609 6.7275e-05
1.2565 0.0013599 0.00018858 7.3712e-05
1.2655 0.001245 0.00018356 6.7159e-05
1.2745 0.00090253 0.00027639 4.8727e-05
1.2835 0.00098053 0.00015503 5.2878e-05
1.2925 0.00091539 0.00016182 4.968e-05
1.3015 0.00106 0.00017195 5.7134e-05
1.3105 0.0005479 0.00011681 2.9238e-05
1.3195 0.00051366 0.00011784 2.7846e-05
1.3285 0.00094984 0.0001706 5.2385e-05
1.3375 0.00047931 0.00011625 2.6122e-05
1.3465 0.00055896 0.00012823 3.0066e-05
1.3555 0.00049084 0.00029102 2.6163e-05
1.3645 0.00058961 0.00013184 3.1283e-05
1.3735 0.0003513 9.7433e-05 1.873e-05
1.3825 0.00042935 0.00011086 2.3137e-05
1.3915 0.00043461 0.00010865 2.2977e-05
1.4005 0.00032097 0.0001015 1.7454e-05
1.4095 0.00043843 0.0001216 2.4299e-05
1.4185 0.00036713 0.00010182 1.9739e-05
1.4275 0.00024797 0.00010123 1.4037e-05
1.4365 0.0002499 7.9025e-05 1.3236e-05
1.4455 0.00012233 6.1163e-05 6.5602e-06
1.4635 0.00012715 5.6862e-05 6.9216e-06
1.4725 0.00022534 9.1996e-05 1.2118e-05
1.4815 0.00013023 6.5117e-05 7.1031e-06
1.4995 0.0001611 6.5769e-05 8.5696e-06
1.5085 0.0003469 0.00013111 1.9798e-05
1.5175 0.00010709 4.7893e-05 5.7002e-06
1.5265 9.0396e-05 5.219e-05 4.8126e-06
1.5535 0.00020936 8.547e-05 1.1472e-05
1.5715 7.2988e-05 4.2139e-05 3.8536e-06
1.5805 0.00019522 7.3788e-05 1.0445e-05
