Measurement E12M49

You are not logged in.

Experiment: E1D and E6A runs CLAS data, 2005

Spokespersons: M. Osipenko

Publications:

Quantity measured: F2, dimensionless
Proton structure function.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: inclusive, polarization: none

Q2 : 2.725 GeV2
W : 1.60892526081542 — 3.13068495995535 GeV
xb : 0.3025 — 1.5175

Observable quantity measured (Y axis): F2, dimensionless

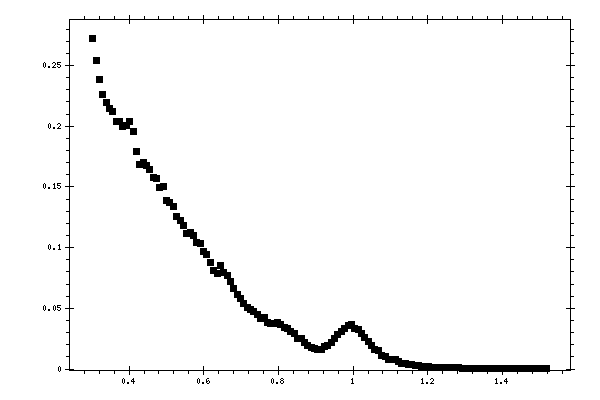

Plot measurement data

Parameter (X axis): x, dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

x,
dimensionless 		F2,
dimensionless 		Data errors,
dimensionless 		Systematic errors,
dimensionless
0.3025 0.27258 0.0012204 0.015521
0.3115 0.25432 0.0011239 0.014467
0.3205 0.23876 0.0011614 0.013525
0.3295 0.226 0.0011107 0.012799
0.3385 0.21934 0.0012261 0.012445
0.3475 0.21488 0.0011927 0.012133
0.3565 0.21187 0.0011806 0.011959
0.3655 0.20367 0.0011771 0.011474
0.3745 0.20408 0.001238 0.011513
0.3835 0.19998 0.0013061 0.01129
0.3925 0.20056 0.0013032 0.011343
0.4015 0.20383 0.0013547 0.011587
0.4105 0.19534 0.0014267 0.011086
0.4195 0.1792 0.0014204 0.010118
0.4285 0.16883 0.0014578 0.0095023
0.4375 0.17048 0.0014494 0.0096016
0.4465 0.16793 0.0015017 0.0094748
0.4555 0.16471 0.0014944 0.0093362
0.4645 0.15805 0.0015999 0.0089429
0.4735 0.15654 0.0015559 0.0088375
0.4825 0.14951 0.0015661 0.0084257
0.4915 0.15017 0.0015164 0.0084659
0.5005 0.13872 0.0014686 0.0078163
0.5095 0.13682 0.00148 0.0077323
0.5185 0.13421 0.0015046 0.0075699
0.5275 0.12586 0.0013439 0.0070805
0.5365 0.12228 0.0013082 0.0069129
0.5455 0.11845 0.0012343 0.0066724
0.5545 0.11198 0.0011632 0.006308
0.5635 0.11264 0.0012221 0.0063625
0.5725 0.1103 0.0012974 0.0062015
0.5815 0.10402 0.001275 0.0058566
0.5905 0.10356 0.0012789 0.0058356
0.5995 0.096708 0.0012291 0.0054947
0.6085 0.094353 0.0012048 0.0053091
0.6175 0.088131 0.0012846 0.0049627
0.6265 0.081004 0.0012223 0.004559
0.6355 0.078544 0.0011413 0.0043956
0.6445 0.085376 0.0012863 0.0048647
0.6535 0.079433 0.0012333 0.0044887
0.6625 0.077428 0.0011714 0.0043798
0.6715 0.071806 0.0011665 0.0040712
0.6805 0.066192 0.001139 0.0037583
0.6895 0.061309 0.0010418 0.0034772
0.6985 0.058085 0.0010342 0.0032898
0.7075 0.053939 0.00096932 0.0030586
0.7165 0.050565 0.00094972 0.002864
0.7255 0.048708 0.00092339 0.0027578
0.7345 0.047243 0.00089029 0.0026701
0.7435 0.044937 0.00088941 0.0025393
0.7525 0.041455 0.00088942 0.0023436
0.7615 0.042487 0.00089421 0.0024024
0.7705 0.037923 0.00086662 0.0021452
0.7795 0.03763 0.00083307 0.002125
0.7885 0.037638 0.00093688 0.002133
0.7975 0.038437 0.00090219 0.0021852
0.8065 0.036982 0.00091649 0.0021115
0.8155 0.034412 0.00095507 0.001961
0.8245 0.03357 0.0008865 0.0019174
0.8335 0.03068 0.00087791 0.0017464
0.8425 0.029222 0.00083445 0.0016582
0.8515 0.025175 0.00083136 0.0014259
0.8605 0.024806 0.00072089 0.0014008
0.8695 0.021428 0.00065974 0.0012061
0.8785 0.019681 0.0006209 0.0011017
0.8875 0.018048 0.00058961 0.0010085
0.8965 0.016516 0.00061235 0.0009139
0.9055 0.016445 0.00052344 0.00090834
0.9145 0.015707 0.00052467 0.00086584
0.9235 0.018488 0.00057542 0.0010211
0.9325 0.019112 0.00062285 0.0010574
0.9415 0.021619 0.00069992 0.0012065
0.9505 0.025224 0.00074861 0.0014179
0.9595 0.028774 0.0008892 0.0016235
0.9685 0.030836 0.00090143 0.0017486
0.9775 0.03362 0.0010149 0.0019226
0.9865 0.036203 0.0010656 0.0020904
0.9955 0.036702 0.0011551 0.002138
1.0045 0.033037 0.0011014 0.001914
1.0135 0.032158 0.0011063 0.0018633
1.0225 0.028958 0.00097122 0.0016782
1.0315 0.026277 0.0010147 0.0015187
1.0405 0.022786 0.00095505 0.0013184
1.0495 0.019476 0.00082817 0.0011198
1.0585 0.016091 0.00084735 0.00092074
1.0675 0.01485 0.00066746 0.00084832
1.0765 0.011397 0.00071156 0.00064397
1.0855 0.010686 0.00059889 0.00060316
1.0945 0.0080463 0.00064156 0.00045311
1.1035 0.0077951 0.00045696 0.00043764
1.1125 0.0077973 0.00045552 0.00043514
1.1215 0.0058384 0.0004815 0.00032744
1.1305 0.0047984 0.00043497 0.00026905
1.1395 0.004284 0.00033452 0.00023971
1.1485 0.0035577 0.0003062 0.00019896
1.1575 0.0033556 0.00029545 0.00018701
1.1665 0.0029231 0.00027621 0.00016303
1.1755 0.002595 0.00026486 0.00014474
1.1845 0.0020931 0.0002355 0.00011647
1.1935 0.0019534 0.00022556 0.00010844
1.2025 0.0019872 0.00023584 0.00011185
1.2115 0.0015822 0.00020956 8.7637e-05
1.2205 0.0013447 0.00031859 7.4772e-05
1.2295 0.0015789 0.00020913 8.8004e-05
1.2385 0.0010471 0.00030635 5.7748e-05
1.2475 0.0014111 0.00019384 7.8037e-05
1.2565 0.0010777 0.00017717 5.9722e-05
1.2655 0.0011439 0.00017651 6.3289e-05
1.2745 0.0012306 0.0001795 6.7357e-05
1.2835 0.0010627 0.00017471 5.869e-05
1.2925 0.00066778 0.00013096 3.6868e-05
1.3105 0.00073038 0.00014056 3.9717e-05
1.3195 0.00065968 0.00014064 3.6614e-05
1.3285 0.00068219 0.00014544 3.8167e-05
1.3375 0.00073788 0.00016499 4.1151e-05
1.3465 0.00067608 0.000138 3.701e-05
1.3555 0.00050317 0.00012992 2.8268e-05
1.3645 0.00057116 0.00012464 3.1254e-05
1.3735 0.00039687 0.00010607 2.2186e-05
1.3825 0.00056387 0.00012936 3.063e-05
1.3915 0.00025858 8.177e-05 1.4078e-05
1.4005 0.000341 0.00011367 1.8924e-05
1.4095 0.00048637 0.0001349 2.7765e-05
1.4185 0.00030368 0.00010737 1.6773e-05
1.4275 0.00036091 0.00010418 1.9502e-05
1.4455 0.00033015 0.00011005 1.8041e-05
1.4545 9.5013e-05 4.7506e-05 5.1084e-06
1.4635 0.00024524 8.6706e-05 1.3531e-05
1.4725 0.00028037 9.3458e-05 1.5619e-05
1.4815 0.00024114 9.8444e-05 1.3205e-05
1.4905 0.00019802 8.0841e-05 1.1143e-05
1.4995 0.00012076 6.038e-05 6.5779e-06
1.5085 7.6133e-05 4.3955e-05 4.1132e-06
1.5175 0.00018026 8.0614e-05 1.0222e-05
