Measurement E12M5

You are not logged in.

Experiment: E1D and E6A runs CLAS data, 2005

Spokespersons: M. Osipenko

Publications:

Quantity measured: F2, dimensionless
Proton structure function.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: inclusive, polarization: none

Q2 : 0.525 GeV2
W : 1.81331641852599 — 2.51102104626733 GeV
xb : 0.1585 — 1.7785

Observable quantity measured (Y axis): F2, dimensionless

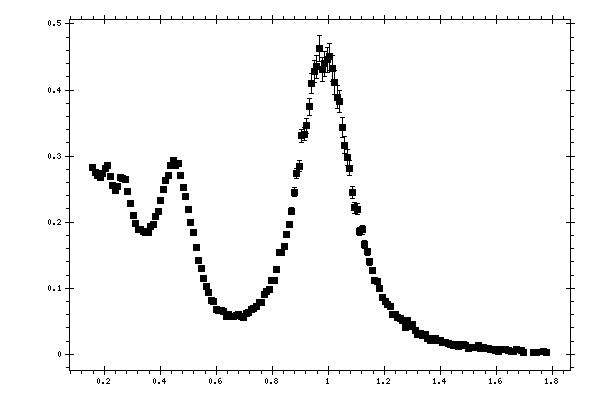

Plot measurement data

Parameter (X axis): x, dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

x,
dimensionless 		F2,
dimensionless 		Data errors,
dimensionless 		Systematic errors,
dimensionless
0.1585 0.28328 0.00080599 0.012922
0.1675 0.27455 0.00084445 0.012464
0.1765 0.2706 0.00091336 0.012283
0.1855 0.26804 0.00096938 0.012122
0.1945 0.274 0.0010626 0.012371
0.2035 0.28184 0.0011748 0.012718
0.2125 0.28605 0.001279 0.012918
0.2215 0.26926 0.0013104 0.01211
0.2305 0.25556 0.0013321 0.011456
0.2395 0.2484 0.0013464 0.011136
0.2485 0.25397 0.0014302 0.011384
0.2575 0.26736 0.0015492 0.012078
0.2665 0.26594 0.0016146 0.011972
0.2755 0.26389 0.0016658 0.011865
0.2845 0.24706 0.0016361 0.011082
0.2935 0.22826 0.0015855 0.010257
0.3025 0.21007 0.0015307 0.0093978
0.3115 0.19745 0.0014719 0.008862
0.3205 0.18878 0.0014109 0.0084733
0.3295 0.18889 0.0013846 0.0085299
0.3385 0.18662 0.001381 0.0084067
0.3475 0.18408 0.0013975 0.0082915
0.3565 0.18416 0.001436 0.0083338
0.3655 0.19338 0.001518 0.0087767
0.3745 0.19601 0.0015416 0.0088155
0.3835 0.20799 0.0016675 0.0094183
0.3925 0.21645 0.0017432 0.0097974
0.4015 0.23236 0.0018937 0.010581
0.4105 0.24966 0.0020568 0.011327
0.4195 0.2637 0.0022237 0.012017
0.4285 0.27099 0.0023237 0.012292
0.4375 0.28555 0.0025071 0.012998
0.4465 0.29339 0.0026664 0.013298
0.4555 0.28611 0.0027104 0.012945
0.4645 0.28867 0.0028171 0.013143
0.4735 0.271 0.0027248 0.012263
0.4825 0.25237 0.0026464 0.011387
0.4915 0.23813 0.0025661 0.010719
0.5005 0.21933 0.0024748 0.0098514
0.5095 0.19879 0.0023152 0.008892
0.5185 0.18392 0.0022414 0.00825
0.5275 0.161 0.0020328 0.0071544
0.5365 0.14136 0.0018922 0.006346
0.5455 0.13039 0.0018071 0.0058633
0.5545 0.11451 0.0016712 0.0051292
0.5635 0.10299 0.0015633 0.0045795
0.5725 0.093982 0.0015107 0.0042132
0.5815 0.08095 0.0013834 0.0035993
0.5905 0.079567 0.0013792 0.0035427
0.5995 0.068312 0.0012591 0.0030416
0.6085 0.066452 0.0012555 0.0029493
0.6175 0.066051 0.0012608 0.0029495
0.6265 0.065246 0.0012493 0.0029398
0.6355 0.057015 0.0011754 0.0025322
0.6445 0.059766 0.001197 0.002641
0.6535 0.057695 0.0011939 0.0025612
0.6625 0.057498 0.001212 0.0025426
0.6715 0.058149 0.0011975 0.0025229
0.6805 0.05966 0.0012358 0.0026414
0.6895 0.057505 0.0012337 0.0025297
0.6985 0.055961 0.0011968 0.0024569
0.7075 0.061243 0.0013044 0.0027466
0.7165 0.062766 0.0013068 0.0027996
0.7255 0.067463 0.0013543 0.0030023
0.7345 0.06896 0.0014351 0.0030603
0.7435 0.072611 0.0015113 0.0032487
0.7525 0.078362 0.001624 0.0035239
0.7615 0.078218 0.0016388 0.0035021
0.7705 0.090832 0.001827 0.0040695
0.7795 0.094948 0.0019253 0.0042685
0.7885 0.098481 0.0019854 0.0044242
0.7975 0.11125 0.0022115 0.0050305
0.8065 0.11148 0.0022904 0.0050144
0.8155 0.12853 0.0026284 0.005807
0.8245 0.1535 0.003157 0.0069716
0.8335 0.15348 0.0032519 0.0069695
0.8425 0.16309 0.003518 0.0073693
0.8515 0.18115 0.0039914 0.0082137
0.8605 0.19716 0.0045659 0.0089993
0.8695 0.21681 0.0053157 0.0099628
0.8785 0.2456 0.0062782 0.011372
0.8875 0.27346 0.0073299 0.012683
0.8965 0.28489 0.0080548 0.013144
0.9055 0.3305 0.010099 0.015582
0.9145 0.33329 0.010333 0.015435
0.9235 0.34601 0.011481 0.016243
0.9325 0.37433 0.013004 0.017422
0.9415 0.40963 0.015097 0.019257
0.9505 0.42758 0.016594 0.020294
0.9595 0.43544 0.017507 0.020678
0.9685 0.46243 0.019526 0.022167
0.9775 0.43064 0.018203 0.020236
0.9865 0.43956 0.019053 0.020634
0.9955 0.44543 0.019656 0.021132
1.0045 0.45034 0.020299 0.021381
1.0135 0.43231 0.019429 0.020539
1.0225 0.41159 0.018484 0.019524
1.0315 0.38939 0.016694 0.018097
1.0405 0.38211 0.016637 0.017921
1.0495 0.34321 0.014703 0.015982
1.0585 0.31665 0.013064 0.014641
1.0675 0.29809 0.012083 0.013593
1.0765 0.28184 0.01106 0.012827
1.0855 0.24461 0.0092961 0.011035
1.0945 0.22188 0.0082106 0.0099147
1.1035 0.21981 0.0079827 0.0098563
1.1125 0.18604 0.006522 0.0082299
1.1215 0.18862 0.0067196 0.0083988
1.1305 0.16641 0.0056891 0.0074153
1.1395 0.15529 0.0052443 0.0068379
1.1485 0.1399 0.0047784 0.0062026
1.1575 0.12667 0.0042026 0.0055285
1.1665 0.11181 0.0037188 0.0048668
1.1755 0.10993 0.0036861 0.0048099
1.1845 0.099316 0.0033346 0.0043013
1.1935 0.086151 0.0028563 0.0037236
1.2025 0.080217 0.0026955 0.0034984
1.2115 0.076146 0.0026601 0.0032911
1.2205 0.072011 0.0025405 0.0031412
1.2295 0.059962 0.002137 0.0025657
1.2385 0.059801 0.0021216 0.0025707
1.2475 0.055585 0.0020375 0.0023823
1.2565 0.054285 0.0020445 0.0023381
1.2655 0.051571 0.0020074 0.0022114
1.2745 0.041209 0.0015841 0.0017622
1.2835 0.050675 0.0019254 0.0021964
1.2925 0.041527 0.0016617 0.0017819
1.3015 0.045456 0.0019144 0.0020008
1.3105 0.036159 0.0016337 0.001553
1.3195 0.030717 0.0014079 0.0013073
1.3285 0.031358 0.0014563 0.0013379
1.3375 0.028133 0.0013231 0.0011994
1.3465 0.029885 0.0016265 0.001276
1.3555 0.02354 0.001254 0.0010024
1.3645 0.021295 0.001163 0.00089733
1.3735 0.024642 0.001368 0.0010655
1.3825 0.023855 0.0013161 0.0010304
1.3915 0.020984 0.0011367 0.00088446
1.4005 0.021067 0.0011757 0.00091129
1.4095 0.018267 0.0011637 0.00079579
1.4185 0.01792 0.0011741 0.00075435
1.4275 0.015942 0.001106 0.00069622
1.4365 0.015525 0.0010138 0.0006722
1.4455 0.013841 0.0010057 0.00059457
1.4545 0.015613 0.0010275 0.00066714
1.4635 0.012568 0.00087097 0.00053015
1.4725 0.014802 0.0010228 0.00061954
1.4815 0.01425 0.0011385 0.00060919
1.4905 0.013183 0.0010271 0.0005718
1.4995 0.0090027 0.00075647 0.00037815
1.5085 0.010886 0.00079545 0.00046898
1.5175 0.011096 0.00086269 0.00047507
1.5265 0.01073 0.00096611 0.00045231
1.5355 0.012845 0.0011626 0.00056609
1.5445 0.0091897 0.00084556 0.00039386
1.5535 0.0098921 0.00088982 0.00043944
1.5625 0.0094494 0.00098102 0.00040634
1.5715 0.0086195 0.00091657 0.00037404
1.5805 0.007796 0.00075171 0.00032822
1.5895 0.0068663 0.00073758 0.00029523
1.5985 0.006032 0.00081285 0.00026049
1.6075 0.0048866 0.00069328 0.00020621
1.6165 0.0072206 0.00084914 0.00030189
1.6255 0.0066542 0.00083326 0.00027822
1.6345 0.0073889 0.0011097 0.00034826
1.6435 0.0052902 0.00060626 0.00021942
1.6525 0.0044271 0.00063105 0.00018625
1.6615 0.0044731 0.00065913 0.00018727
1.6705 0.0067774 0.0010832 0.00029636
1.6885 0.0056337 0.00077027 0.00024571
1.6975 0.0030659 0.0005082 0.0001282
1.7335 0.0022878 0.00047329 9.609e-05
1.7425 0.0027899 0.00052573 0.00012108
1.7695 0.0035344 0.00058658 0.00015648
1.7785 0.0026296 0.00060358 0.00011499
