Measurement E12M50

You are not logged in.

Experiment: E1D and E6A runs CLAS data, 2005

Spokespersons: M. Osipenko

Publications:

Quantity measured: F2, dimensionless
Proton structure function.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: inclusive, polarization: none

Q2 : 2.775 GeV2
W : 1.59691977611381 — 3.10667524514467 GeV
xb : 0.3115 — 1.5355

Observable quantity measured (Y axis): F2, dimensionless

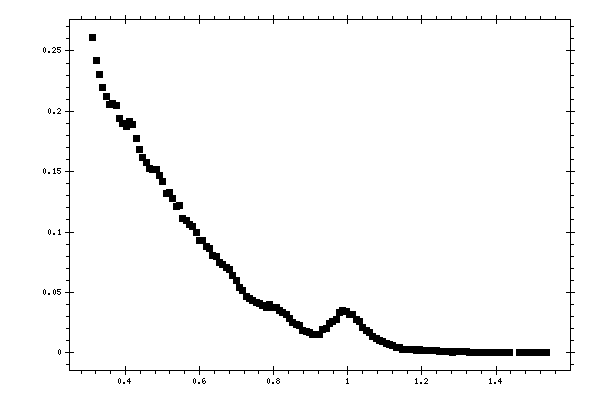

Plot measurement data

Parameter (X axis): x, dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

x,
dimensionless 		F2,
dimensionless 		Data errors,
dimensionless 		Systematic errors,
dimensionless
0.3115 0.26131 0.0011856 0.015032
0.3205 0.24203 0.0011345 0.013886
0.3295 0.2305 0.0011684 0.013191
0.3385 0.21939 0.0011396 0.012539
0.3475 0.21196 0.0012278 0.01212
0.3565 0.20593 0.0011853 0.011752
0.3655 0.2062 0.0011872 0.011765
0.3745 0.20442 0.0012269 0.011667
0.3835 0.19404 0.0012199 0.011033
0.3925 0.18981 0.0013042 0.010804
0.4015 0.18743 0.0013221 0.010702
0.4105 0.19115 0.0013423 0.010956
0.4195 0.18933 0.001376 0.010855
0.4285 0.17758 0.0014354 0.010131
0.4375 0.1685 0.0014508 0.0096171
0.4465 0.16182 0.0014628 0.0091935
0.4555 0.15751 0.0014521 0.0089728
0.4645 0.15223 0.0014745 0.0086419
0.4735 0.15218 0.001457 0.0086565
0.4825 0.1515 0.0015103 0.0086413
0.4915 0.14671 0.0015411 0.008356
0.5005 0.14187 0.0015151 0.0080584
0.5095 0.13198 0.0014903 0.0074688
0.5185 0.13309 0.0015775 0.0075578
0.5275 0.12777 0.0014914 0.0072789
0.5365 0.12146 0.0013846 0.0069214
0.5455 0.12161 0.0013808 0.0069488
0.5545 0.11159 0.0012965 0.0063498
0.5635 0.10923 0.0012372 0.0062222
0.5725 0.10596 0.0011769 0.0060321
0.5815 0.10455 0.0012252 0.0059702
0.5905 0.099841 0.0012471 0.0056882
0.5995 0.093378 0.0012323 0.0053
0.6085 0.092884 0.0012304 0.005288
0.6175 0.087935 0.0012203 0.0049999
0.6265 0.086598 0.0013001 0.0049298
0.6355 0.080183 0.0012689 0.0045674
0.6445 0.079664 0.001225 0.004541
0.6535 0.074798 0.001258 0.0042666
0.6625 0.073158 0.00122 0.0041819
0.6715 0.070951 0.0013245 0.0040562
0.6805 0.068884 0.0011453 0.0039408
0.6895 0.063826 0.0012219 0.003652
0.6985 0.059837 0.0011134 0.0034185
0.7075 0.053997 0.0010322 0.0030911
0.7165 0.051569 0.00093194 0.0029487
0.7255 0.046786 0.00091359 0.0026745
0.7345 0.045314 0.00089723 0.0025978
0.7435 0.043632 0.00090379 0.0024958
0.7525 0.041634 0.00088229 0.0023805
0.7615 0.040476 0.00093211 0.002313
0.7705 0.039086 0.00086685 0.0022341
0.7795 0.037205 0.00089752 0.0021291
0.7885 0.03962 0.00091095 0.0022679
0.7975 0.03775 0.00089678 0.0021698
0.8065 0.037138 0.0009247 0.0021385
0.8155 0.034889 0.00089017 0.0020122
0.8245 0.033314 0.00092251 0.0019163
0.8335 0.031739 0.00087947 0.0018223
0.8425 0.027976 0.00088067 0.0016051
0.8515 0.025187 0.00078807 0.0014402
0.8605 0.023043 0.00068326 0.0013158
0.8695 0.022392 0.00068058 0.0012719
0.8785 0.01846 0.00065436 0.0010441
0.8875 0.0176 0.00056505 0.00099284
0.8965 0.01656 0.00061037 0.00093087
0.9055 0.015479 0.0005583 0.00086424
0.9145 0.015462 0.00050778 0.00086164
0.9235 0.015346 0.00054482 0.00085623
0.9325 0.018849 0.00060356 0.0010561
0.9415 0.019732 0.00067682 0.0011115
0.9505 0.024237 0.00080592 0.0013768
0.9595 0.026102 0.00088816 0.0014922
0.9685 0.027929 0.0008943 0.0016049
0.9775 0.033502 0.00098312 0.0019363
0.9865 0.035023 0.0010803 0.0020402
0.9955 0.033912 0.001074 0.0019874
1.0045 0.031991 0.001046 0.0018654
1.0135 0.031602 0.0010673 0.0018545
1.0225 0.027593 0.00099851 0.001617
1.0315 0.025994 0.00095499 0.0015128
1.0405 0.020914 0.00096617 0.0012218
1.0495 0.01867 0.00091384 0.0010804
1.0585 0.016498 0.00075051 0.00095047
1.0675 0.013214 0.00077583 0.00075959
1.0765 0.011784 0.00063044 0.00067387
1.0855 0.0098946 0.00052441 0.00056365
1.0945 0.0089651 0.00049653 0.00051158
1.1035 0.0074803 0.0004544 0.00042369
1.1125 0.0066508 0.00042148 0.00037839
1.1215 0.0057909 0.00046611 0.00032769
1.1305 0.0041758 0.00040781 0.00023703
1.1395 0.0041351 0.00032897 0.00023213
1.1485 0.0029091 0.00042835 0.00016366
1.1575 0.0027607 0.00026204 0.00015487
1.1665 0.003029 0.00027767 0.00017054
1.1755 0.0023087 0.00023442 0.00012812
1.1845 0.002176 0.00023197 0.00012142
1.1935 0.0026278 0.00026819 0.00014855
1.2025 0.0020003 0.00024438 0.00011291
1.2115 0.0015392 0.00020039 8.5699e-05
1.2205 0.001576 0.00032153 8.8064e-05
1.2295 0.0017956 0.0002299 0.00010025
1.2385 0.0015226 0.00020719 8.5679e-05
1.2475 0.0011419 0.00018054 6.4139e-05
1.2565 0.001172 0.00018304 6.6363e-05
1.2655 0.00094098 0.0001638 5.2719e-05
1.2745 0.00075654 0.00015131 4.2453e-05
1.2835 0.00062289 0.00013593 3.5131e-05
1.2925 0.00062471 0.00012494 3.4416e-05
1.3015 0.00077093 0.00015737 4.3502e-05
1.3105 0.00065281 0.00013612 3.6471e-05
1.3195 0.00073752 0.00014464 4.0931e-05
1.3285 0.00014245 0.00026337 8.0086e-06
1.3375 0.00038851 0.00010031 2.1425e-05
1.3555 0.00056115 0.0001361 3.0985e-05
1.3645 0.00044952 0.00011238 2.4767e-05
1.3735 0.00038026 0.00010977 2.1044e-05
1.3825 0.00047275 0.00012206 2.6261e-05
1.4005 6.3182e-06 0.00032469 3.6445e-07
1.4095 0.00024555 0.00010024 1.4183e-05
1.4185 0.00029119 9.2082e-05 1.5837e-05
1.4275 0.00019077 7.7883e-05 1.0505e-05
1.4365 0.00017827 7.278e-05 9.7851e-06
1.4635 0.00019711 8.0468e-05 1.1229e-05
1.4725 0.00017528 7.1559e-05 9.8187e-06
1.4815 0.00026385 9.9726e-05 1.4753e-05
1.4905 7.6775e-05 5.4288e-05 4.5447e-06
1.4995 0.00022659 8.5642e-05 1.2949e-05
1.5085 0.00012247 6.1233e-05 6.8055e-06
1.5175 7.7337e-05 5.4686e-05 4.4196e-06
1.5355 0.00015245 6.8178e-05 8.5166e-06
