Measurement E12M55

You are not logged in.

Experiment: E1D and E6A runs CLAS data, 2005

Spokespersons: M. Osipenko

Publications:

Quantity measured: F2, dimensionless
Proton structure function.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: inclusive, polarization: none

Q2 : 3.025 GeV2
W : 1.58822043523048 — 3.03281384639805 GeV
xb : 0.3475 — 1.4905

Observable quantity measured (Y axis): F2, dimensionless

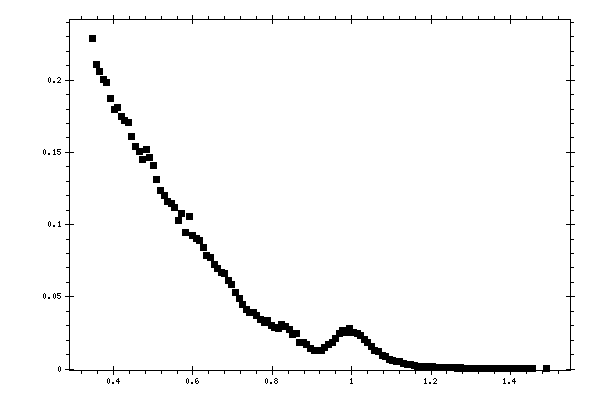

Plot measurement data

Parameter (X axis): x, dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

x,
dimensionless 		F2,
dimensionless 		Data errors,
dimensionless 		Systematic errors,
dimensionless
0.3475 0.22896 0.0012376 0.013884
0.3565 0.21077 0.0011873 0.012753
0.3655 0.20612 0.0012143 0.012435
0.3745 0.20075 0.0012676 0.01212
0.3835 0.19873 0.0012256 0.012043
0.3925 0.1874 0.0012851 0.011323
0.4015 0.17995 0.001321 0.010894
0.4105 0.1809 0.0012947 0.010902
0.4195 0.17506 0.0013089 0.01052
0.4285 0.17227 0.0013112 0.010356
0.4375 0.17065 0.0013683 0.010264
0.4465 0.16128 0.0013482 0.009652
0.4555 0.15411 0.0014061 0.0092411
0.4645 0.15038 0.0014603 0.009047
0.4735 0.14538 0.0013632 0.0087545
0.4825 0.15234 0.0014638 0.0092173
0.4915 0.14669 0.0014525 0.0088668
0.5005 0.14096 0.0014084 0.0085431
0.5095 0.13122 0.0014824 0.0078992
0.5185 0.12356 0.0014458 0.0074359
0.5275 0.12046 0.001483 0.0072598
0.5365 0.11621 0.0014798 0.0069871
0.5455 0.11467 0.0014795 0.0069141
0.5545 0.11211 0.0014739 0.0067714
0.5635 0.1028 0.001391 0.0061648
0.5725 0.10766 0.0014565 0.006486
0.5815 0.094758 0.0013454 0.0056691
0.5905 0.10585 0.0013854 0.0064307
0.5995 0.092306 0.0012458 0.0055435
0.6085 0.090565 0.0012871 0.0054532
0.6175 0.088938 0.0013068 0.00536
0.6265 0.084308 0.0013035 0.0050808
0.6355 0.078505 0.0012374 0.0047334
0.6445 0.077034 0.0012422 0.0046415
0.6535 0.072561 0.0012094 0.0043653
0.6625 0.069836 0.0012459 0.004208
0.6715 0.066785 0.0012372 0.0040289
0.6805 0.066219 0.0011911 0.0040019
0.6895 0.061028 0.0012309 0.0036875
0.6985 0.058587 0.0011819 0.0035367
0.7075 0.052856 0.0011098 0.0031895
0.7165 0.048573 0.0010492 0.0029299
0.7255 0.044341 0.0010171 0.002673
0.7345 0.04128 0.00097729 0.0024853
0.7435 0.038909 0.00095263 0.0023469
0.7525 0.038859 0.00095164 0.002342
0.7615 0.036738 0.00096546 0.002211
0.7705 0.034615 0.00098119 0.0020777
0.7795 0.031969 0.00098009 0.001921
0.7885 0.033834 0.00088331 0.0020318
0.7975 0.030426 0.00099666 0.0018331
0.8065 0.028963 0.0010825 0.0017478
0.8155 0.028338 0.000974 0.0017093
0.8245 0.030821 0.001004 0.0018658
0.8335 0.02918 0.00090665 0.0017642
0.8425 0.027695 0.00090029 0.0016845
0.8515 0.02419 0.00090159 0.0014563
0.8605 0.024281 0.00086536 0.0014626
0.8695 0.018676 0.00078896 0.0011186
0.8785 0.018441 0.00067159 0.001103
0.8875 0.017033 0.00080957 0.0010224
0.8965 0.014392 0.00062467 0.00085485
0.9055 0.012618 0.00071759 0.00074626
0.9145 0.012762 0.00059601 0.00075494
0.9235 0.013017 0.00053389 0.00076741
0.9325 0.015033 0.00059017 0.00088571
0.9415 0.017091 0.00066194 0.0010139
0.9505 0.018485 0.0007422 0.0010991
0.9595 0.021154 0.00077981 0.0012647
0.9685 0.024387 0.00095609 0.0014757
0.9775 0.026859 0.00098315 0.001633
0.9865 0.025416 0.0010282 0.00155
0.9955 0.027873 0.0010596 0.0017104
1.0045 0.025306 0.00097151 0.0015553
1.0135 0.024341 0.0010109 0.0015005
1.0225 0.023135 0.0010544 0.0014245
1.0315 0.020274 0.00099233 0.0012468
1.0405 0.018153 0.0008309 0.0011072
1.0495 0.015584 0.00071959 0.00095816
1.0585 0.012747 0.00074681 0.00077097
1.0675 0.012335 0.00061069 0.0007484
1.0765 0.0094239 0.00053098 0.00056813
1.0855 0.0084566 0.00049659 0.00050876
1.0945 0.0064359 0.00057749 0.00038614
1.1035 0.0057474 0.00039661 0.00034182
1.1125 0.0049965 0.00038098 0.00029879
1.1215 0.0049124 0.00037677 0.00029276
1.1305 0.0036978 0.00041598 0.00022106
1.1395 0.0029668 0.00028034 0.00017504
1.1485 0.0028094 0.00028094 0.0001665
1.1575 0.0022983 0.00025227 0.00013623
1.1665 0.0019093 0.00022659 0.00011343
1.1755 0.0018981 0.00023018 0.00011348
1.1845 0.0018505 0.00022778 0.00011019
1.1935 0.0015964 0.0002044 9.4376e-05
1.2025 0.0015256 0.00021362 9.0778e-05
1.2115 0.0012474 0.00018005 7.358e-05
1.2205 0.0011084 0.0001731 6.5848e-05
1.2295 0.00097713 0.00016758 5.8043e-05
1.2385 0.001197 0.00019678 7.1306e-05
1.2475 0.0010205 0.0001634 5.989e-05
1.2565 0.00099499 0.00016818 5.8901e-05
1.2655 0.00044334 0.00010753 2.5876e-05
1.2745 0.00076541 0.00015624 4.5586e-05
1.2835 0.00037207 0.00030356 2.2087e-05
1.2925 0.00056845 0.00013787 3.3606e-05
1.3015 0.00048677 0.00011473 2.8501e-05
1.3105 0.00058621 0.00014655 3.5616e-05
1.3195 0.00056965 0.00013427 3.3634e-05
1.3285 0.00047727 0.00011575 2.8014e-05
1.3375 0.00033535 0.00010111 1.9957e-05
1.3465 0.000413 0.00011455 2.4427e-05
1.3555 0.0003546 9.8348e-05 2.0886e-05
1.3735 0.00034683 0.00010968 2.058e-05
1.3825 0.00015131 6.7667e-05 8.9217e-06
1.3915 0.00030722 0.00010862 1.8305e-05
1.4005 0.00030495 0.00010165 1.8127e-05
1.4095 0.00026542 9.3839e-05 1.5777e-05
1.4185 0.00012698 6.3489e-05 7.4641e-06
1.4275 0.00029891 8.6287e-05 1.7298e-05
1.4365 0.00012804 6.402e-05 7.5142e-06
1.4455 5.8113e-05 4.1092e-05 3.5034e-06
1.4545 9.3006e-05 5.3697e-05 5.4378e-06
1.4905 0.00011773 5.8863e-05 6.9979e-06
