Measurement E12M6

You are not logged in.

Experiment: E1D and E6A runs CLAS data, 2005

Spokespersons: M. Osipenko

Publications:

Quantity measured: F2, dimensionless
Proton structure function.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: inclusive, polarization: none

Q2 : 0.575 GeV2
W : 1.8100701189139 — 2.5633345681059 GeV
xb : 0.1585 — 1.7245

Observable quantity measured (Y axis): F2, dimensionless

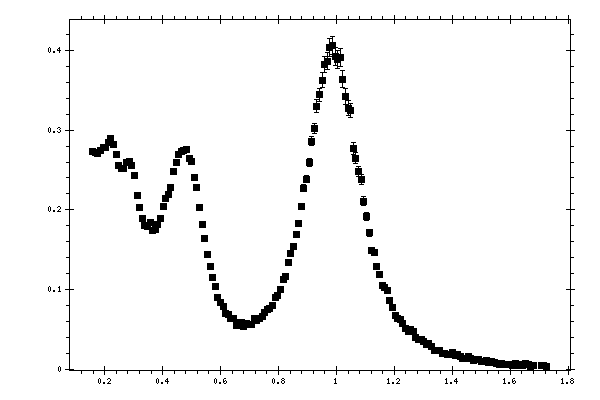

Plot measurement data

Parameter (X axis): x, dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

x,
dimensionless 		F2,
dimensionless 		Data errors,
dimensionless 		Systematic errors,
dimensionless
0.1585 0.27282 0.00072858 0.013439
0.1675 0.2717 0.0008331 0.012644
0.1765 0.27129 0.00087519 0.012552
0.1855 0.27413 0.00092323 0.012699
0.1945 0.27862 0.00099167 0.012959
0.2035 0.27872 0.0010686 0.012927
0.2125 0.28441 0.0011457 0.013186
0.2215 0.28929 0.0012115 0.013404
0.2305 0.28245 0.0012523 0.013063
0.2395 0.26905 0.0012793 0.012436
0.2485 0.25533 0.001317 0.011797
0.2575 0.25145 0.0013748 0.011577
0.2665 0.25246 0.0014759 0.011636
0.2755 0.26005 0.0015762 0.012043
0.2845 0.26101 0.0016367 0.012017
0.2935 0.25572 0.0016531 0.01177
0.3025 0.24317 0.001645 0.011177
0.3115 0.2176 0.0015737 0.0099887
0.3205 0.20326 0.0015481 0.0093407
0.3295 0.18883 0.0015106 0.0086574
0.3385 0.17979 0.0014632 0.0082499
0.3475 0.17867 0.0014365 0.0081999
0.3565 0.18428 0.0014896 0.0085036
0.3655 0.17454 0.0014647 0.0080218
0.3745 0.17514 0.0014846 0.0081065
0.3835 0.18192 0.0015275 0.0083759
0.3925 0.18907 0.0015868 0.008709
0.4015 0.20359 0.0017054 0.0094403
0.4105 0.2143 0.0017825 0.0099488
0.4195 0.21867 0.0018254 0.010114
0.4285 0.22863 0.001877 0.010574
0.4375 0.24867 0.0020678 0.011587
0.4465 0.25987 0.0021674 0.012152
0.4555 0.26912 0.0022647 0.012494
0.4645 0.2731 0.0023285 0.012678
0.4735 0.27411 0.0024136 0.012724
0.4825 0.276 0.002446 0.012795
0.4915 0.26513 0.0024351 0.012288
0.5005 0.26065 0.0024647 0.012086
0.5095 0.24049 0.0023345 0.01116
0.5185 0.22756 0.0022684 0.010436
0.5275 0.20293 0.0021107 0.0093347
0.5365 0.18217 0.0019677 0.0083748
0.5455 0.16459 0.0018509 0.007589
0.5545 0.14332 0.0016777 0.0066084
0.5635 0.12881 0.0015549 0.0059263
0.5725 0.11502 0.0014505 0.0052394
0.5815 0.10423 0.0014116 0.0047997
0.5905 0.089386 0.001264 0.0040688
0.5995 0.083691 0.0012117 0.003813
0.6085 0.078323 0.0012005 0.0035932
0.6175 0.069505 0.0011076 0.003163
0.6265 0.069009 0.001117 0.0031653
0.6355 0.062877 0.0010516 0.0028641
0.6445 0.063978 0.001087 0.0029368
0.6535 0.054494 0.00098081 0.0024795
0.6625 0.058535 0.0010292 0.0027061
0.6715 0.058518 0.0010721 0.0026885
0.6805 0.053802 0.0010029 0.0024257
0.6895 0.057261 0.0010255 0.0025599
0.6985 0.05533 0.001024 0.002491
0.7075 0.056362 0.0010543 0.0025358
0.7165 0.063074 0.0011329 0.0028555
0.7255 0.061253 0.0011323 0.0027832
0.7345 0.062857 0.0011313 0.0028644
0.7435 0.066342 0.0012091 0.0030589
0.7525 0.07101 0.0012822 0.0032765
0.7615 0.075228 0.0013009 0.0034563
0.7705 0.075566 0.0013462 0.0034556
0.7795 0.080257 0.0013991 0.0036677
0.7885 0.09031 0.0015388 0.0041815
0.7975 0.092104 0.0016043 0.0042557
0.8065 0.10005 0.0016786 0.0046164
0.8155 0.11278 0.0018747 0.0052419
0.8245 0.11672 0.001947 0.0053681
0.8335 0.13344 0.0022128 0.006178
0.8425 0.14525 0.0024408 0.0067314
0.8515 0.15331 0.0025938 0.0070964
0.8605 0.16933 0.0029019 0.0078859
0.8695 0.1829 0.0032416 0.0085385
0.8785 0.20472 0.0036904 0.0095781
0.8875 0.22719 0.0042117 0.010623
0.8965 0.23847 0.0046227 0.011257
0.9055 0.25951 0.0051695 0.012219
0.9145 0.28631 0.0059727 0.013577
0.9235 0.302 0.0066546 0.014428
0.9325 0.33047 0.007602 0.015883
0.9415 0.34454 0.0083194 0.016554
0.9505 0.36299 0.0090244 0.01744
0.9595 0.38277 0.010037 0.018571
0.9685 0.38688 0.010358 0.018642
0.9775 0.40352 0.011193 0.019562
0.9865 0.4062 0.011586 0.01973
0.9955 0.39222 0.011247 0.018754
1.0045 0.38899 0.011286 0.018876
1.0135 0.39188 0.011454 0.019024
1.0225 0.36403 0.010482 0.017365
1.0315 0.34259 0.0096193 0.016198
1.0405 0.32795 0.00929 0.015501
1.0495 0.32506 0.0090837 0.01545
1.0585 0.27693 0.0074574 0.012951
1.0675 0.26477 0.0071151 0.01235
1.0765 0.24788 0.0064968 0.011468
1.0855 0.2382 0.0062122 0.011129
1.0945 0.21095 0.005329 0.0096252
1.1035 0.19143 0.0048233 0.0087181
1.1125 0.1712 0.0043115 0.0078325
1.1215 0.14937 0.0036498 0.0067544
1.1305 0.14591 0.0035751 0.0065851
1.1395 0.12856 0.0031426 0.0058042
1.1485 0.11813 0.0028536 0.0052669
1.1575 0.10534 0.0025966 0.0047122
1.1665 0.10199 0.0025529 0.0045916
1.1755 0.098972 0.0024906 0.0044367
1.1845 0.086462 0.0023095 0.0038455
1.1935 0.077885 0.0020641 0.0034487
1.2025 0.067705 0.0018602 0.0029902
1.2115 0.062901 0.0018124 0.0027782
1.2205 0.062023 0.0018124 0.0027735
1.2295 0.057788 0.0017104 0.0025515
1.2385 0.050892 0.0016502 0.0022555
1.2475 0.047547 0.0015337 0.0020899
1.2565 0.050188 0.0016016 0.0022268
1.2655 0.047685 0.0015918 0.0021013
1.2745 0.040155 0.0013594 0.0017689
1.2835 0.037471 0.0013803 0.0016599
1.2925 0.036839 0.0013201 0.0016305
1.3015 0.03515 0.0012649 0.0015476
1.3105 0.031033 0.0012904 0.0013688
1.3195 0.031469 0.0013021 0.0013783
1.3285 0.028152 0.0011999 0.0012391
1.3375 0.023659 0.0010378 0.001037
1.3465 0.023573 0.0010367 0.0010321
1.3555 0.023092 0.0011097 0.0010142
1.3645 0.019582 0.001022 0.00085121
1.3735 0.019739 0.00099255 0.00087283
1.3825 0.018775 0.0010211 0.00082813
1.3915 0.018402 0.00099249 0.00081128
1.4005 0.02012 0.0010571 0.00089982
1.4095 0.017126 0.0010173 0.00075691
1.4185 0.018281 0.00095743 0.00079704
1.4275 0.015502 0.00093884 0.00069357
1.4365 0.013591 0.00084234 0.00059362
1.4455 0.012806 0.00079768 0.00055823
1.4545 0.015248 0.0009509 0.00068303
1.4635 0.013629 0.0009339 0.00060149
1.4725 0.010108 0.00073485 0.00044488
1.4815 0.01136 0.00084239 0.00049707
1.4905 0.012414 0.00088999 0.00054568
1.4995 0.0088426 0.00070193 0.00038459
1.5085 0.0089579 0.00075071 0.00038932
1.5175 0.010148 0.00084359 0.00045401
1.5265 0.0085891 0.00079578 0.00037784
1.5355 0.0092451 0.000713 0.00041707
1.5445 0.0086442 0.00068971 0.00037463
1.5535 0.00666 0.00070849 0.00028798
1.5625 0.0060093 0.00055242 0.00025716
1.5715 0.006991 0.00069412 0.00030639
1.5805 0.006092 0.00057261 0.00026506
1.5895 0.0056054 0.00053539 0.00024132
1.5985 0.0061439 0.00059354 0.00027137
1.6075 0.0046065 0.0005376 0.00019968
1.6165 0.0071013 0.00074425 0.00031672
1.6255 0.0046231 0.00058564 0.00020379
1.6345 0.0062078 0.00084249 0.00027658
1.6435 0.0039124 0.00048887 0.00016777
1.6525 0.0071991 0.00080114 0.00032915
1.6615 0.0052136 0.00064885 0.00022917
1.6705 0.0033192 0.00048512 0.00014244
1.6795 0.0048848 0.000645 0.00021773
1.7065 0.0038047 0.00044566 0.00016535
1.7155 0.0037713 0.00046666 0.0001634
1.7245 0.0036762 0.0005411 0.00016255
