Measurement E12M74

You are not logged in.

Experiment: E1D and E6A runs CLAS data, 2005

Spokespersons: M. Osipenko

Publications:

Quantity measured: F2, dimensionless
Proton structure function.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: inclusive, polarization: none

Q2 : 3.975 GeV2
W : 1.60502875154932 — 2.90611414840964 GeV
xb : 0.4465 — 1.3105

Observable quantity measured (Y axis): F2, dimensionless

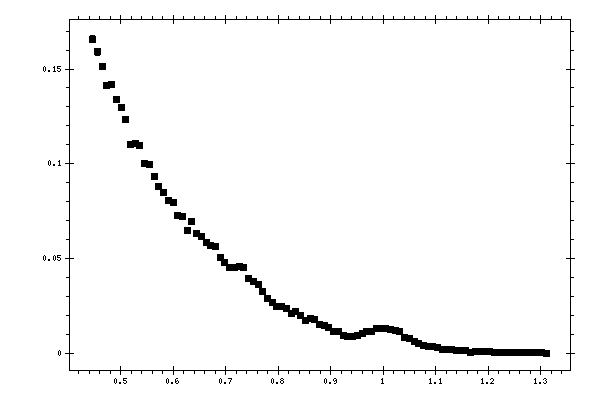

Plot measurement data

Parameter (X axis): x, dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

x,
dimensionless 		F2,
dimensionless 		Data errors,
dimensionless 		Systematic errors,
dimensionless
0.4465 0.16584 0.0016701 0.012355
0.4555 0.15908 0.0017214 0.011823
0.4645 0.15116 0.0014831 0.011607
0.4735 0.14119 0.0014152 0.010644
0.4825 0.14196 0.0014482 0.010613
0.4915 0.13418 0.0014164 0.0099953
0.5005 0.1295 0.0014138 0.0096202
0.5095 0.12339 0.0013781 0.0091376
0.5185 0.10997 0.0012271 0.0080917
0.5275 0.1108 0.0013404 0.0081734
0.5365 0.10971 0.0013461 0.0080871
0.5455 0.099972 0.0013 0.0073432
0.5545 0.099786 0.0013954 0.0073077
0.5635 0.093451 0.0013741 0.0068585
0.5725 0.087867 0.0013703 0.006454
0.5815 0.084798 0.0013546 0.006242
0.5905 0.080536 0.0014382 0.0059369
0.5995 0.079544 0.0013667 0.0058382
0.6085 0.072919 0.0012687 0.0053692
0.6175 0.07241 0.0013865 0.0053582
0.6265 0.064856 0.0012332 0.0047624
0.6355 0.069631 0.0013409 0.0051443
0.6445 0.063334 0.001344 0.0046656
0.6535 0.061771 0.001411 0.0045583
0.6625 0.05824 0.0012438 0.0042821
0.6715 0.056793 0.0013162 0.0041783
0.6805 0.056099 0.0012074 0.0041236
0.6895 0.050655 0.0012508 0.0037197
0.6985 0.048128 0.001177 0.0035338
0.7075 0.045421 0.0012401 0.0033344
0.7165 0.045316 0.0012246 0.0033303
0.7255 0.045608 0.0011148 0.0033582
0.7345 0.045025 0.0011574 0.0033155
0.7435 0.039478 0.0011531 0.0029002
0.7525 0.03801 0.001204 0.002795
0.7615 0.036192 0.0011015 0.0026587
0.7705 0.032644 0.00099718 0.0023991
0.7795 0.028929 0.0010277 0.0021317
0.7885 0.026821 0.0009348 0.0019761
0.7975 0.024787 0.0010359 0.0018295
0.8065 0.024649 0.00094507 0.0018149
0.8155 0.023708 0.00084835 0.0017443
0.8245 0.020784 0.00089408 0.0015305
0.8335 0.022011 0.00081916 0.001621
0.8425 0.019725 0.00081239 0.0014539
0.8515 0.017365 0.00076107 0.0012851
0.8605 0.018361 0.00085497 0.0013682
0.8695 0.017786 0.00084397 0.0013204
0.8785 0.015199 0.00073949 0.0011215
0.8875 0.014797 0.00078438 0.001097
0.8965 0.013653 0.00074137 0.0010085
0.9055 0.011419 0.00067648 0.00084003
0.9145 0.011241 0.00056345 0.00082888
0.9235 0.009278 0.00047721 0.00067596
0.9325 0.0088291 0.00057651 0.00064048
0.9415 0.0090513 0.00050348 0.00066001
0.9505 0.0091376 0.00052671 0.00066656
0.9595 0.010171 0.00052949 0.00074207
0.9685 0.011374 0.0005921 0.00083648
0.9775 0.011543 0.00076406 0.0008511
0.9865 0.013114 0.00072853 0.00097355
0.9955 0.013161 0.00076368 0.00097712
1.0045 0.012898 0.00077779 0.00095476
1.0135 0.012418 0.00091316 0.00092528
1.0225 0.011883 0.00076543 0.00088272
1.0315 0.011605 0.00077192 0.00086237
1.0405 0.0082322 0.00063138 0.00060779
1.0495 0.0078772 0.00063684 0.00058159
1.0585 0.0061447 0.00053082 0.00045511
1.0675 0.0052219 0.00062114 0.00038104
1.0765 0.004099 0.00063068 0.00030368
1.0855 0.0036873 0.00038236 0.00026913
1.0945 0.0033681 0.00036532 0.00024665
1.1035 0.0028854 0.00033318 0.00021083
1.1125 0.0021716 0.00027579 0.00015839
1.1215 0.0021638 0.00027704 0.0001578
1.1305 0.0017361 0.00024552 0.00012595
1.1395 0.0013277 0.00020248 9.5929e-05
1.1485 0.0012333 0.00020846 8.9864e-05
1.1575 0.0011699 0.00019233 8.4488e-05
1.1665 0.00052966 0.00035196 3.8572e-05
1.1755 0.00080978 0.0001653 5.8458e-05
1.1845 0.00078036 0.00016637 5.684e-05
1.1935 0.00076664 0.00015333 5.5219e-05
1.2025 0.0008297 0.00018553 6.0384e-05
1.2115 0.00045439 0.000137 3.3212e-05
1.2205 0.00061114 0.00015779 4.4654e-05
1.2295 0.00037927 0.00011994 2.7864e-05
1.2385 0.00048061 0.00014491 3.4838e-05
1.2475 0.00054941 0.0001586 4.1196e-05
1.2565 0.00028264 0.00011539 2.0387e-05
1.2655 0.00019473 7.95e-05 1.4036e-05
1.2745 0.0002483 0.00010137 1.7779e-05
1.2835 0.00041123 0.00013708 2.9824e-05
1.2925 0.00025688 0.00010487 1.8451e-05
1.3015 0.00031761 0.00014204 2.3985e-05
1.3105 8.4583e-05 5.9809e-05 6.0828e-06
