Measurement E12M99

You are not logged in.

Experiment: E1D and E6A runs CLAS data, 2005

Spokespersons: M. Osipenko

Publications:

M. Osipenko, G. Ricco, S. Simula, M. Battaglieri, M. Ripani, and CLAS Collaboration Measurement of the Deuteron Structure Function F2 in the Resonance Region and Evaluation of Its Moments // hep-ex/0506004
M. Osipenko, G. Ricco, S. Simula, M. Battaglieri, M. Ripani, and CLAS Collaboration The deuteron structure function F2 with CLAS // CLAS-NOTE 2005-013 and hep-ex/0507098

Quantity measured: F₂, dimensionless
Proton structure function.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: inclusive, polarization: none

Q² :	5.225 GeV²
W :	1.61423640889009 — 2.55240991946568 GeV
x_b :	0.6355 — 1.2115

Observable quantity measured (Y axis): F₂, dimensionless

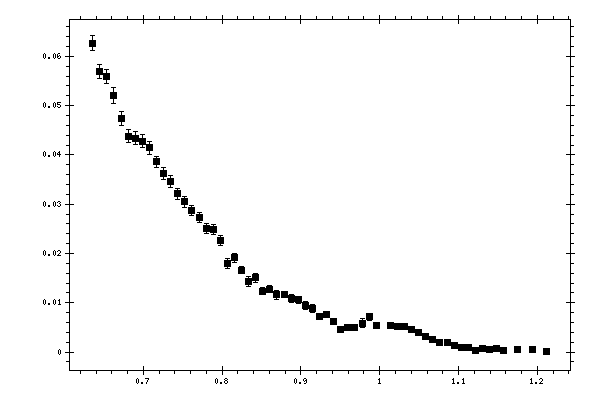

Plot measurement data

Parameter (X axis): x, dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

x, dimensionless	F₂, dimensionless	Data errors, dimensionless	Systematic errors, dimensionless
0.6355	0.062656	0.0015126	0.0059397
0.6445	0.056937	0.0014775	0.0053879
0.6535	0.055977	0.0014681	0.0052849
0.6625	0.051997	0.0016135	0.0048981
0.6715	0.047403	0.0014257	0.0044645
0.6805	0.043826	0.0012609	0.0041199
0.6895	0.043387	0.0013141	0.004083
0.6985	0.042795	0.0013016	0.004025
0.7075	0.041445	0.0012982	0.0038987
0.7165	0.038601	0.0011548	0.0036265
0.7255	0.036261	0.0012925	0.0034099
0.7345	0.034631	0.0011615	0.0032505
0.7435	0.032112	0.0011471	0.0030175
0.7525	0.03052	0.0011222	0.0028665
0.7615	0.028824	0.0010046	0.0027059
0.7705	0.027332	0.0010334	0.0025679
0.7795	0.025039	0.0010032	0.0023498
0.7885	0.024789	0.001014	0.0023259
0.7975	0.022708	0.00098	0.0021312
0.8065	0.018048	0.0010034	0.0016914
0.8155	0.019114	0.00098127	0.0017918
0.8245	0.01665	0.00078372	0.0015599
0.8335	0.014371	0.0010165	0.0013466
0.8425	0.015046	0.00084495	0.0014115
0.8515	0.012397	0.00075715	0.0011596
0.8605	0.012774	0.00069814	0.0011955
0.8695	0.011609	0.00084899	0.0010874
0.8785	0.011688	0.00068177	0.0010937
0.8875	0.010808	0.00082443	0.0010154
0.8965	0.010581	0.00072507	0.00099261
0.9055	0.0094712	0.00085858	0.00088825
0.9145	0.0087891	0.00082758	0.00082206
0.9235	0.0071738	0.00057253	0.0006675
0.9325	0.0075395	0.0005942	0.00070326
0.9415	0.0063096	0.00051178	0.00058543
0.9505	0.0045314	0.00051249	0.00042137
0.9595	0.0049869	0.00045715	0.00046346
0.9685	0.0049933	0.00065292	0.00046437
0.9775	0.0058636	0.00086448	0.00054996
0.9865	0.0072035	0.00073141	0.00067358
0.9955	0.0053621	0.00062333	0.00050464
1.0135	0.0053949	0.00056867	0.0005061
1.0225	0.0052282	0.00058822	0.00049255
1.0315	0.0052806	0.00056613	0.00049487
1.0405	0.0046397	0.00054303	0.0004347
1.0495	0.0039553	0.00048321	0.0003729
1.0585	0.0032121	0.00042177	0.00030006
1.0675	0.00257	0.00039656	0.0002423
1.0765	0.0019599	0.00033128	0.00018182
1.0855	0.0019029	0.00032164	0.00017736
1.0945	0.0013108	0.00026216	0.00012237
1.1035	0.0010012	0.00023599	9.3491e-05
1.1125	0.0010021	0.00022407	9.3809e-05
1.1215	0.00036537	0.00012179	3.3807e-05
1.1305	0.00068195	0.00019686	6.3369e-05
1.1395	0.00056011	0.00016888	5.1998e-05
1.1485	0.00066876	0.00017267	6.1905e-05
1.1575	0.00024164	0.00044678	2.2368e-05
1.1755	0.00043282	0.00015302	4.0463e-05
1.1935	0.00045935	0.00017362	4.3754e-05
1.2115	0.00011519	6.6506e-05	1.0682e-05
