Measurement E15M19

You are not logged in.

Experiment: E99-105, 2002

Spokespersons: M. Garçon, M. Guidal, E. S. Smith

Measurement comment: Virtual photon polarization parameter ε = 0.74. Errors include statistics and point-to-point sytematics, added in quadrature.

Publication:

Quantity measured: dσ/dt, mcbn/GeV2
Differential cross section over Mandelstam variable t.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: ω p, polarization: none

Q2 : 2.35 GeV2
W : 2 GeV
xb : 0.43
ε : 0.74

Observable quantity measured (Y axis): dσ/dt, mcbn/GeV2

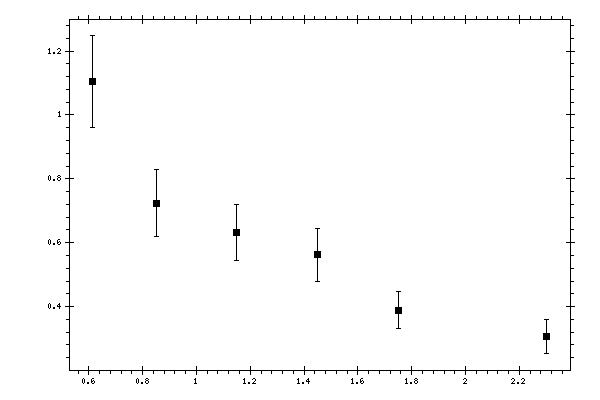

Plot measurement data

Parameter (X axis): -t, GeV2

Click here to get data in text file, delimited with tabs.

Measured data:

-t,
GeV2
dσ/dt,
mcbn/GeV2
Data errors,
mcbn/GeV2
0.6143656 1.103765 0.1438912
0.85 0.7239159 0.1052594
1.15 0.6334055 0.08757872
1.45 0.5623891 0.08338728
1.75 0.3883672 0.05820126
2.3 0.306423 0.05197145
