Measurement E15M50

You are not logged in.

Experiment: E99-105, 2002

Spokespersons: M. Gar�on, M. Guidal, E. S. Smith

Measurement comment: Virtual photon polarization parameter ε = 0.43. Errors include statistics and point-to-point sytematics, added in quadrature.

Publication:

L. Morand, D. Dore, M. Gar�on, M. Guidal, J.-M. Laget, S. Morrow, F. Sabatie, E. Smith, and CLAS collaboration Deeply virtual and exclusive electroproduction of omega mesons // hep-ex/0504057

Quantity measured: dσ/dφ, mcbn/rad
Differential cross section.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: ω p, polarization: none

Q² :	2.95 GeV²
W :	2.43 GeV
x_b :	0.37
ε :	0.43

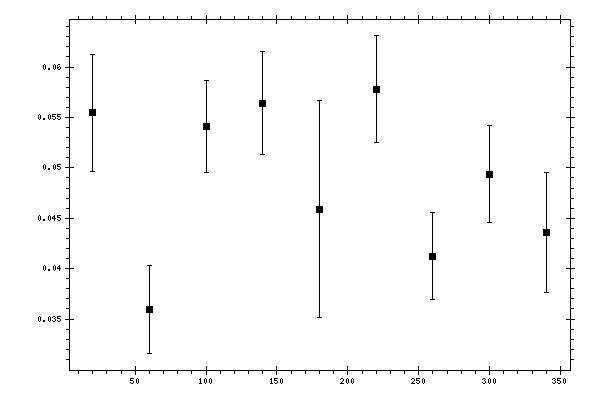

Fit φ dependence:

Observable quantity measured (Y axis): dσ/dφ, mcbn/rad
Plot measurement data

Parameter (X axis): φ, deg

Click here to get data in text file, delimited with tabs.

Click here to get calculated fit coefficients in text file, delimited with tabs.

Measured data:

φ, deg	dσ/dφ, mcbn/rad	Data errors, mcbn/rad
20	0.05545899	0.005831496
60	0.03595665	0.004339959
100	0.05406489	0.004568791
140	0.05643519	0.005136971
180	0.04589264	0.01078733
220	0.05779618	0.005300819
260	0.04123401	0.004307651
300	0.04935227	0.004805659
340	0.04359759	0.005990511
