Measurement E15M57

You are not logged in.

Experiment: E99-105, 2002

Spokespersons: M. Gar�on, M. Guidal, E. S. Smith

Measurement comment: Virtual photon polarization parameter ε = 0.30. Errors include statistics and point-to-point sytematics, added in quadrature.

Publication:

L. Morand, D. Dore, M. Gar�on, M. Guidal, J.-M. Laget, S. Morrow, F. Sabatie, E. Smith, and CLAS collaboration Deeply virtual and exclusive electroproduction of omega mesons // hep-ex/0504057

Quantity measured: dσ/dφ, mcbn/rad
Differential cross section.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: ω p, polarization: none

Q² :	3.807 GeV²
W :	2.41 GeV
x_b :	0.436
ε :	0.3

Fit φ dependence:

Observable quantity measured (Y axis): dσ/dφ, mcbn/rad

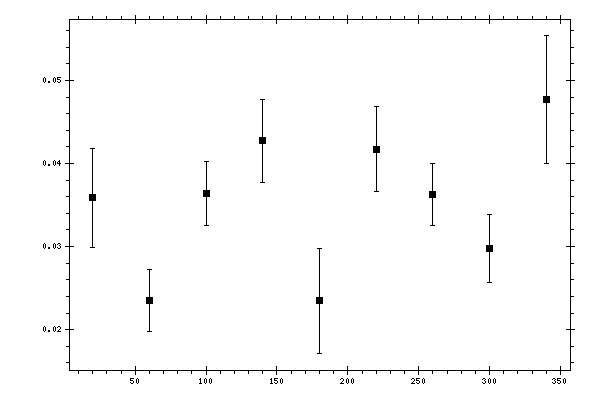

Plot measurement data

Parameter (X axis): φ, deg

Click here to get data in text file, delimited with tabs.

Click here to get calculated fit coefficients in text file, delimited with tabs.

Measured data:

φ, deg	dσ/dφ, mcbn/rad	Stat. error, mcbn/rad
20	0.03586536	0.005974407
60	0.02352927	0.00375045
100	0.036362	0.003871197
140	0.04273996	0.005015234
180	0.02347946	0.006298701
220	0.04171737	0.005107833
260	0.03630449	0.00371846
300	0.02980014	0.0040676
340	0.04769532	0.007664154
