Measurement E154M10

You are not logged in.

Experiment: eg1-dvcs, 2009

Spokespersons: A. Kim

Measurement comment: Double spin asymmetry moments

Publication:

A. Kim et al. (CLAS Collaboration) Target and Double Spin Asymmetries of Deeply Virtual π0 Production with a Longitudinally Polarized Proton Target and CLAS // arXiv:1511.03338, submitted to Phys. Lett. B (2016)

Quantity measured: A_LL^const,
Double single spin asymmetry moment
Beam: e, polarization: polarized
Target: p (Z=1, A=1), polarization: longitudinal
Final state: π⁰p, polarization: none

Q² :	2.83 GeV²
x_b :	0.4

Observable quantity measured (Y axis): A_LL^const,

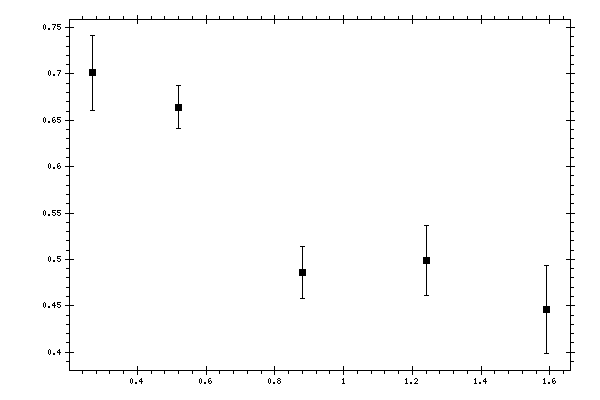

Plot measurement data

Parameter (X axis): -t, (GeV/c)^2

Click here to get data in text file, delimited with tabs.

Measured data:

-t, (GeV/c)^2	A_LL^const	Data errors	Systematic errors
0.27	0.701	0.04	0.059
0.52	0.664	0.023	0.032
0.88	0.486	0.028	0.013
1.24	0.499	0.038	0.016
1.59	0.446	0.047	0.034
