Measurement E154M12

You are not logged in.

Experiment: eg1-dvcs, 2009

Spokespersons: A. Kim

Publication:

A. Kim et al. (CLAS Collaboration) Target and Double Spin Asymmetries of Deeply Virtual π0 Production with a Longitudinally Polarized Proton Target and CLAS // arXiv:1511.03338, submitted to Phys. Lett. B (2016)

Quantity measured: A_LL^cos φ,
Double single spin asymmetry moment
Beam: e, polarization: polarized
Target: p (Z=1, A=1), polarization: longitudinal
Final state: π⁰p, polarization: none

Q² :	2.83 GeV²
x_b :	0.4

Observable quantity measured (Y axis): A_LL^cos φ,

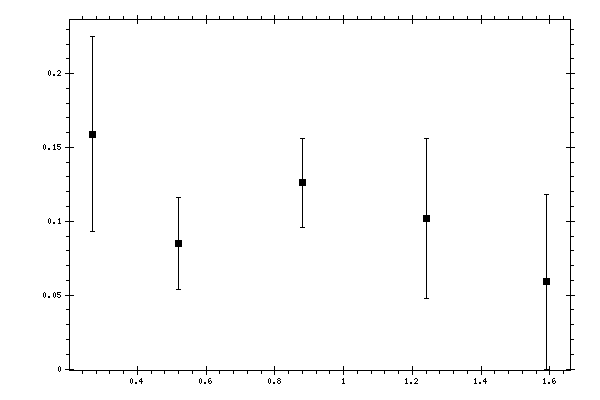

Plot measurement data

Parameter (X axis): -t, (GeV/c)^2

Click here to get data in text file, delimited with tabs.

Measured data:

-t, (GeV/c)^2	A_LL^cos φ	Data errors
0.27	0.159	0.066
0.52	0.085	0.031
0.88	0.126	0.03
1.24	0.102	0.054
1.59	0.059	0.059
