Parameter (X axis): θ(π−), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcb/rad
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.75 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcb/rad
Parameter (X axis): θ(π−), deg |
Click here to get data in text file, delimited with tabs.

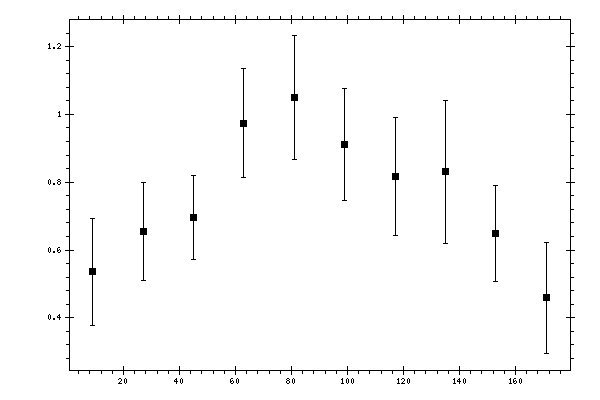

Measured data:
|
θ(π−),
deg |
dσ/d(−cos(θ(π−))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 0.535154 | 0.158503 |
| 27 | 0.654959 | 0.144725 |
| 45 | 0.697116 | 0.123727 |
| 63 | 0.974055 | 0.160798 |
| 81 | 1.04878 | 0.183005 |
| 99 | 0.910981 | 0.164691 |
| 117 | 0.816915 | 0.173473 |
| 135 | 0.830797 | 0.210981 |
| 153 | 0.648627 | 0.141966 |
| 171 | 0.458649 | 0.162883 |
