Parameter (X axis): θ(π−), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcb/rad
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.775 GeV | |
| Ebeam : | 5.75 GeV |
|

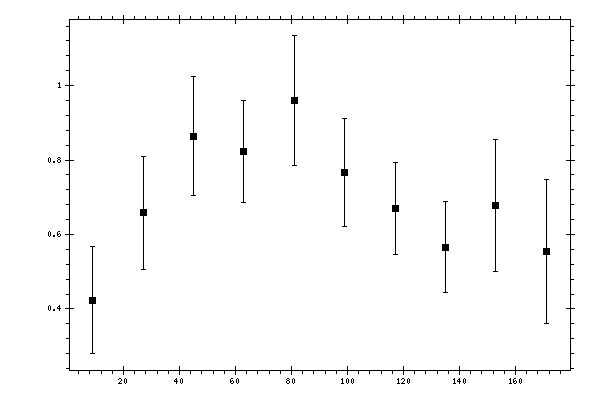

Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcb/rad
Parameter (X axis): θ(π−), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(π−),
deg |
dσ/d(−cos(θ(π−))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 0.423943 | 0.142625 |
| 27 | 0.657799 | 0.152618 |
| 45 | 0.864001 | 0.160475 |
| 63 | 0.822467 | 0.136416 |
| 81 | 0.959994 | 0.173627 |
| 99 | 0.766603 | 0.144675 |
| 117 | 0.668826 | 0.123552 |
| 135 | 0.565616 | 0.121774 |
| 153 | 0.677794 | 0.176822 |
| 171 | 0.553508 | 0.193453 |
