Parameter (X axis): M(π+,π−), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,π−), mcb/GeV
Differential cross section, where M(π+,π−) is invariant mass of π+ and π−.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.8 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π+,π−), mcb/GeV
Parameter (X axis): M(π+,π−), GeV |
Click here to get data in text file, delimited with tabs.

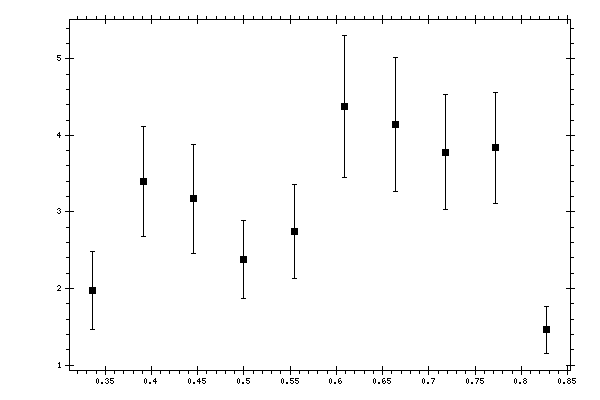

Measured data:
|
M(π+,π−),
GeV |
dσ/dM(π+,π−),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 0.336394 | 1.97242 | 0.509747 |
| 0.390904 | 3.39334 | 0.717926 |
| 0.445413 | 3.17087 | 0.712536 |
| 0.499922 | 2.3768 | 0.504916 |
| 0.55443 | 2.7449 | 0.619349 |
| 0.60894 | 4.37478 | 0.924846 |
| 0.663449 | 4.14624 | 0.874317 |
| 0.717957 | 3.77865 | 0.749248 |
| 0.772467 | 3.83877 | 0.725003 |
| 0.826976 | 1.46168 | 0.306002 |
